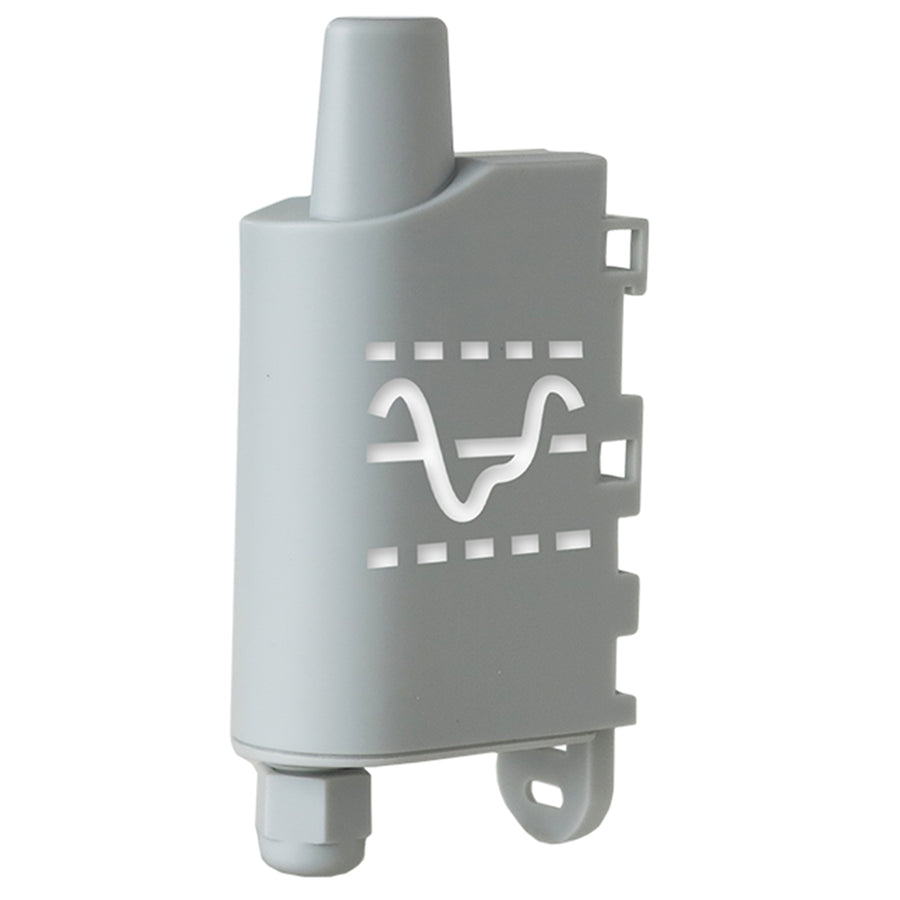

ARF8190BA-B01 - Adeunis LoRaWAN EU868 50A Current IoT Sensor with Analog Transceiver
ARF8190BA-B01 - Adeunis LoRaWAN EU868 50A Current IoT Sensor with Analog Transceiver
Features
The Adeunis ARF8190BA-B01 is a 50A Current Sensor with Analog Transceiver for LoRaWAN IoT EU863-870

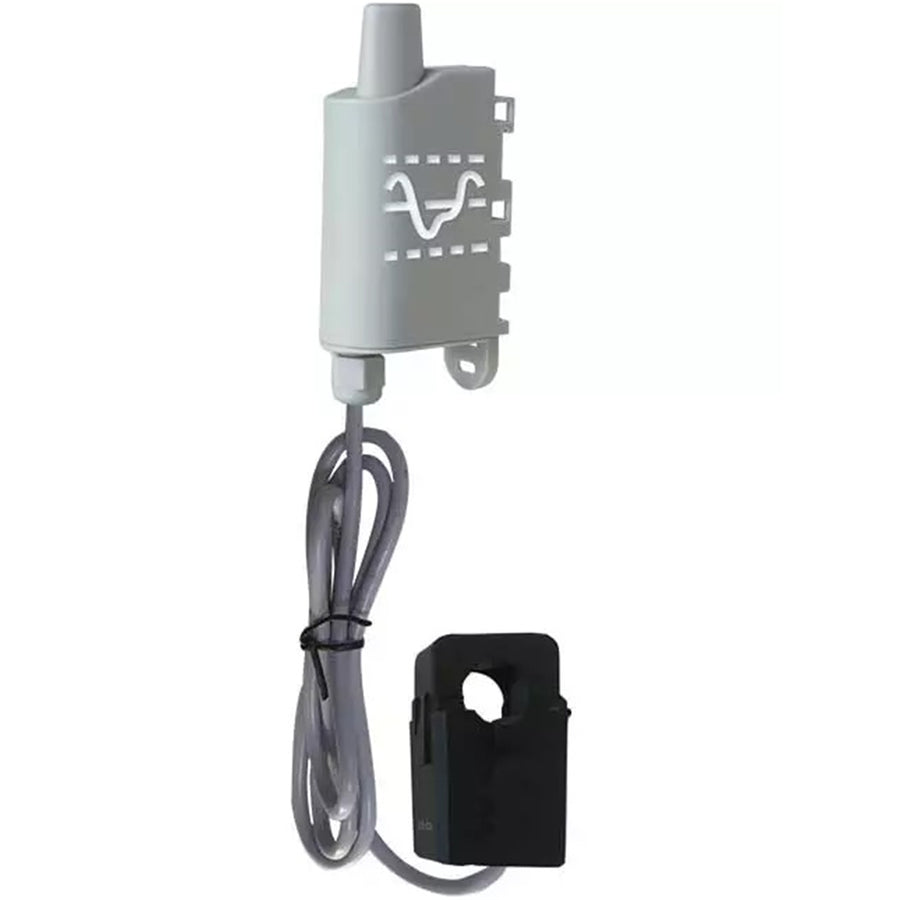

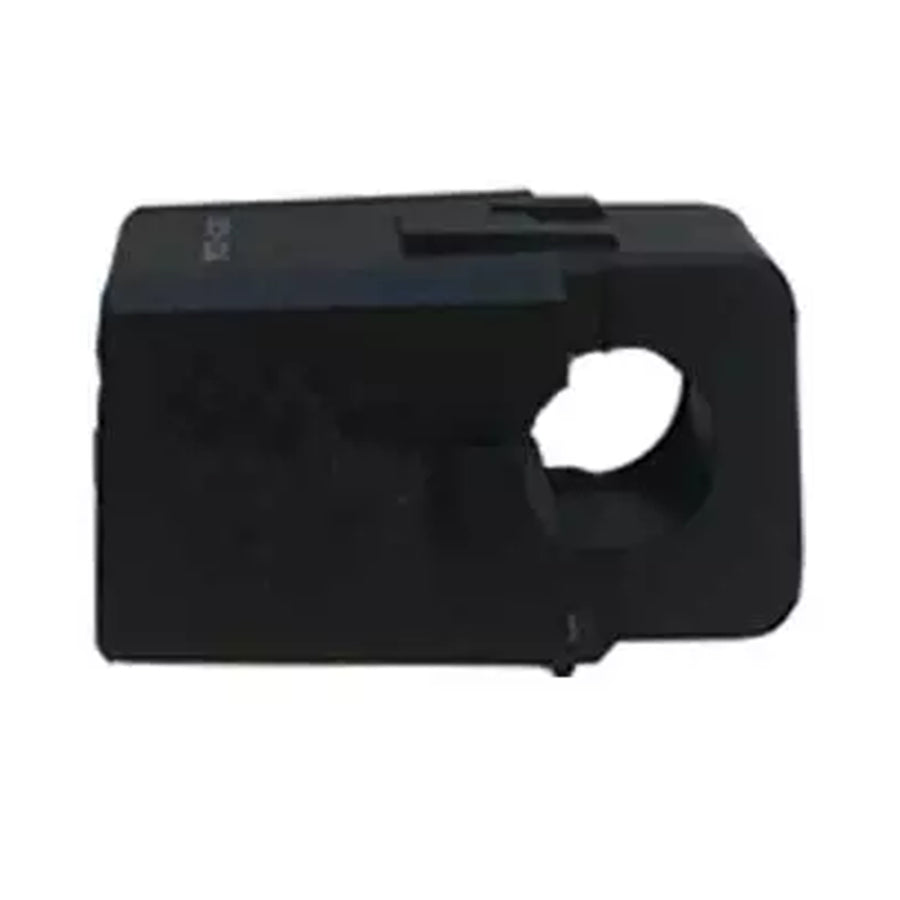

This is a ready to use product enabling you to measure the current and so monitor intensity thresholds. The package is composed of an ANALOG transceiver and a current transducer (50 A or 100 A, model dependant). Default settings have been established to simplify product installation by the user.
- Monitor to prevent in case of a malfunction
- Prevention in case of machine stoppages
- Control the production of energy
- Track and analyze consumption
- Compatible with EU863-870 LoRaWAN™ networks
- Ready to use solution
- Self powered
- Periodic emission of the measurement or event on parametric thresholds (Alert)
- Replaceable battery
FEATURES OF THE IoT SENSOR
MONITOR
- Monitor energy production
- Monitor and analyse consumptions
ALERT--AND/OR Trigger an alarm if:
- high and/or low threshold(s) exceeded
- event on one of the 2 dry contact input
Specifications
Technical Specifications
| Product Code | ARF8190BA-B01 |
|---|---|
| Operating temperature range | Current Transducer: -25°C / +60°C, ANALOG: -20°C to + 70°C |
| Fire resistance | UL94-V0 |
| Precision | +/- 2% |
| Cable Length | 70 cm |
| Max. Cable Diameter | 10 mm |
| Dimensions | 105 x 50 x 27 mm |

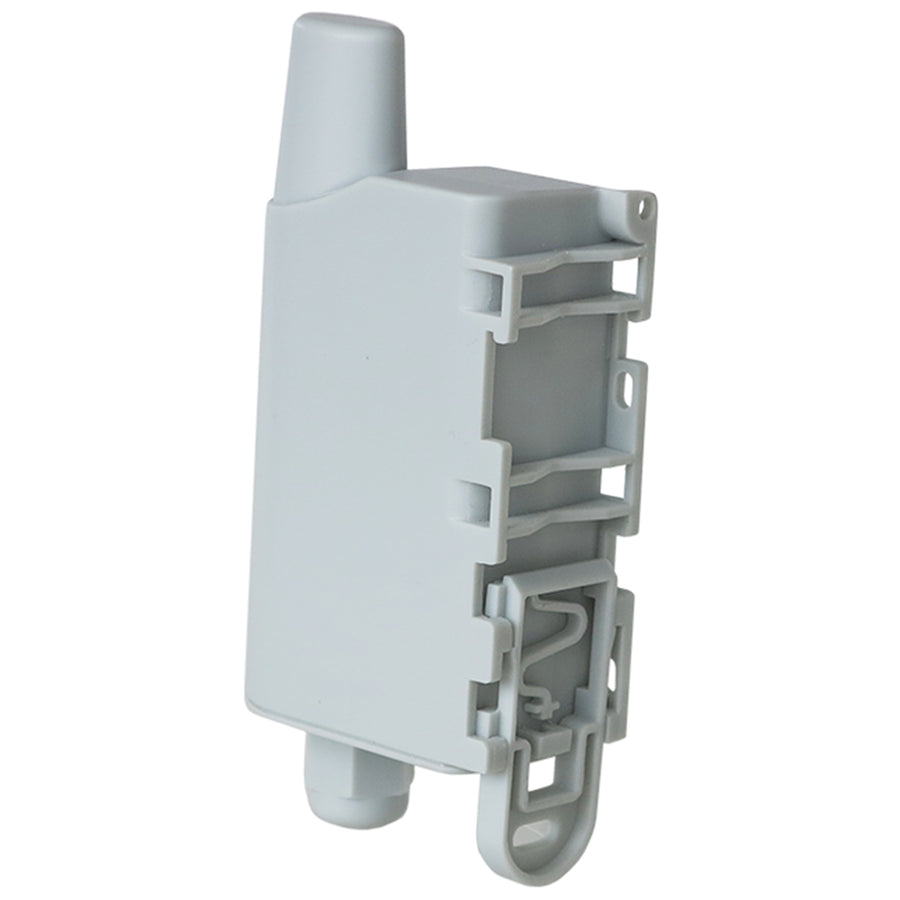

| Integrated fastening system | DIN rail, tube, wall, collar |
| Casing | IP67 |
| Zone | LoRaWAN: EU863-870 |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Adeunis |
|---|---|
| Product Type | B2B - IoT & Industrial |
| Weight | 0.5 kg |
