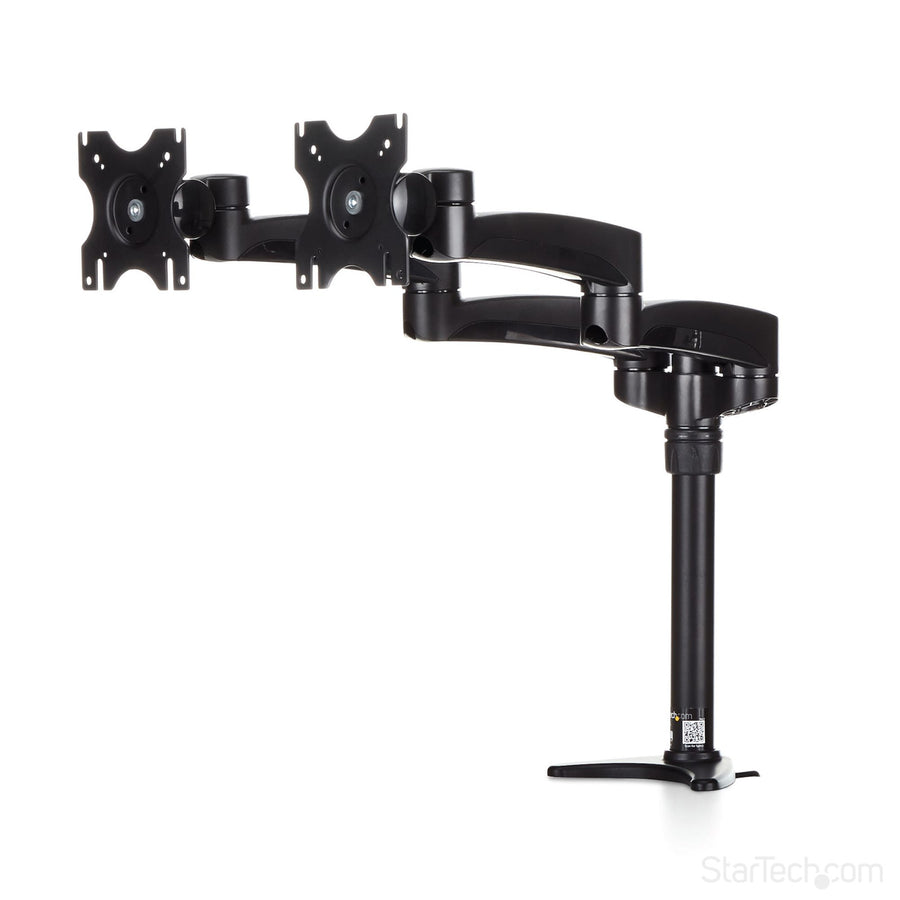

StarTech.com ARMDUAL Articulating Dual Monitor Arm
Features
Desk-Mount Dual Monitor Arm - Articulating
Monitor Mount | Desk/Grommet Mount | Height Adjustable | For 12" to 24" Monitors
Applications
- Mount two displays to your desk or table, using the desk clamp or grommet hole mount
- Set up two displays with easy adjustment for multi-user workstations

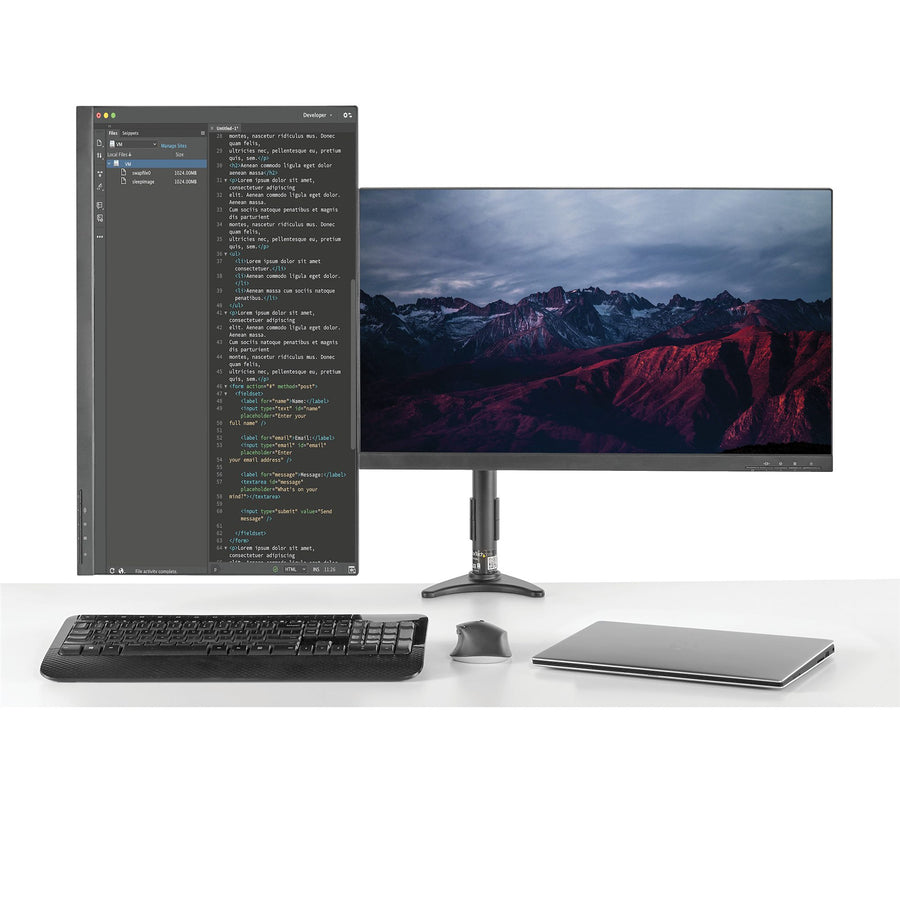

- Rotate displays to portrait orientation for web design and coding

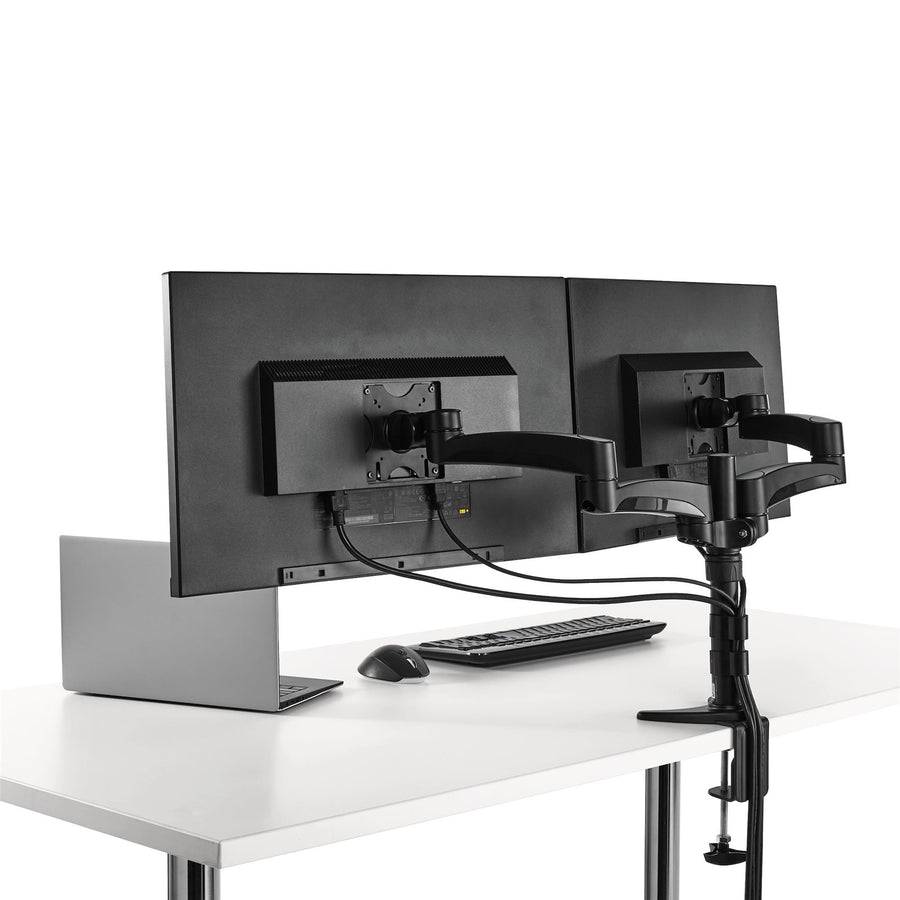

Enhance productivity while freeing up space. This desk mount dual monitor arm lets you mount two VESA (75x75, 100x100) displays to your desk or table, with extension, tilt, pan, swivel, pivot and height adjustments.

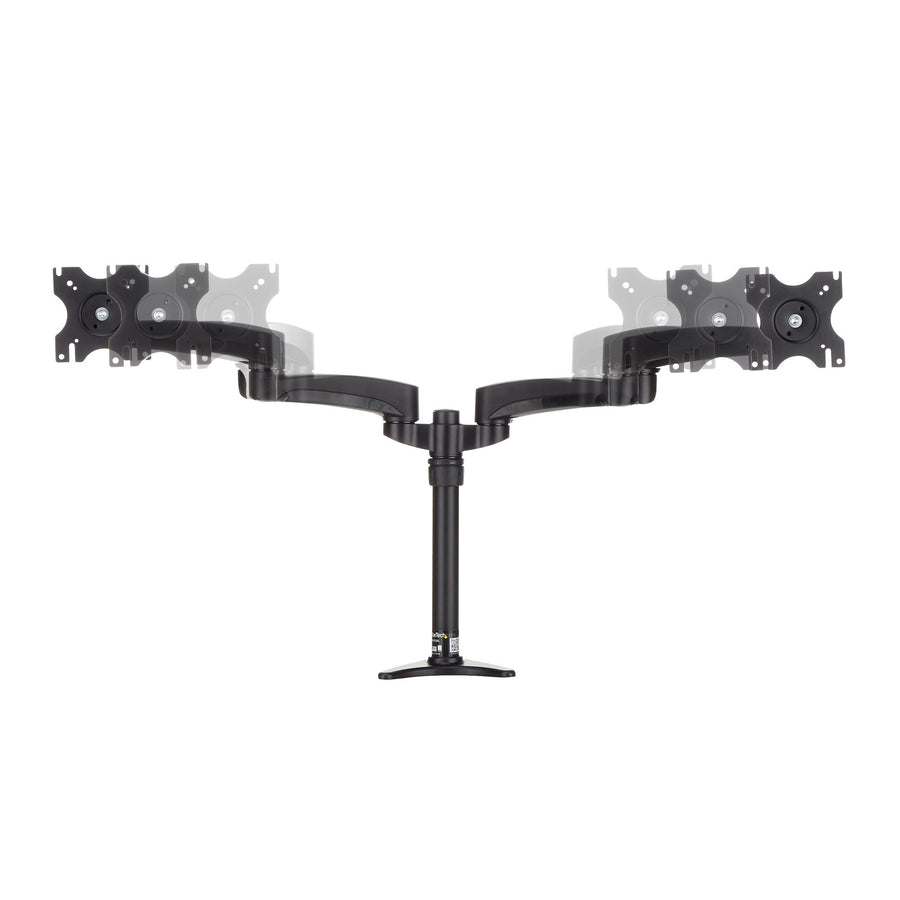

Wide Range of Motion for Optimum Viewing
The dual articulating monitor arms offer a wide range of motion on several axes, giving you the freedom to place your displays side-by-side and adjust the viewing angle. Tilt your monitors?+/-90 degrees and pan +/-90 degrees for ideal viewing.? For viewing longer pages or blocks of code without scrolling, the dual monitor arm also supports landscape to portrait display rotation for either monitor.
Create a More Ergonomic Workspace
Mounting your displays on a dual monitor arm above the desk surface enables you to adjust your display height, position and viewing angles easily for an ergonomic work environment. Work in?comfort,?and?reclaim valuable workspace on your desk?or table.
The dual monitor mount supports two VESA mount (75x75, 100x100) displays up to 24", with a maximum weight capacity of 30lbs (13.6kg) per arm. The computer monitor mount holds your displays with ease, and integrates a cable management channel to keep things neat.
Flexible Mounting Options
For added installation flexibility, the included mounting hardware can either clamp to the side of your desk / table or mount through a grommet hole, for a versatile dual-monitor mounting solution.

Specifications
Technical Specifications
| Articulating | Yes |
|---|---|
| # of Displays Supported | 2 |
| Mounting Options | Desk & Grommet Clamp |
| Wallmountable | No |
| VESA Hole Pattern(s) | 75x75 mm100x100 mm |
| Mounting Surface Thickness | Desk Clamp: Table Thickness 0.39 - 2.95 in. (10 - 75 mm)Grommet Clamp: Table Thickness 0.39 - 2.95 in. (10 - 75 mm)Grommet Mount Hole Size: 0.39 - 2.75 in. (10 - 70 mm) |
| Package Height | 6.3 in [16.0 cm] |
| Package Length | 22.8 in [58.0 cm] |
| Shipping (Package) Weight | 10.8 lb [4.9 kg] |
| Package Width | 12.8 in [32.5 cm] |
| Weight Capacity (Per Display) | 30.0 lb [13.6 kg] |
| Maximum Display Size | 24in |
| Height Adjustment | Yes |
| Maximum Arm Extension | 17.5 in [44.5 cm] |
| Display Tilt | +90° / - 90° |
| Display Swivel | +90° / - 90° |
| Swivel / Pivot | 360° around the support post180° at the shoulder360° at the elbow |
| Display Rotation | 360° |
| Product Height | 12.9 in [32.7 cm] |
| Product Length | 3.0 in [75.0 mm] |
| Weight of Product | 8.9 lb [4.0 kg] |
| Product Width | 32.8 in [83.4 cm] |
| Colour | Black |
| Material | Steel and Plastic |
| 2 - Included in Package | Articulating LCD Arms |
| 1 - Included in Package | Desk ClampGrommet PlateDEK |
| 2 - Included in Package | Cover Plates |
| 8 - Included in Package | SpacersM4x12mm Phillips ScrewsM4x25mm Phillips Screws |
| 2 - Included in Package | M6x12mm Phillips ScrewsM6 WashersCable Clip |
| 4 - Included in Package | Plastic Gasket Cushions |
| 1 - Included in Package | 2.5mm Allen Wrench4mm Allen Wrench6mm Allen WrenchInstruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Monitor Accessories |
| Weight | 4.821 kg |
