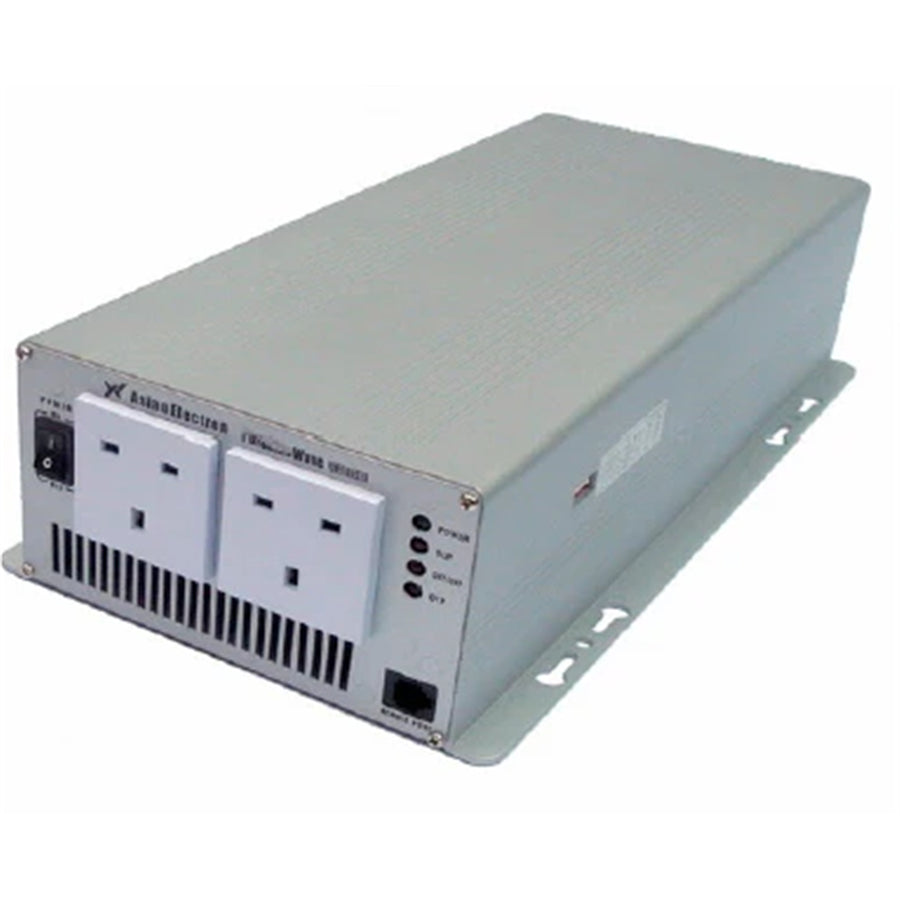

Asian Electron YK-PSQ24200E - I/P:24VDC,O/P:240VAC/50HZ, 2000W Pure Sinewave Inverter
Asian Electron YK-PSQ24200E - I/P:24VDC,O/P:240VAC/50HZ, 2000W Pure Sinewave Inverter
Features
Asian Electron Pure Sine Wave Inverter 2000W
- Pure sine wave output (THD < 3%) R Load
- Output frequency : 50 / 60Hz switch
- Loading & Temperature controlled cooling fan(standard)
- 3-speed cooling fan(optional)
- Advanced microprocessor
- Protection:
Input Undervoltage
Input Overvoltage
Overload
Short circuit
Low battery alarm
Over temperature
Utilities Application
Power tools - circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressors.
Office equipment - computers, printers, monitors, facsimile machines, scanner.
Household items - vacuum cleaners, fans, fluorescent and incandescent lights, shavers, sewing machines.
Kitchen appliances - microwave ovens, refrigerators and freezers, coffee makers, blenders, ice markers, toasters.
Industrial equipment - metal halide lamp, high - pressure sodium lamp.
Home entertainment electronics - television, VCRs, video games, stereos, musical instruments, satellite equipment.
Specifications
Technical Specifications
| Continuous Output Power | 2000W |
|---|---|
| Maximum Output Power | 2200W(3mins) |
| Surge Rating | 4000W |
| Input Voltage | 24V |
| Input Voltage Range | 20-32 VDC |
| DC Input over voltage alarm | 31VDC |
| DC Input over voltage shut down | 32.0 VDC |
| DC Input under voltage alarm | 21.0 VDC |
| DC Input under voltage shut down | 20.0VDC |
| Frequency | 50/60Hz ± 0.05%( Switch Selectable) |
| Peak Output Current | 38A |
| Efficiency (full load) | 84% |
| No Load Current Draw | 0.55A |
| Output Waveform | R Load Pure Sine Wave <3% THD |
| Output Voltage | 100/110/115/120V(Switch Selectable) RMS±3% |
| Protection | Overload, Short Circuit, Reverse Polarity (fuse), Input Undervoltage, Input Overvoltage, Over Temperature |
| LED light | Power, OLP, OVP/UVP, OTP |
| Safety | Comply with EN60950-1 |
| EMC | FCCEN 55022:2010+AC:2011, Class BEN 55024:2010IEC 61000-4-2 Ed. 2.0: 2008IEC 61000-4-3 Ed. 3.2: 2010IEC 61000-4-8 Ed. 2.0: 2009 |
| Remote Control | Optional |
| RS232 interface | Optional |
| 3-speed cooling fan | Optional |
| Operating Temperature Range | -20 °C to 50 °C |
| Storage Temperature Range | -30°C to 70°C |
| Cooling | Loading & Temperature controlled cooling fan |
| Dimensions | 370(L) x 188.6(W) x 94.2(H) mm |
| Weight | 5.3kgs |
