Asian Electron
Asian Electron YK-PSW12150E - 12VDC 1500watt Pure Sine Wave inverter
$865.34
Free shipping over $299
Genuine product
7-day returns

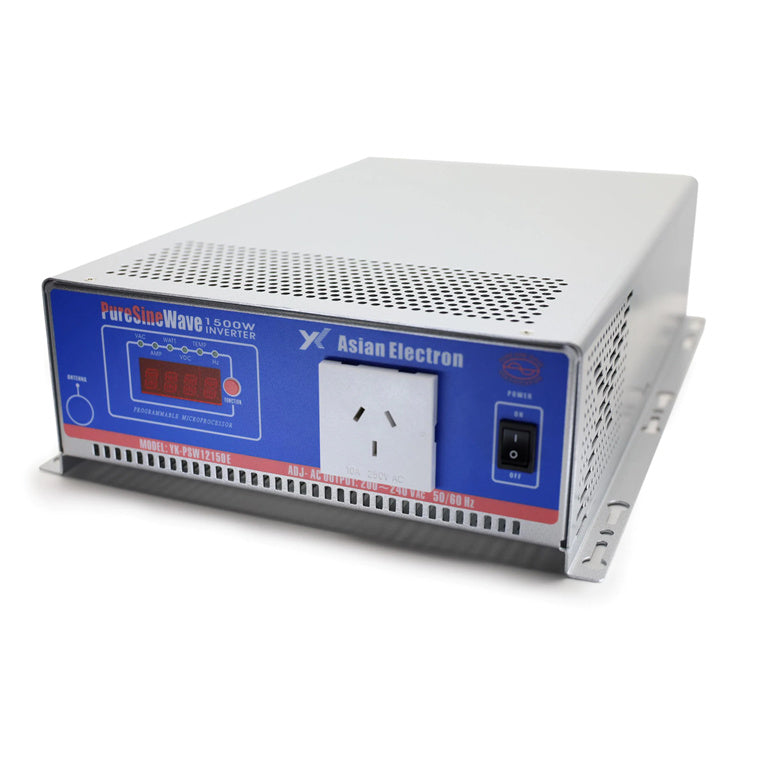

Asian Electron YK-PSW12150E - 12VDC 1500watt Pure Sine Wave inverter
Features
Asian Electron YK-PSW12150E 12VDC 1500watt Pure Sine Wave Inverter
Inverter Features:
-Pure sine wave output (THD < 3%) R Load
-Output frequency: 50 / 60Hz switch
-Remote control port / wire connection to PC
-Wired remote control
-Loading controlled cooling fan
-Advanced microprocessor
Protection:
-Input undervoltage
-Overload
-Short circuit
-Low battery alarm
-Input overvoltage
-Over temperature
Specifications
Technical Specifications
| Continuous Output Power | 1500W |
|---|---|
| Maximum Output Power (3mins) | 1650W |
| Surge Rating | 3000W |
| Input Voltage | 12V |
| Input Voltage Range | 10-16 VDC |
| Output Voltage | 200 / 220 / 230 / 240V +/- 2% |
| Frequency (Switch Selectable) | 50/60Hz +/- 0.05% |
| Peak Output Current | 11A |
| Efficiency (full load) | 87% |
| No Load Current Draw | 1.6A |
| Stand by Current Draw | ?1.5W Power Saving Mode |
| Output Waveform | Pure Sine Wave <3% THD (R Load) |
| Output Voltage adjustment | 200 ~ 240V (Tune VR) |
| Protection | Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under Input Voltage, Over Temperature. |
| Digital Display | OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz |
| Safety | Meet EN60950-1 |
| EMC | EN55022: A2:2003 (class B)EN55024: 2003EN61000-3-2: 2000EN61000-3-3: 1995/A1:2001IEC 61000-4-2:A2:2003IEC61000-4-3:2002/A1:2002IEC61000-4-4:2004IEC61000-4-6:A1:2004IEC61000-4-8:A1:2000 |
| Power Saving Recovery Time | 3 Minutes |
| Interface Control Port | RS-232C With Baud Rate 2400, 4800,9600,19200 (Switch Selectable) |
| Remote Control Unit | Optional (RF Remote Control) or (wire Control) |
| Operating Temperature Range | -30 to 60C |
| Storage Temperature Range | -30 to 70C |
| Dimensions | 413 mm (L) x 278 mm (W) x 102 mm (H) |
| Cooling | Thermostatically controlled cooling fan |
| Weight | 7.2 kgs |
