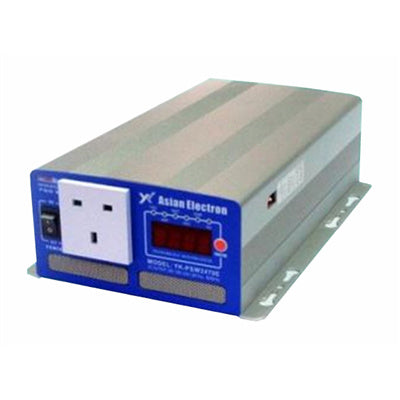

Asian Electron YK-PSW4870E - 48VDC 700watt Pure Sine Wave inverter
$606.94
Free shipping over $299
Genuine product
7-day returns
Asian Electron YK-PSW4870E - 48VDC 700watt Pure Sine Wave inverter
Features
Asian Electron YK-PSW4870E 48VDC 700watt Pure Sine Wave inverter
- Pure sine wave output (THD < 3%) R Load
- Output frequency : 50 / 60Hz switch
- RS - 232C interface / remote control port / wire connection to PC
- Wired remote control
- Loading and Temperature controlled cooling fan
- Compact size for convenient use and storage
- Advanced microprocessor
Protection :
- Input Undervoltage
- Input Overvoltage
- Overload
- Short circuit
- Low battery alarm
- Over temperature
Specifications
Technical Specifications
| Continuous Output Power | 700W |
|---|---|
| Maximum Output Power | 780W (3Min.) |
| Surge Rating | 1400W |
| Input Voltage | 48V |
| Input Voltage Range | 42-62VDC |
| DC Input Over Voltage Alarm | 61.0VDC |
| DC Input Over Voltage Shut-down | 62.0VDC |
| DC Input Under Voltage Alarm | 43.0VDC |
| DC Input Under Voltage Shut-down | 42.0VDC |
| Output Voltage | 200/220/230/240V(Switch Selectable)RMS±3% |
| Frequency | 50/60Hz ± 0.05% (Switch Selectable) |
| Peak Output Current | 6A |
| Efficiency (full load) | 94% |
| No Load Current Draw | 0.22A |
| Output Waveform | R Load Pure Sine Wave < 3% THD |
| Protection | Overload, Short Circuit, Reverse Polarity (fuse), Input Undervoltage, Input Overvoltage Over Temperature. |
| Safety | EN60950-1:2006 & IEC60950-1: 2005(2nd Edition) |
| EMC | EN55022:2010 /AC:2011 (Class B)EN55024: 2010EN61000-3-2: 2006+A1:2009+A2:2009EN61000-3-3: 2013IEC 61000-4-2:2008IEC61000-4-3:2006+A1:2007+A2:2010IEC61000-4-4:2012IEC61000-4-5:2005IEC61000-4-6:2008IEC61000-4-8:2009IEC61000-4-11:2004 |
| Digital Display | OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz |
| Interface Control Port | RS-232C With Baud Rate 2400, 4800, 9600,19200 (Switch Selectable) |
| Remote Control Unit | Optional |
| Operating Temperature Range | -20°C to 50°C |
| Storage Temperature Range | -30°C to 70°C |
| Cooling | Loading and Temperature controlled cooling fan |
| Dimensions | 298 (L) x 179 (W) x 81 (H) mm |
| Weight | 2.8 kgs |
