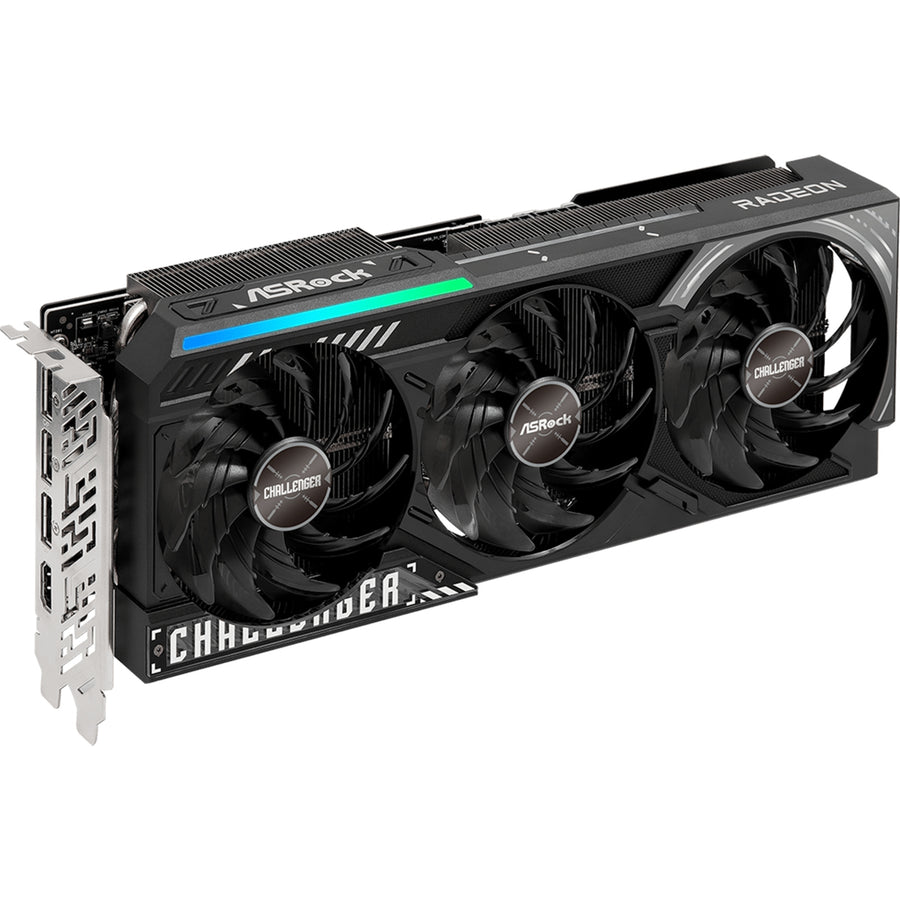

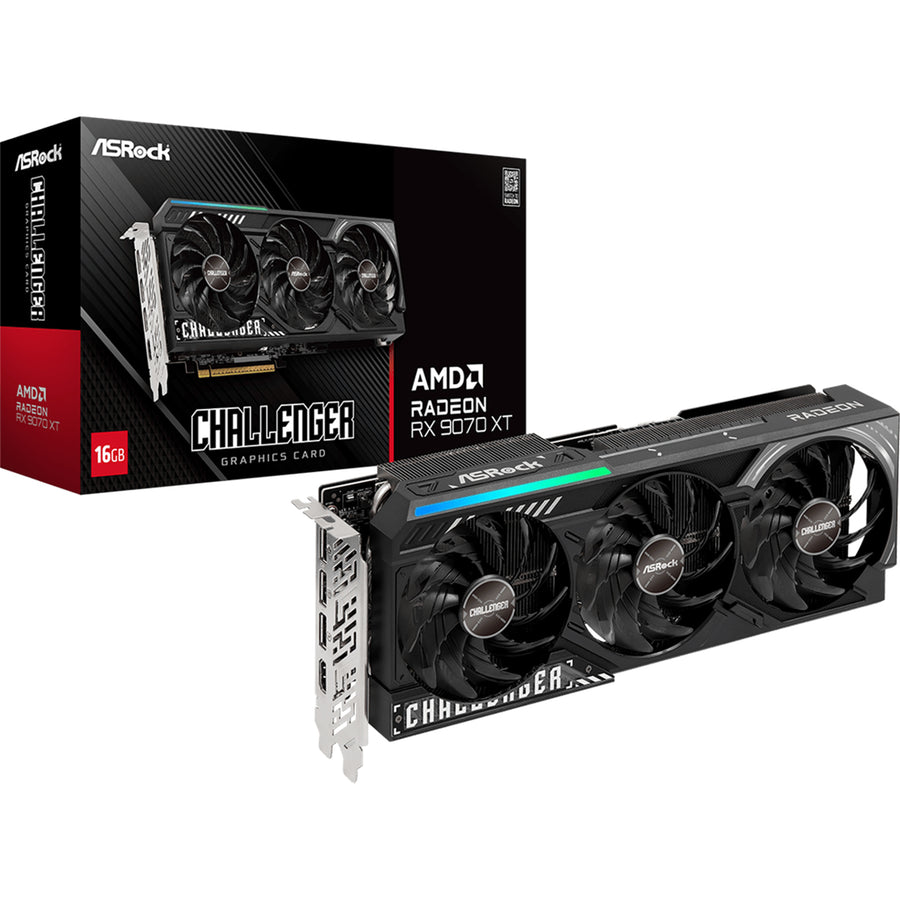

ASRock AMD Radeon RX 9070 XT Challenger 16GB GDDR6 Graphics Card

AMD Radeon™ RX 9070 XT Challenger 16GB

PRODUCT BRIEF:
Boost Clock* : Up to 2970 MHz / 20Gbps
Game Clock** : 2400 MHz / 20Gbps

KEY SPECIFICATION
AMD Radeon™ RX 9070 XT GPU
16GB GDDR6 on 256-Bit Memory Bus
AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT +2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express5.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 2.1a, 1x HDMI™ 2.1b

KEY SPECIFICATION
Triple Fan Design
Stylish Metal Backplate
LED Indicator
LED Switch
Striped Axial Fan
0db Silent Cooling
Super Alloy Graphic Card

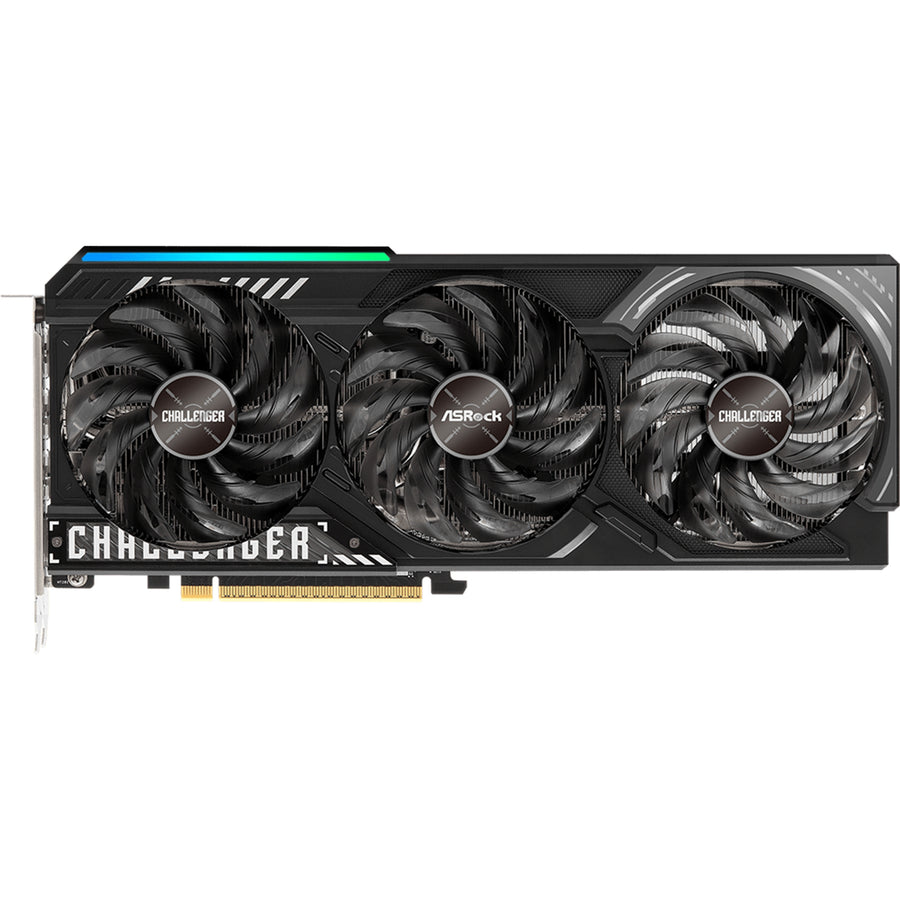

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

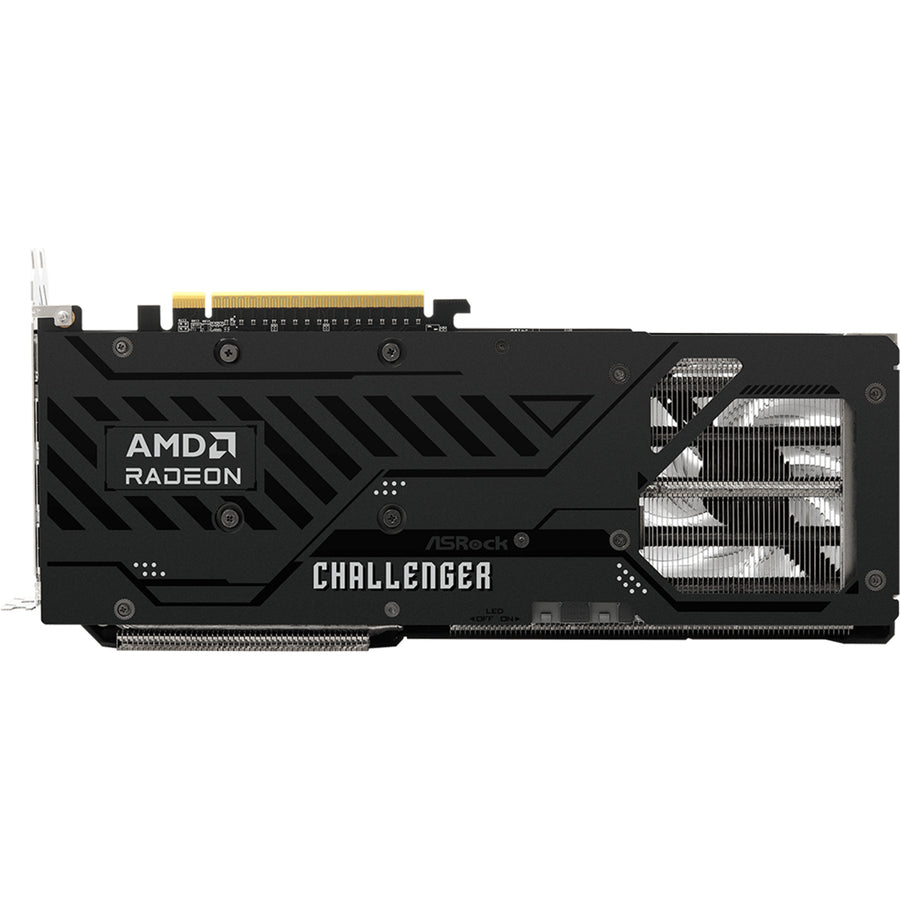

Stylish Metal Backplate

With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.



LED Indicator - More Decoration. More Beauty.

Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.



LED Switch - Switch on/off as you want.

You can switch LED on or off depends on the scenarios or your need.



Honeywell PTM7950 - Phase-change Thermal Pad

Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.



Striped Axial Fan - Designed For Enhanced Airflow.

ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.



0dB Silent Cooling - Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

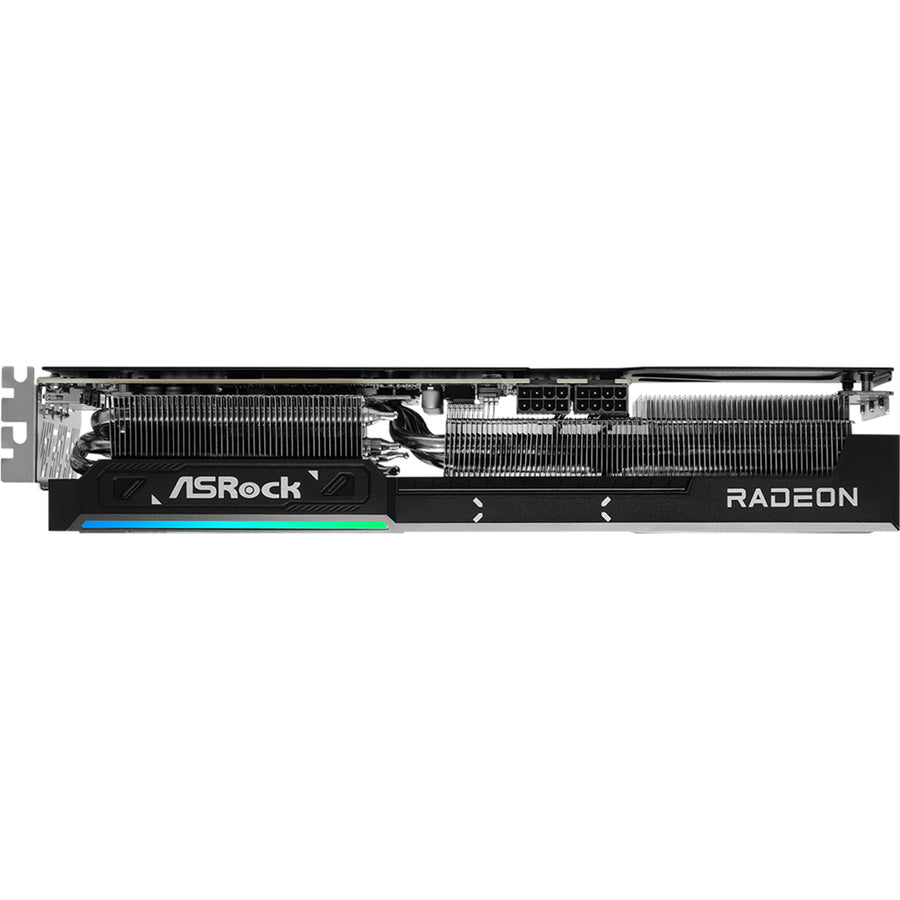

Ultra-fit Heatpipe - Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.



Nickel-plated Copper Base - Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.



High-density Metal Welding - Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.



Precise Screw Torque - Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.



Japanese SP-Cap

With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.



SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.



Premium Power Choke

Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.



2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.



High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.



ALL YOU NEED FOR ULTRA FAST GAMING

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.



SUPERPOWERED VISUALS ENHANCED WITH AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.



INSTANT PERFORMANCE FOR EVERY MOVE

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.



FUTURE READY TECH WITH AI

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
