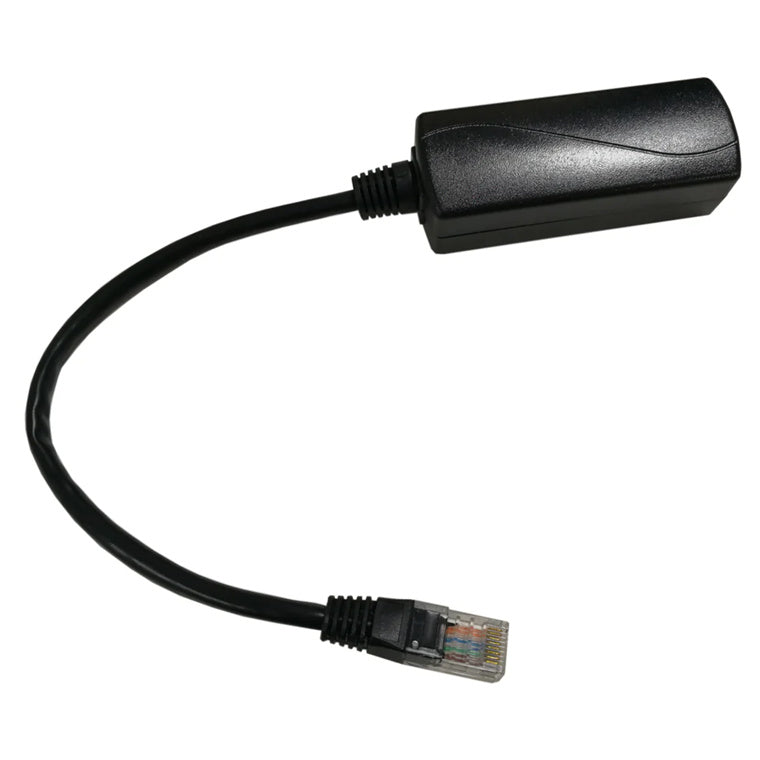

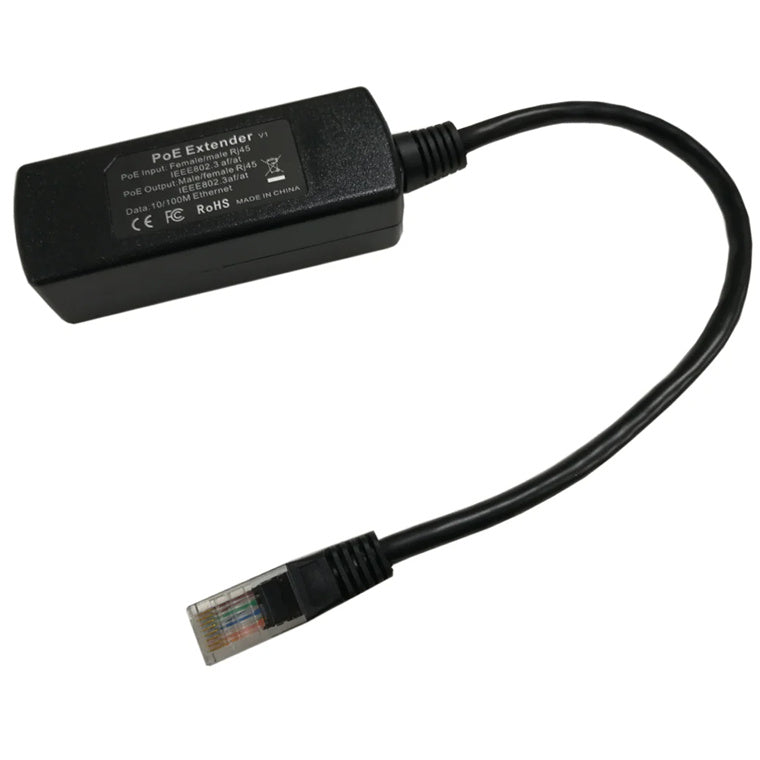

PoE World AT-Extender 802.3af/at Ethernet PoE Extender 10/100 Mbps
Features
This device extends PoE power and data for 100 meters past the standard. It allows power to be carried on Ethernet cabling with 802.3af/at, and have that power and data repeat another 100 meters. Compatible with PoE switches or passive injectors with any CAT5e, CAT6 or CAT7 Ethernet network cable.
Intended for use with 802.3af/at Compliant PoE switches and Injectors - this pass thru PoE solution maintains the remote device auto negotiation with the switch to activate power, and it uses some of that power to rebuild each data packet for error free re-transmission up to another 100 meters.
Specifications
Technical Specifications
| Brand | PoE World |
|---|---|
| Power and Data Source | RJ 45 PoE in - male or female |
| Data Speed | 10/100 Mbps |
| Power and Data Output | RJ45 PoE out - male or female |
| Input Voltage Max | Up to 57 volts |
| Power Supply | Powered after a client PoE device is attached, remains on without load |
| PoE Passthru | 802.3af or 802.3at |
| Internal Power Use | 500 mw |
| Operating Temperature | 0°C - 50°C |
| Ethernet Switch | IP175G as a 2 port, 802.3u fast low power switch |
| Vlan Support | Transparent |
| Dimensions | 95 x 24 x 31 mm plus 24 cm Ethernet cable |
| Brand | PoE |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
