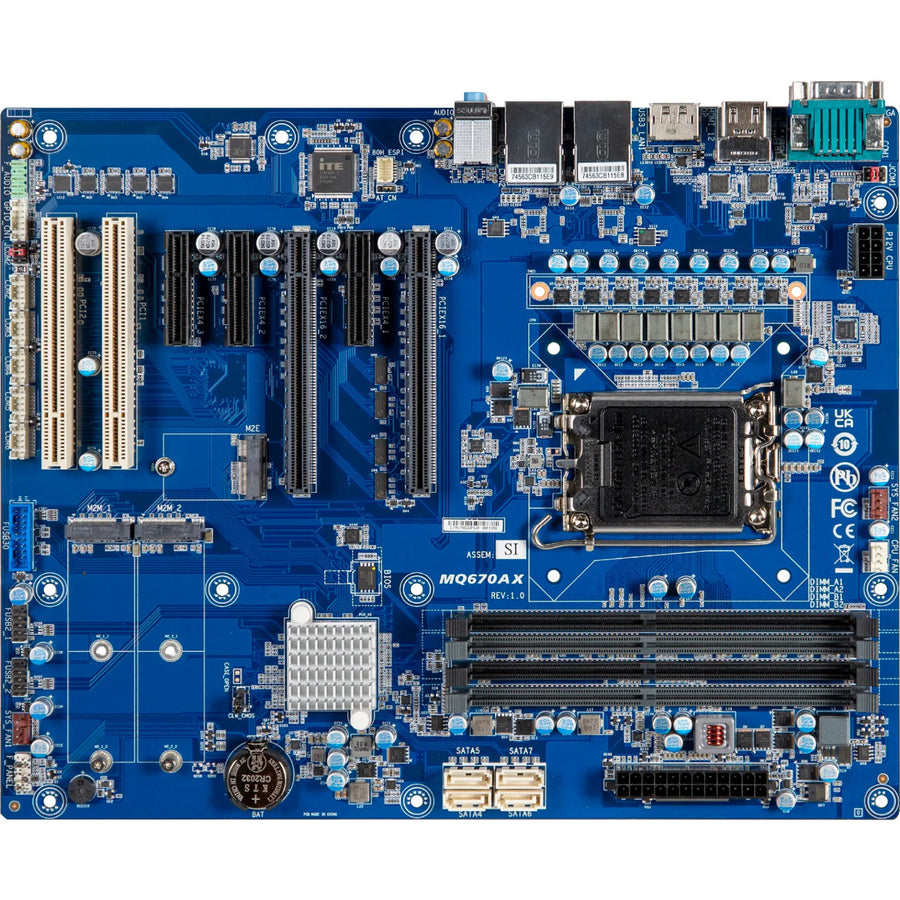

9MQ670AXMR-SI - ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
$575.64$586.66
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Key Features
ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
ATX form factor
Support 14th/13th/12th Generation Intel® Core™ Processors
Intel® Q670 Chipset
Dual Channel DDR4, 4 x DIMMs
2 x 2.5GbE LAN Ports
4 x SATA 6Gb/s Ports
Up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
10 x USB Ports
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
4 x COM Ports (RS-23
Specifications
Technical Specifications
| Form Factor | ATX305W x 244D (mm) |
|---|---|
| CPU | Support for 14th/13th/12th GenerationIntel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 packageTDP under 125W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® Q670 Chipset |
| Memory | 4 x DDR4 DIMM sockets, Max. Capacity 128 GBSupport Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x 2.5GbE LAN Ports (Intel® I226V & I226LM) |
| Video | Integrated Graphics Processor - depends on CPU:2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz1 x D-sub port, supporting a maximum resolution of 1920x1080 @60Hz(4 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 4 x SATA 6Gb/s Ports |
| RAID | RAID 0/1/5/10 |
| Expansion Slots | 1 x PCIe x16 (Gen 4x16)(PCIEX16_1)* The PCIEX16_1 slot shares bandwidth with the PCIEX16_2 slot.* The PCIEX16_1 slot operates at up to x8 mode when a device is installed in the PCIEX16_2 slot.1 x PCIe x16 (Gen 4x8)(PCIEX16_2)3 x PCIe x4 (Gen 3x4)2 x PCI1 x 2280/2242 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)(M2M_1)1 x 2280/2242 M.2 M-Key (PCIe Gen4x4)(M2M_2)1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x System fan headers1 x Front panel header1 x Front panel audio header4 x USB 2.0 headers2 x USB 3.2 Gen 1 headers1 x COM header (RS-232/422/485 & RI/5V/12V)4 x COM headers (RS-232)1 x GPIO (8 bits) & SMBus header1 x Clear CMOS jumper1 x Buzzer1 x AT/ATX mode select jumper |

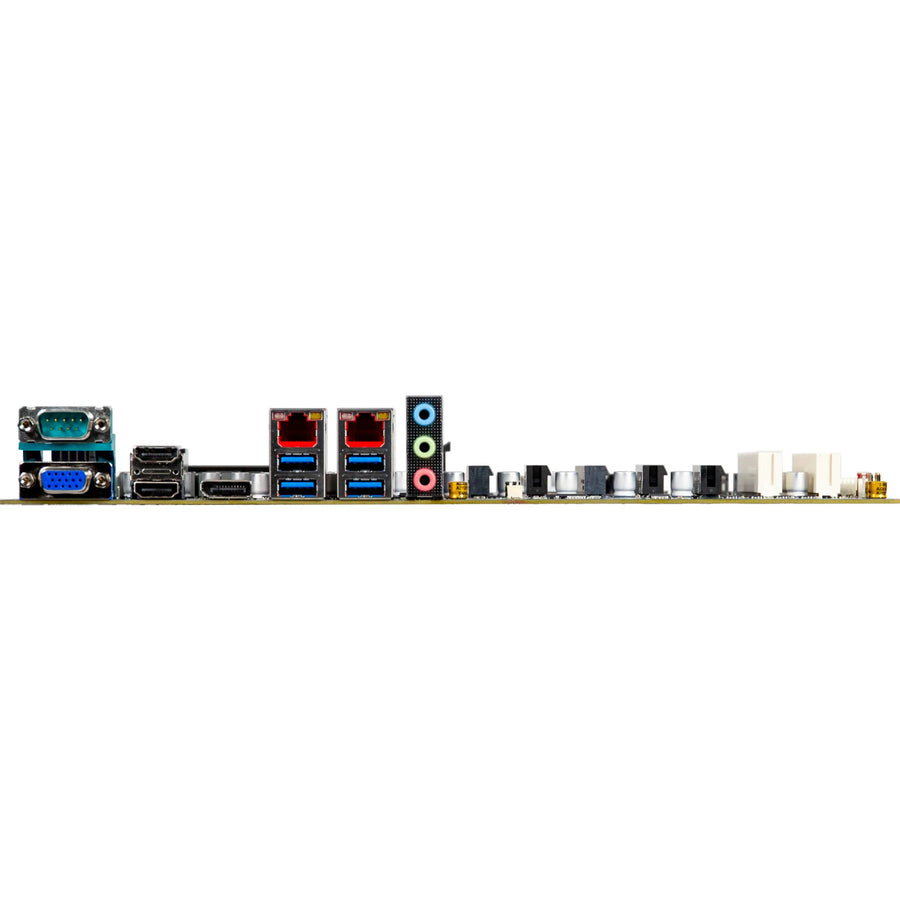

| Rear l/O | 3 x Audio Jacks (Line in, Line out, Mic in)1 x COM Port (RS-232/422/485 & RI/5V/12V)2 x HDMI1 x Display Port1 x VGA2 x RJ45 LAN Ports4 x USB 3.2 Gen 1 |
| TPM | Onboard TPM 2.0 security chipINFINEON SLB9670VQ2.0 |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°COperating humidity: 0-90% (non-condensing)Non-operating temperature: -40°C to 85°CNon-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 679 x 430 x 399 (mm)Packing Capacity: 10pcsSingle Box size: 360 x 330 x 80 (mm) |
| Including: | IO Shield x 1 (P/N: 12AIO-MQ670A-00R)SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R) |
| Order Information | 9MQ670AXMR-SI (Box packing) |
| Optional Kit | CPU Cooler : 12SF1-SK1700-01R (For CPU TDP 125W, Push-pin type)CPU Cooler : 25ST0-037820-Y0R (For CPU TDP 65W)CPU Cooler Backplate : 12KRH-0A1700-00R (Used with P/N: 25ST0-037820-Y0R)VR Heatsink : 12SP2-090027-00R (Suggest to be used if CPU real power is over 100W) |
| Brand | KW Tech NZ |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 1.32 kg |
| Warranty |
|---|
