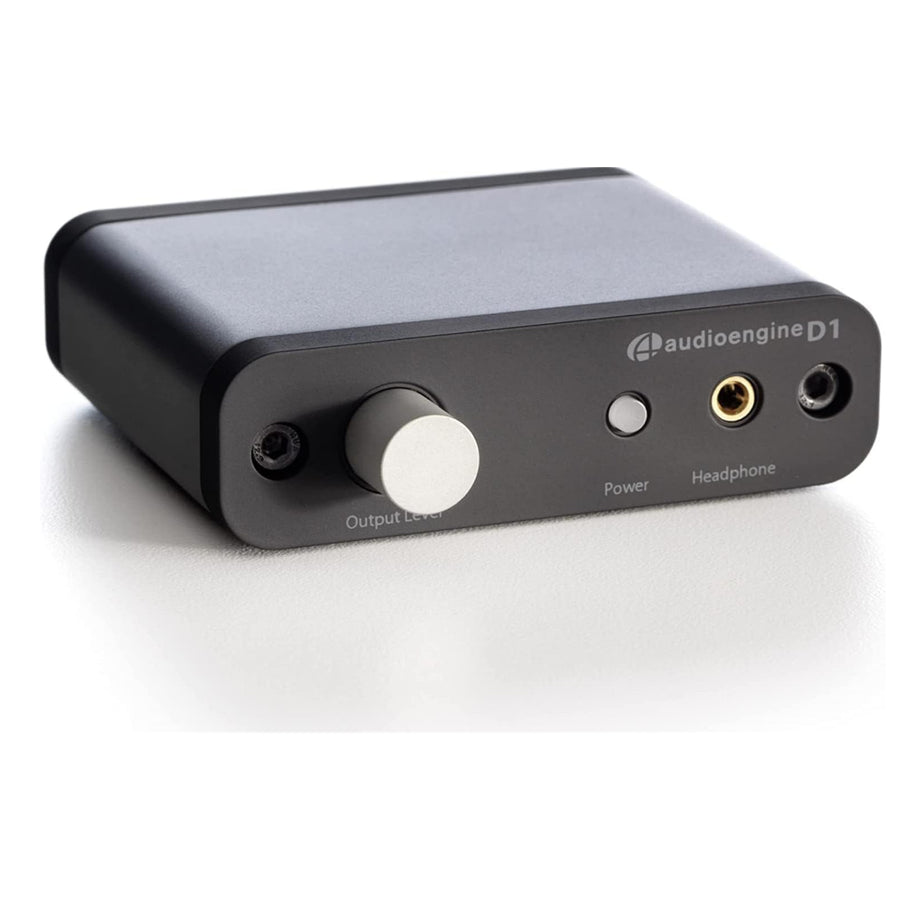

D1 - Audioengine D1 32-Bit (Gen2) DAC/Headphone Amp Grey

SKU: D1 ● In Stock
$260.86
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

The D1: A Master of All Trades

The D1 features both USB C  and optical inputs as well as outputs for any audio system or headphones. The D1 DAC is the perfect way to get great-sounding music not only from your computer but also from your TV, Apple TV, DVD/BluRay player, or CD player. And since it's powered by USB C, D1 is also a high-quality portable computer headphone amplifier. And all of this fits in the palm of your hand.

Features

- Here are just a few of the benefits to owning the Audioengine 2nd generation D1 Premium 32-Bit DAC
- High-performance headphone amp and preamp
- USB C and S/PDIF optical inputs for the digital signal, analog output for the analog signal
- Direct volume control from your computer, phone, or tablet
- Accurate volume control without any imbalance at lower levels, which means it doesn't get crazy loud when you turn it up just a touch
- Separate outputs for headphones and powered speakers or AV receiver
- Powered by USB C from your computer, phone, or tablet, so no additional cords necessary
- Custom audiophile-grade RCA connectors and aluminum case, so it's rock solid and built to last
- High-end sound quality at a budget-friendly price
- It's the perfect size for your desktop or on-the-go

Designed for Audiophiles, Priced for the Rest of Us

Don't let the size fool you: the D1 can handle just about anything you throw at it. It processes digital audio at any bit depth up to 32 bits and any sample rate to 384KHz. And with its high signal-to-noise ratio and low distortion, the D1 delivers sound quality generally heard only in more expensive DACs. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts.

Setup That's as Easy as 1-2

First, you won't need any special software, apps or drivers, so this is a true plug-and-play solution. The D1 outputs connect to any audio system or powered speakers, such as the Audioengine A5+ or A2. Power for the D1 comes from the USB bus so there's no external power supply to connect. Once you've got something going in and coming out, you are ready to rock. (No, seriously. That's all there is to it.)

Specifications

Technical Specifications

DAC type USB and Optical
Inputs USB Audio, S/PDIF Optical
D/A converter ESS ES9018
USB transfer mode Asynchronous dual clock
USB controller CT7601CR USB streamer
USB device class Type 1.1 or above
Input bit depth Up to 24 bits
Input sample rate (USB) 32kHz-96kHz native playback188.2kHz & 192kHz re-sampled to 96kHz
Input sample rate (optical) 32kHz-192kHz native playback
Outputs Analog RCA L/R stereoAnalog 3.5mm mini-jack stereo
Full-scale output level 2.0V RMS
Output impedance 2 ohms
Recommended headphone impedance range 10 ohms to 600 ohms
Headphone amplifier ES9601C SABRE
Optical receiver CS8416
Frequency response 10Hz-25KHz (+/- 0.5dB)
SNR (DC to 20 kHz) >110dB
THD+N (1kHz FS 96kS/s) <0.0025%
Crosstalk -85db
Power requirement USB 5V DC, 200mA
USB power filtering 2-stage redundant regulation
Product dimensions 3.5" (8.9 cm) x 3.75" (9.5 cm) x 1" (2.5 cm)
Shipping weight 1.0lbs (0.5kg)
Environmental Operating Temperature: 32 to 95 degrees FNon-operating Temp: -4 to 113 degrees FRelative Humidity: 5% to 95% non-condensing
Included accessories USB cableSetup guideMicrofiber bag
