Aurora Multimedia IPX-TC1-F - Aurora 4K Transceiver with IPBase T

IPBaseT IPX-TC1The IPX-TC1 provides one of the most advanced IP Streaming solutions on the market utilizing Aurora's IPBaseT® technology, which synergizes various IP/AV standards to work together as one. It is the industry's first 4K2K transceiver with zero compression and latency based on BlueRiver NT™ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The IPX-TC1 can be set up as either one to make installation, inventory, and troubleshooting easier.
Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TC1 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX-TC1 USB feature can also be set as a host or a device. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX-TC1 10G fiber or copper port.  Control of the IPX system.

- Configure as Transmitter (Encoder) or Receiver (Decoder)
- 4K2K Over 10G Fiber or Copper
- Zero Compression & Zero Latency
- Secure Content Encryption
- 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
- Videowall Capability with Zero Latency
- Seamless & Break-away Switching
- SFP+ for Multi/Single Mode Fiber
- 10/100/1000Mbps LAN
- 2 HDMI Inputs, 1 HDMI Output
- Line In/Out Stereo
- RS-232 Serial Port & IR (Bidirectional)
- User Configurable OSD
- Integrated Web Server for Custom Control Pages
- ExtremeUSB® - USB 2.0 480Mbps Option (Host or Device Configurable)
- Dante® IP Audio Option

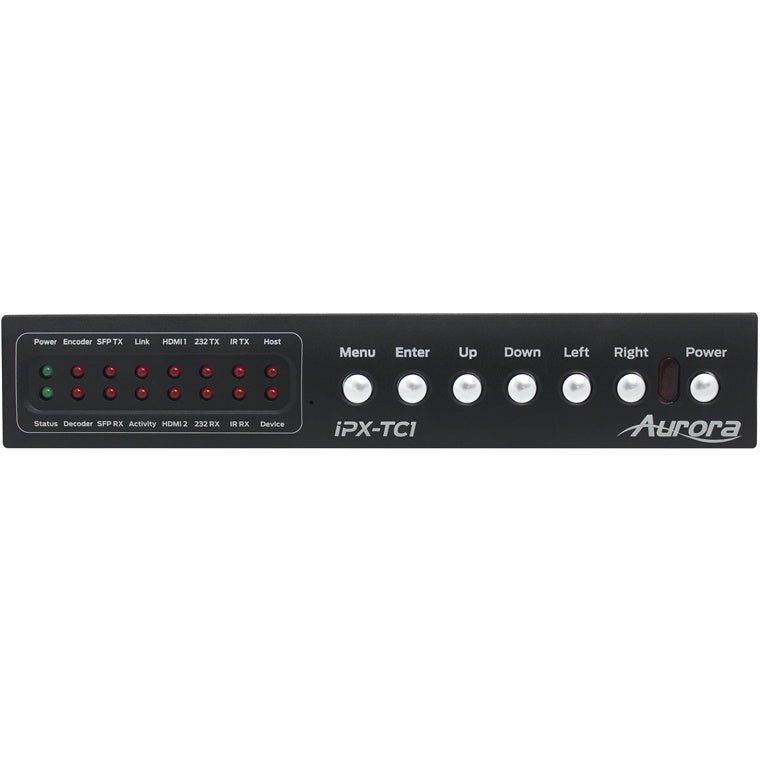

- Front Keypad & IR Remote
- Auto Sense Switching
- Rack & Under Table Mounting

IPX control is available via our IPBaseT Manager Windows® software, or the QXP-2-IPX.

Choice is important. That's why the IPX-TC1 has an SFP+ port that can use single or multi-mode fiber - making the unit the ultimate AV IP product on the market today.

Note: The selected network switch needs to support:  10Gbps, Non-blocking IGMP.

*Patent Pending

USE THE FOLLOWING PART NUMBERS FOR ORDERING:
For 10G Fiber version:  IPX-TC1-F

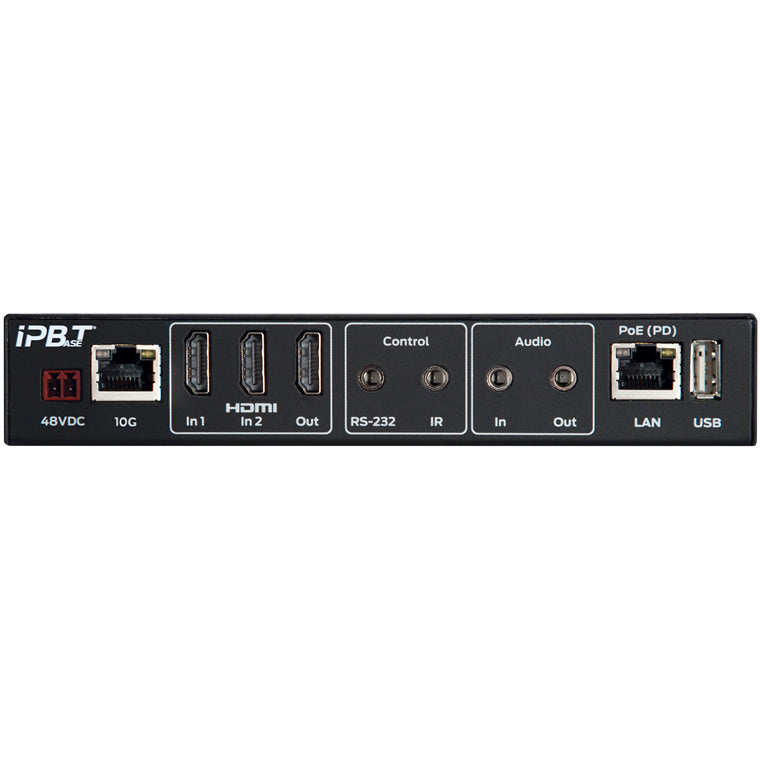

For 10G Copper version:  IPX-TC1-C

Power Supply NOT included, please order separately.
