Yealink AX83H WiFi 6 Wireless Noise Cancellation Handset with Built-in Bluetooth
Features
Yealink AX83H Wi-Fi Handset
- Dual-Band Wi-Fi 6 with seamless 802.11k/v/r roaming
- HD Voice and Smart Noise Filtering
- Wireless headsets connection via Bluetooth 5.0
- 2.4-inch 240 x 320 TFT color screen
- 4 SIP accounts,5-way conference
- Support Microsoft SIP Gateway
Wireless Calls
Wi-Fi brings mobility and flexibility anywhere with essential infrastructure. The integrated dual-band Wi-Fi 6 offers faster speed and greater capacity for connecting more devices.
Good coverage and fast roaming for seamless AP switching make no dropped calls. Get access to a reliable, cordless calling experience with Yealink Wi-Fi handset AX83H.
Five Hands Join Communication, Free From Noise
Yealink AX83H Wi-Fi handset supports 5-way voice conferencing and HD voice quality with Yealink Full-duplex, Smart Noise Filtering, and AEC technology. The five-party discussion is time- and cost-effective for real-time collaboration.
Deluxe Design, Maximum Details, A User-friendly Phone
Yealink AX83H's refined design with a silky-smooth, metallic-like finish embodies both fashion and sophistication. Its 2.4-inch color screen, and intuitive dial pad seamlessly blend functionality with elegance. The optional belt clip adds extra portability, making it an ideal choice for professionals on the move.
Quick Charging, Powerful Battery Stands by You
Powered by a rechargeable 2000 mAh battery, Yealink AX83H is ready for 9 hours talk time or 200 hours standby time (Laboratory Data). It supports quick charging with a charge cradle or with a type C cable. (*Type C cable not included in package)

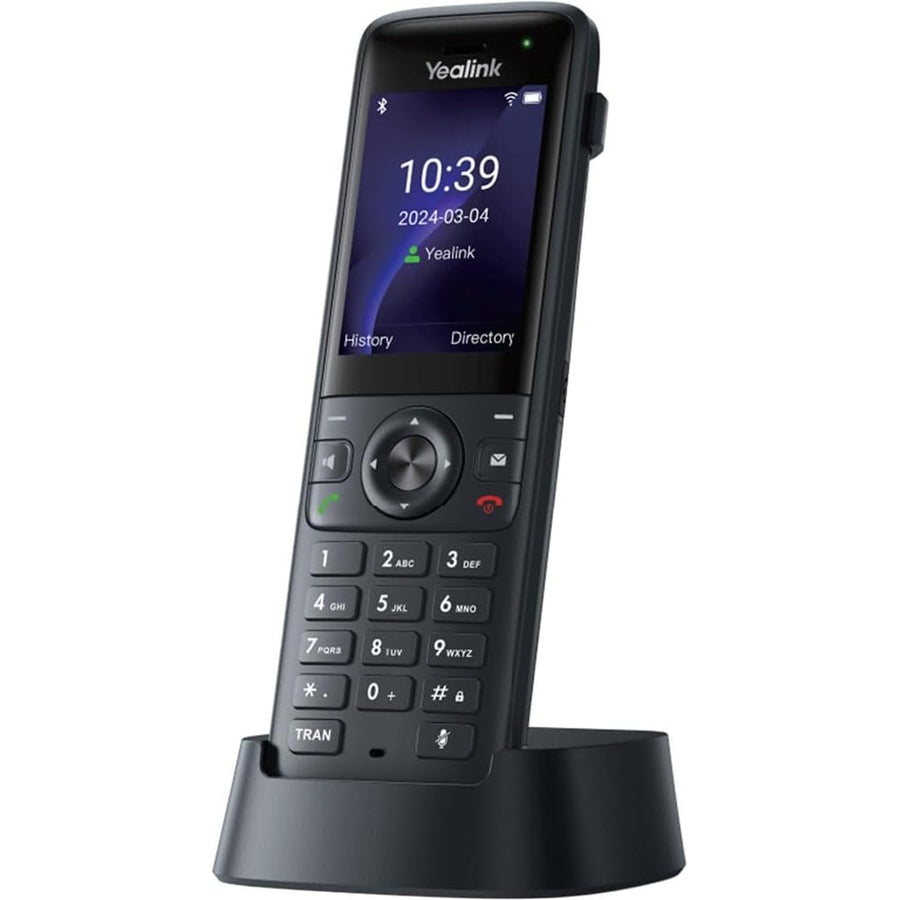

AX83H with Charge Cradle
AX83H with Type C
Scan QR to Share Wi-Fi to One Handset - Batch Deployment By Sharing Over The Air
Effortless Deployment And Management
With Yealink Management Cloud Service (YMCS), you can deploy, upgrade, monitor, and troubleshoot devices easily and timely. The YMCS guarantees your data security all the time. Stay Manageable, Reliable, and Secure on Yealink AX83H to see business running soundly.
BUILD YOUR UNCRACKABLE PHONE SECURITY
The AX83H is shielded with the latest security mechanisms, making your conversations more secure than ever. With TLS 1.3 and WPA3-Enterprise, you benefit from more robust encryption. Learn more enhanced security features in the V87 upgrade.
Specifications
Technical Specifications
| Audio Features | Optimal HD audio: HD handset, HD speakerHearing aid compatible (HAC) compliantAudio codec: G.722, PCMU (G.711µ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBCDTMF: In-band, Out-of-band (RFC 2833) and SIP INFOFull-duplex hands-free speakerphone with AECSmart Noise Cancellation TechnologyVAD, CNG, AEC, PLC, AJB, AGC |
|---|---|
| Display and Indicator | 2.4" 240x320 TFT color screenKeypad backlightVibrationWallpaper and screensaverLED for call and message waiting indicationMultilingual user interfaceCaller ID with name, number, and avatar |
| Phone Features | 4 VoIP accountsSpeed dial, redialCall hold/call transfer/call waiting/call forwardEmergency callMute, DNDAuto answerHotlineRecallLocal 5-way conferencingDirect IP call without SIP proxyRing tone selection/import/deleteSet date time manually or automaticallyDial Plan, XML Browser, Action URL/URIRTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)Customizable softkey |
| Peripherals | Support Bluetooth headset- Basic functions: answer/end/mute call- Enhanced functions: redial/call hold/volume adjustment two-way synchronization |
| IP-PBX Features | Anonymous call, anonymous call rejectionIntercomMulticast pagingCall completionMessage Waiting Indicator (MWI)Call park, call pickupCall recordingVoice mail |
| Directory | Local phonebook up to 1000 entriesBlocklistXML/LDAP remote phonebookGoogle contactsSmart dialingPhonebook search/import/exportCall history: All call/dialed/received/missed/forwarded |
| Feature Keys | 2 soft keys6 function keys: dial, hang up, handsfree, voice message, mute, call transferNavigation key and OK key |
| Interface | 1 x 3.5 mm headset jack1 x Type-C port |
| Management | Configuration: browser/phone/auto-provisionAuto provision via FTP/TFTP/HTTP/HTTPS for mass deploymentAuto-provision with PnPTR-069Phone lock for personal privacy protectionReset to factory, rebootPackage tracing export, system logSupports Yealink Device Management Platform (YMDP/YMCS) |
| Network | Built-in dual-band Wi-Fi:- Network standard: 2.4G&5G, IEEE802.11a/b/g/n/ac/ax- Frequency range: 2.4 GHz/ 5.0 GHz- Roaming: IEEE802.11 k/r/vBuilt-in Bluetooth 5.0:- Connecting to Bluetooth HeadsetIPv4/IPv6SIP v1 (RFC2543), v2 (RFC3261)Call server redundancy supportedNAT traversal: STUN modeSIP link mode: Proxy mode and peer-to-peerIP Assignment: static/DHCPHTTP/HTTPS web serverTime and date synchronization using SNTPUDP/TCP/DNS-SRV (RFC 3263)QoS: Layer 3 ToS DSCP, 802.11e/WMM |
| Security | SRTP for voiceTLS1.3 supportHTTPS certificate managerAES encryption for configuration file (AES256)Digest authentication using MD5/MD5-sessOpenVPN, IEEE802.1XWPA, WPA2, WPA3Secure bootGARP (Generic Attribute Registration Protocol) |
| Power | Power adapter: AC 100~240V input and DC 5V/1.2A output |
| Environmental Factors | Operating humidity: 10%-95%Operating temperature: 0 to 40°C (+32 to 104°F)Storage temperature: -30 to 70? |
| Package Features | Handset size: 151.0 x 49.5 x 21 mmHandset weight: 126 gPackage contents- Yealink AX83H Phones- Charger Cradle- Rechargeable Battery- Belt Clip- Quick Start Guide- Power Adapter |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.68 kg |
| Warranty |
|---|
