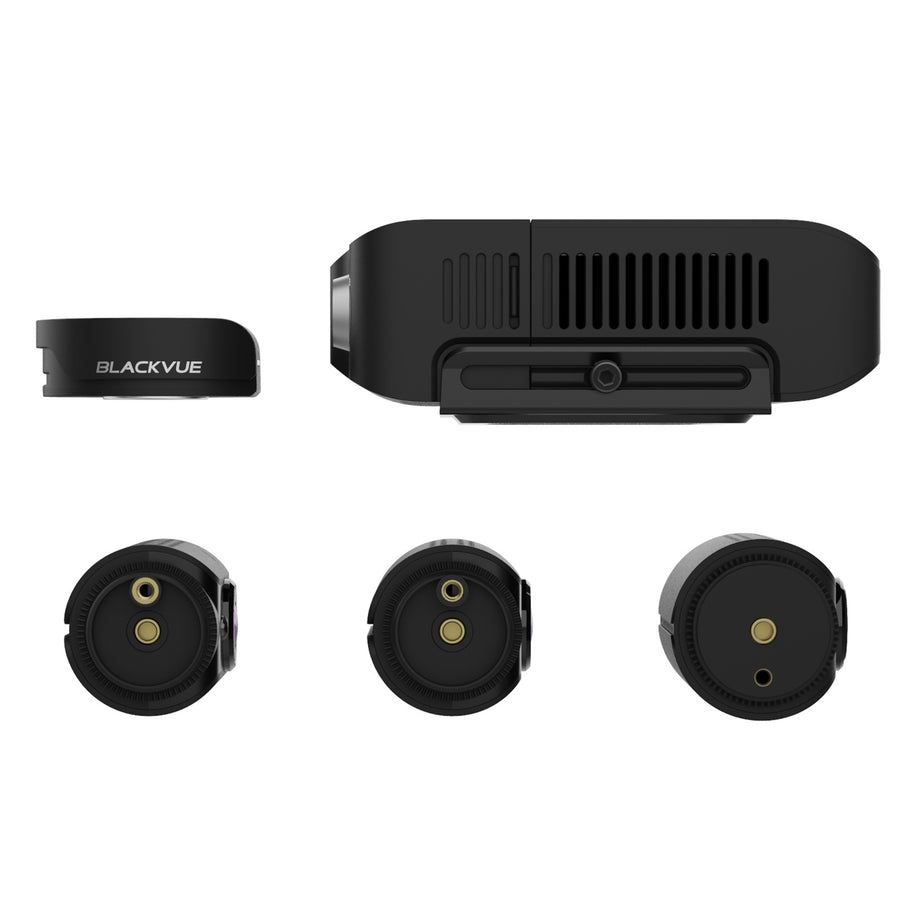

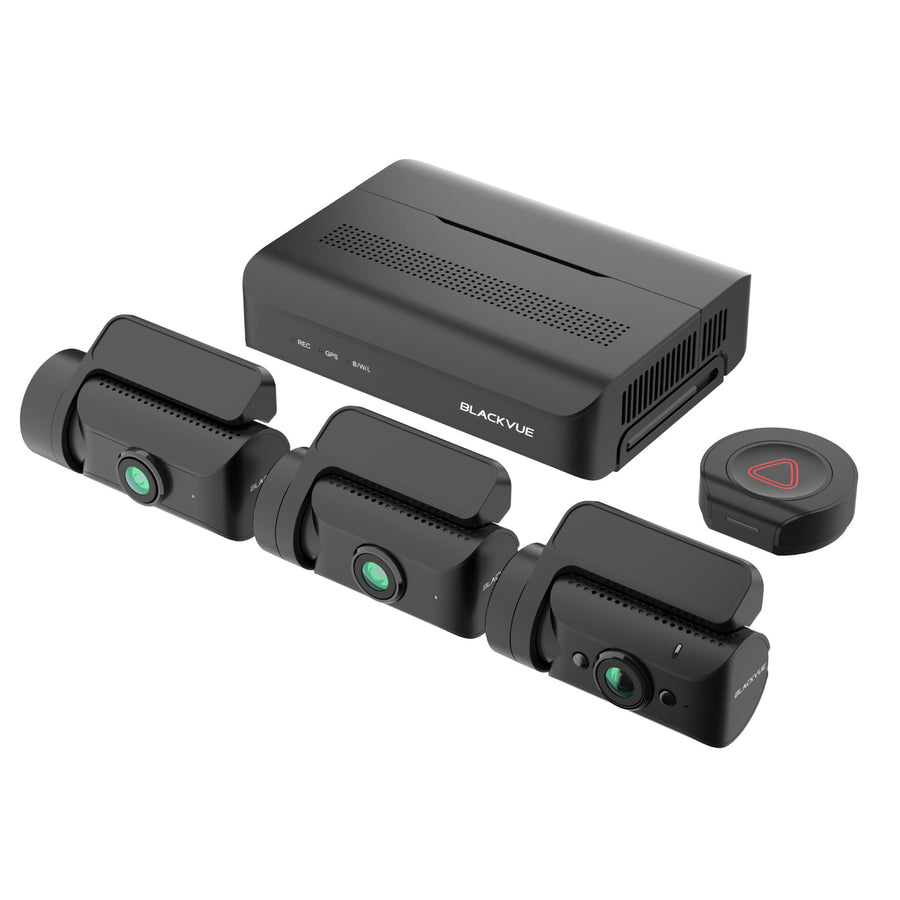

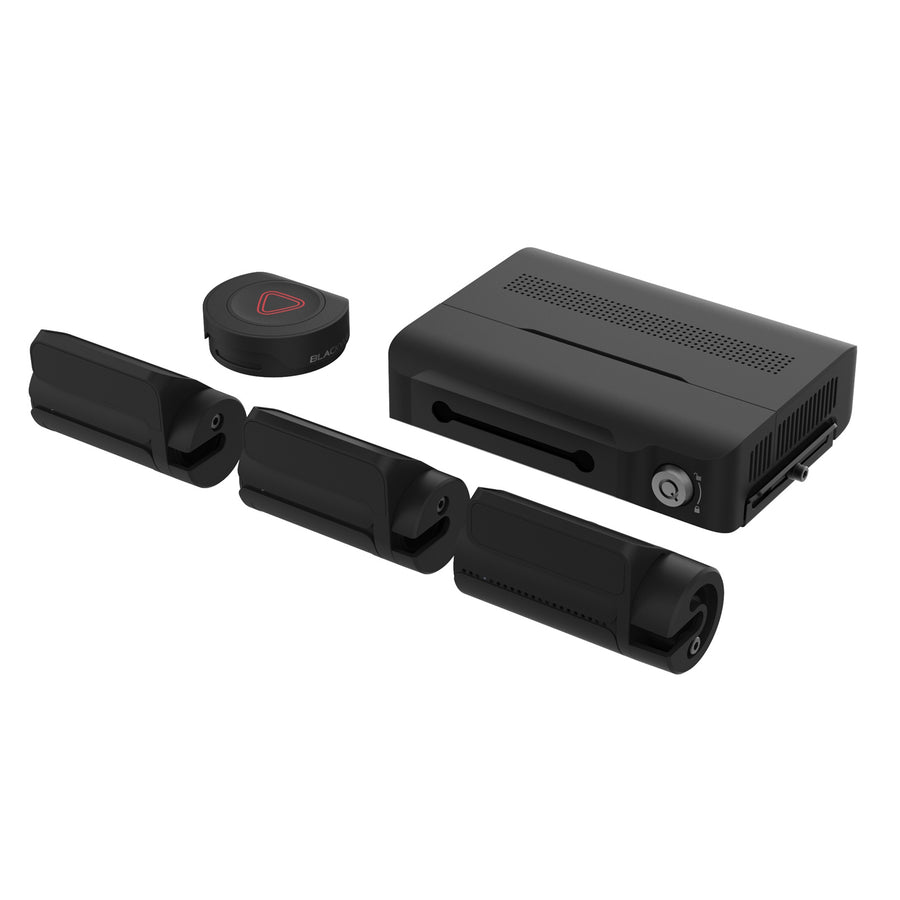

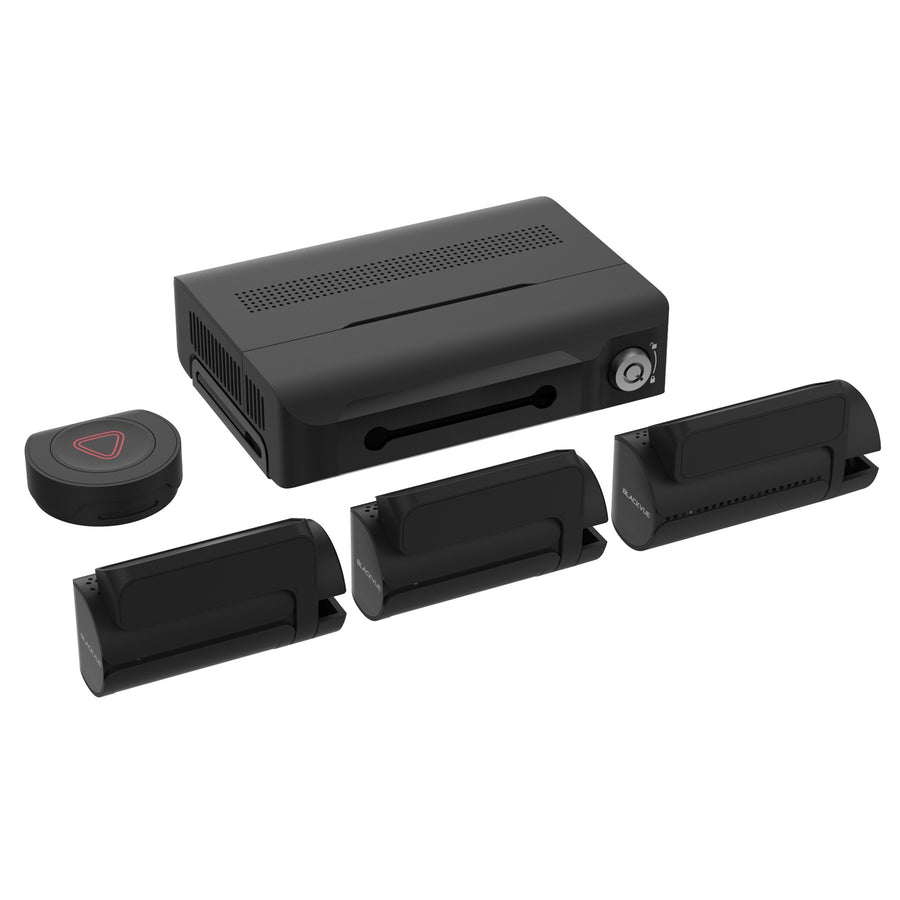

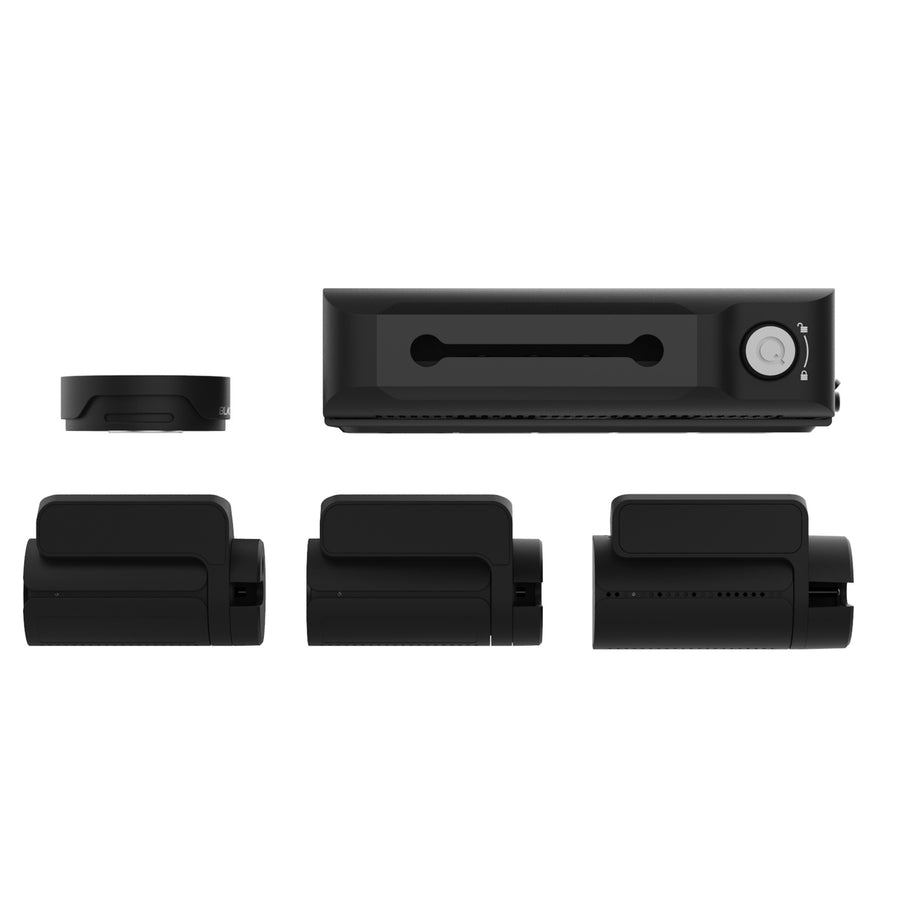

BLACKVUE DR770X BOX PRO 3-CH CAMERA SYSTEM - CENTRAL RECORD BOX + FRONT; IR 1080 HD DASHCAM 64 GB
Features
Combining stealth and security, the DR770X Box Pro features SONY STARVIS sensors and FHD recording across all cameras for exceptional clarity. Starting with a single-camera setup, the system can be expanded with up to two additional cameras for complete interior and exterior coverage.
Full HD for Everyone
The front, rear and interior cameras feature an upgraded Full HD Sony STARVIS™ image sensor. The back-illuminated image sensors produce the best image quality under any light thanks to high sensitivity and wide dynamic range. Available as a complete system or base 1CH set-up.
Premium features & configurations
The BlackVue DR770X BOX Pro: a compact front camera paired with a secure recording unit that installs safely out of sight. From this foundation, transform it into a complete three-camera system by adding any two cameras from our range - choose from the standard rear, waterproof external, or infrared interior options. This modular design gives you the flexibility to create your perfect surveillance setup, all in FHD 1080P.
Security meets function
Cover all angles with this exclusive three channel offering by BlackVue. Capture all moments and ensure your footage is safe from erasure, with built-in security features and event mode recording.
Triple Channel Vision
A three-channel capable set up lets you capture all of the essential details. Capture crucial moments that happen within and externally to your car in high quality Full HD resolution. Monitor the inside, what's happening in front and anything crucial in the rear.
Intelligent parking mode
With advanced parking mode technology, your dash cam protects your car, recording videos when it detects movement or impact, even when you're not there. Buffered recording even includes the few seconds before and after the triggered event, so you get the complete picture.
BlackVue Cloud™
- Live View: Remote Viewing at your fingertips
- Emergency Alarm: Receive notifications on the go
- Video Backup: Move files from dashcam to cloud
- Video Playback: Watch on your dash cam or smartphone
Specifications
Technical Specifications
| What's Included | Main UnitFront CameraRear CameraRear Infrared CameraSOS ButtonMain unit cigarette lighter power cable (4.5M)Main unit hard wiring power cable (4.5m)Camera connection cable (6m, 3EA)Micro SD with Card ReaderQuick start GuideMounting Tape and Main unit key |
|---|---|
| Model Name | DR770X Box-3CH Pro |
| Channel | 3CH |
| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Product Dimensions | Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 gFront : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 gRear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 gInterior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 gWireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 512GB |
| Recording Modes | Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Imaging Sensor | Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93° |
| Resolution Frame Rate | Front / Rear / Interior IRFull HD (1920×1080) @ 60 fps - Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps*Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Front / Rear / InteriorExtreme: 16 + 10 + 10 MbpsHighest: 12 + 10 + 10 MbpsHigh: 10 + 8 + 8 MbpsNormal: 8 + 6 + 6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 51) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| GPS | External (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LEDFront: Front & Rear Security LEDRear: Front & Rear Security LEDInterior IR: Front & Rear Security LEDEB-1: Operating / Battery low voltage LED |
| Rear Camera IR Illumination | Interior IR: 940nm (2 Infrared (IR) LEDs) |
| Button | EB-1 button : Press the button - manual recording. |
| Operation Temperature | -20°C - 70°C (-4°F - 158°F ) |
| Storage Temperature | -20°C - 80°C (-4°F - 176°F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/3CH) : Avg. 750mA/12VParking Mode (GPS Off/3CH) : Avg. 600mA/12V* Approx.40mA increase in current when Interior Camera IR LEDs are ON.* Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCMRear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | BLACKVUE ViewerWindows 7 or higher, Mac Sierra OS X (10.12) or higherBLACKVUE Web ViewerChrome 71 or higher, Safari 13.0 or higher |
| Application | BLACKVUE ApplicationAndroid 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format Free File Management SystemBluetooth Built-in (V2.1+EDR/4.2)LTE External (optional) |
| Brand | BLACKVUE |
|---|---|
| Product Type | Mobile & Wearables > Car Phone Holders & Mounts |
| Weight | 0.5 kg |
