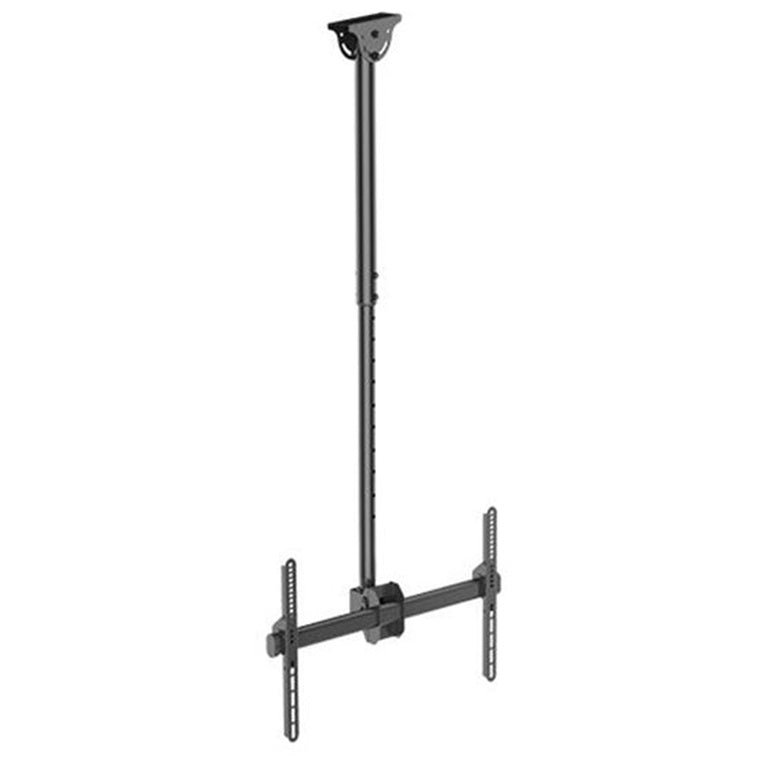

BRATECK 37''-70'' Ceiling Mount Bracket Max Load: 50Kgs VESA support up to: 600x400.
Features
BRATECK 37''-75'' Ceiling Mount Bracket. Max Load: 50Kgs. VESA support up to: 600x400. Profile: 1060-1560mm. Hidden cable management. Colour: Slate black.
The Lumi's PLB-CE946-01L is a full-motion ceiling mount designed to offer the ultimate in versatility and universal compatibility. Tilting ceiling plate for a flat and sloping ceiling application. It allows displays to tilt down and swivel around the pole without tools. Includes VESA plate to accommodate virtually any 37"~70" LCD TV or monitor up to 50kg/110lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organised.
- Telescoping height adjustment for the optimal viewing height
- Ceiling plate can be adjusted for mounting in flat or sloping ceiling
- Free-tilting design for multiple monitor viewing angles
- Built-in level adjustment ensures perfect positioning
- Cable management keeps everything organized
All Brateck brackets come with a 5 Year Warranty.
Specifications
Technical Specifications
| Specification: | TV ceiling mount |
|---|---|
| By Grade: | Standard Series |
| By Function: | Tilting |
| By Mounting Pattern: | Standard VESA |
| Material: | Steel |
| Surface Finish: | Powder coating |
| Available Colour: | Black |

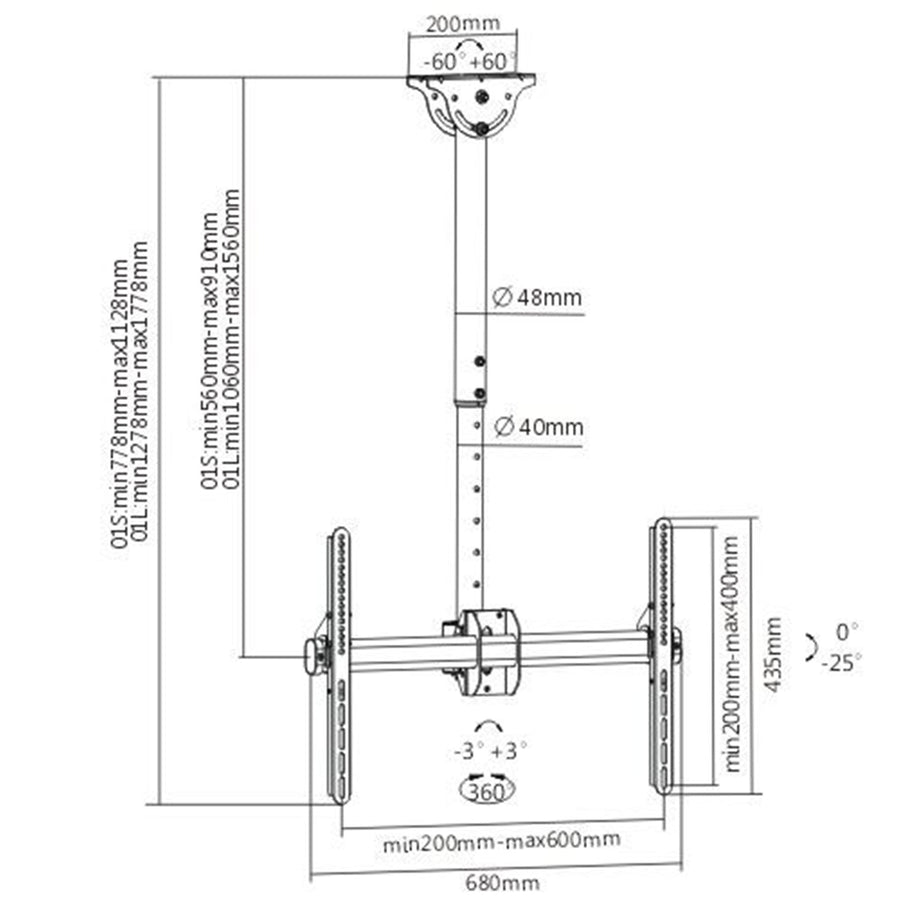

| Product Size: | 680x435x1778mm |
| Recommended Screen Size: | 37"~70" |
| Rated Weight Capacity: | 50kgs/110lbs |
| Strength tested: | 3 times approved |
| Max.Hole Pattern: | 605x405mm |
| VESA Standard: | 200x200, 400x200, 300x300, 400x400, 600x400 |
| Tilt: | ＋0°~-25° |
| Swivel: | +180°~-180° |
| Level Adjustment: | +3°~-3° |
| Profile: | 1060~1560mm |
| Bubble Level: | No |
| Anti-theft: | No |
| Cable Management: | Yes |
| Panel separated: | Yes |
| Patent: | No |
| Brand | BRATECK |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 16.8 kg |
