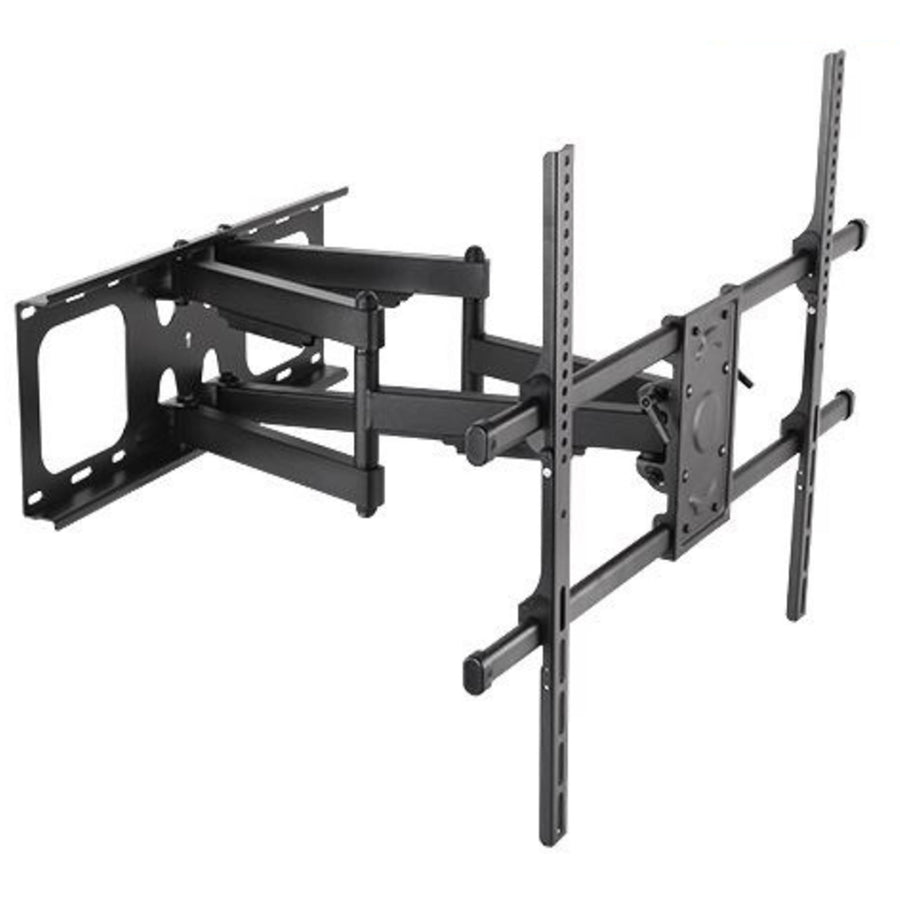

BRATECK 50''-90'' Full-Motion Wall Mount Bracket Max load: 75kg VESA Support up to: 800x600
Features
BRATECK Full-motion TV Wall Mount for 50-90" Curved and Flat TVs.
The new solid ultra-large full-motion mount is constructed with high gauge steel that designed for most 50"- 90" flat panel TVs up to 75kg/165lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. Quick lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.
- Quick lock and release system holds TV in place with no tools required
- Profile: 69-635mm
- Swivelling arm offer maximum viewing flexibility: +60°~-60°
- Freely tilting at a desired viewing angle by using a swing-over lever: +5°~-15°
- Built-in level adjustment ensures perfect positioning
- Integrated cable management keeps cables neatly organised
- VESA: 200x200;400x200;300x300;400x400;600x400;800x400;400x300;300x200;800x600
Specifications
Technical Specifications
| Product Name | TV wall mount |
|---|---|
| By Rank | Economy Series |
| By Function | Full motion |
| By Mounting Pattern | Universal |
| Material | Steel |
| Thickness | Panel 3mm, Brateck 2mm (Panel 0.10.079", Brateck 0.079") |
| Pipe Size | 40X25X1.5mm |
| Surface Finish | Powder Coating |
| Available Color | Black |
| Product Size With Open Position | 635X885X630mm |
| Fit Screen Size | 50"~90" |
| Installation | Solid wall, Double Stud |
| Rated Load | 75kg |
| Strength tested | 2 times approved |
| Max.Hole Pattern | 816mmx610mm |
| VESA | 200x200; 400x200; 300x300; 400x400; 600x400; 800x400; 400x300; 300x200; 800x600 |
| Tilt | +5°~-15° |
| Swivel | +60°~-60° |
| Level Adjustment | +3°~-3° |
| Rotating | NO |
| Profile | 69mm~635mm |
| Bubble Level | Yes |
| Anti-theft | No |
| Cable Management | Yes |
| Wall separated | No |
| Panel separated | Yes |
| AV Component Mount | No |
| Freely Tilting | No |
| Freely Height Adjustable | No |
| Motorized | No |
| Curved TV Available | YES |
| Screw Kits Package | Separate Bag+Ziplock Bag |
| User Manual | Yes |
| Brand | BRATECK |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 25.7 kg |
