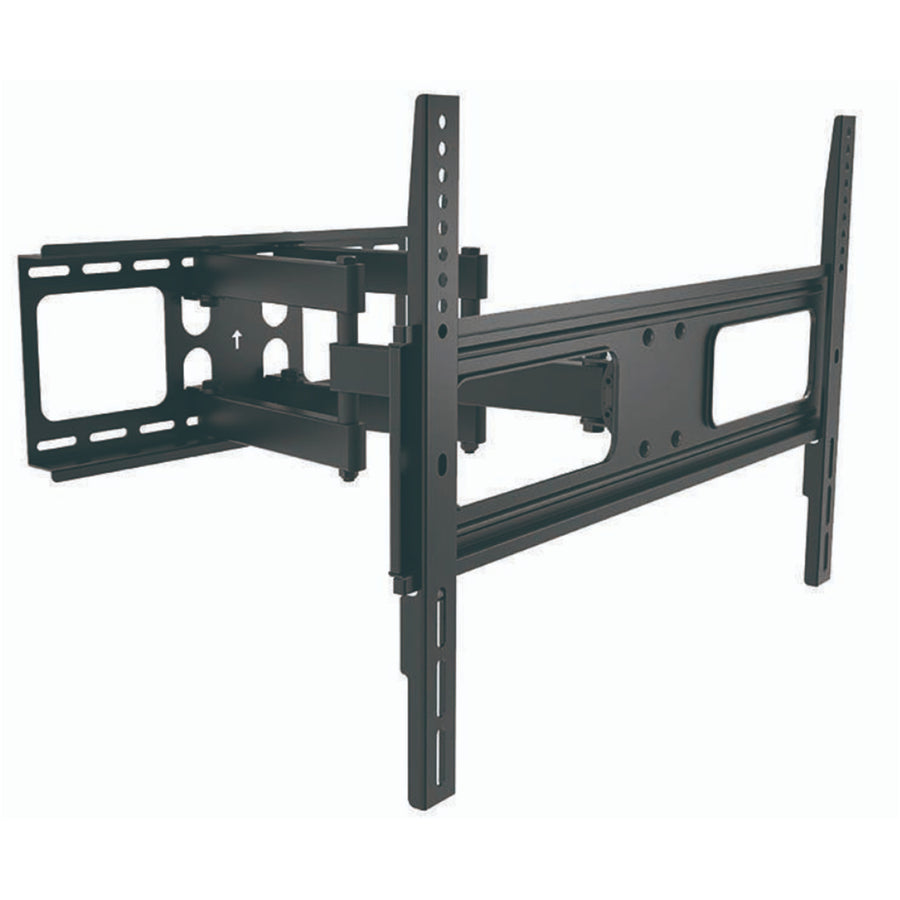

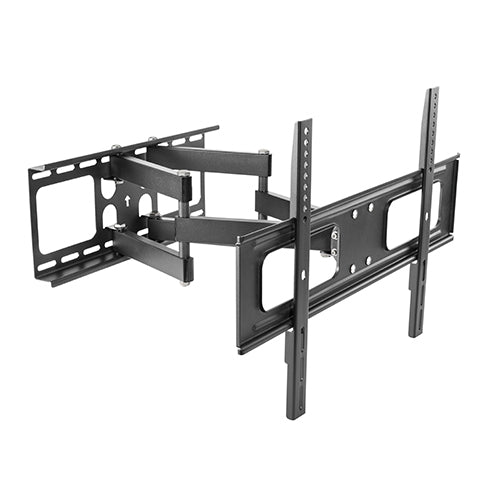

Brateck Cantilever 37-70" LCD Wall Mount Bracket
Features
Economy Solid Articulating Curved & Flat Panel TV Wall Mount
For most 37"-70" curved & flat panel TVs
The LUMI LPA36-466 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70", 50kg/110lbs. This mount extends out 510mm from wall and allows TVs to turn 60 left or right. Full motion allows maximum flexibility - tilts and swivel your TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to "roll" up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organized and protected. Wide wall plate fits for 406/450mm stud installation.
- Freely tilting allows easy TV angle adjustment
- Swiveling arm offer maximum viewing flexibility
- Built-in level adjustment ensures perfect positioning
- Cable management system helps keep cables concealed and organized
- Strength has been tested for a minimum of three times its stated load capacity
Specifications
Technical Specifications
| Product Name | TV wall mount |
|---|---|
| By Grade | Economical Series |
| By Function | Full motion |
| By Mounting Pattern | Universal |
| Material | Steel |
| Surface Finish | Powder coated |

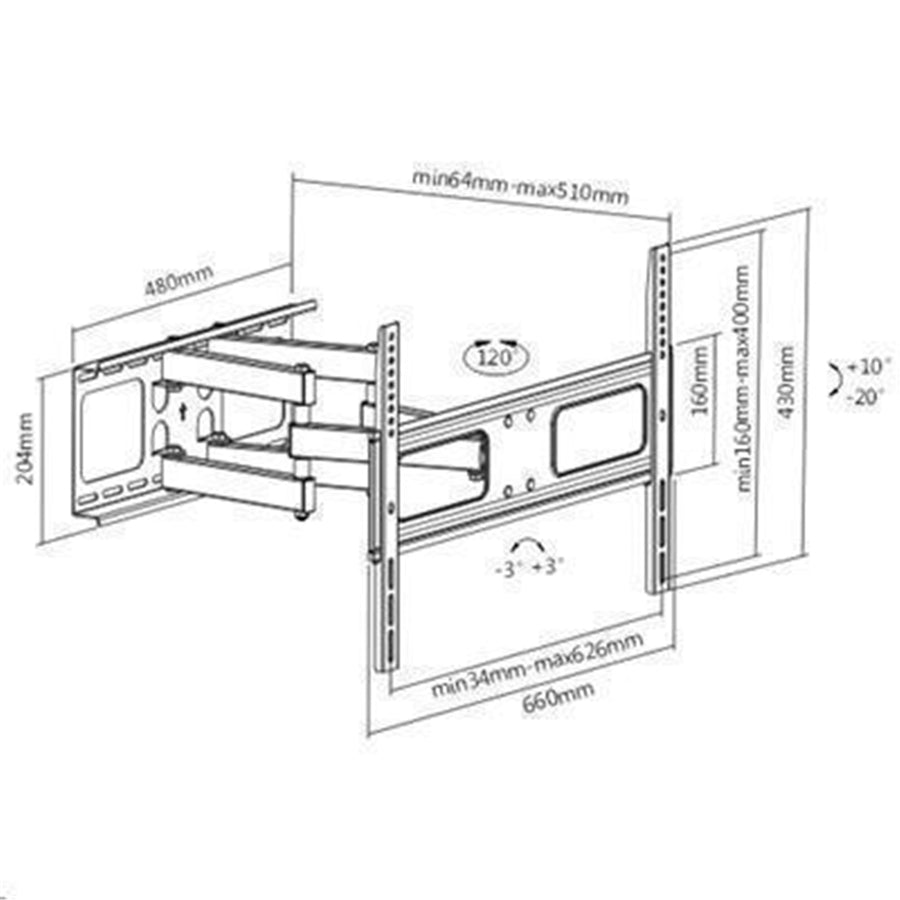

| Product Size | 510x660x430mm |
| Suggested Screen Size | 37"-70" |
| Installation | Solid wall, Double Stud |
| Rated Load | 50kg/110lbs |
| Strength tested | 3 times approve |
| Max.Hole Pattern | 626X400mm |
| VESA | 200x200,400x200,300x300,400x400,600x400 |
| Tilt | -20°~+10° |
| Swivel | -60°~+60° |
| Level Adjustment | -3°~+3° |
| Profile | 64mm-510mm |
| Bubble Level | No |
| Anti-theft | No |
| Cable Management | Yes |
| Wall separated | No |
| Panel separated | Yes |
| AV Component Mount | No |
| Freely Tilting | Yes |
| Motorized | No |
| Curved TV Available | Yes |
| Brand | Brateck |
|---|---|
| Product Type | Networking > Racks & Cabinets |
| Weight | 0.5 kg |
