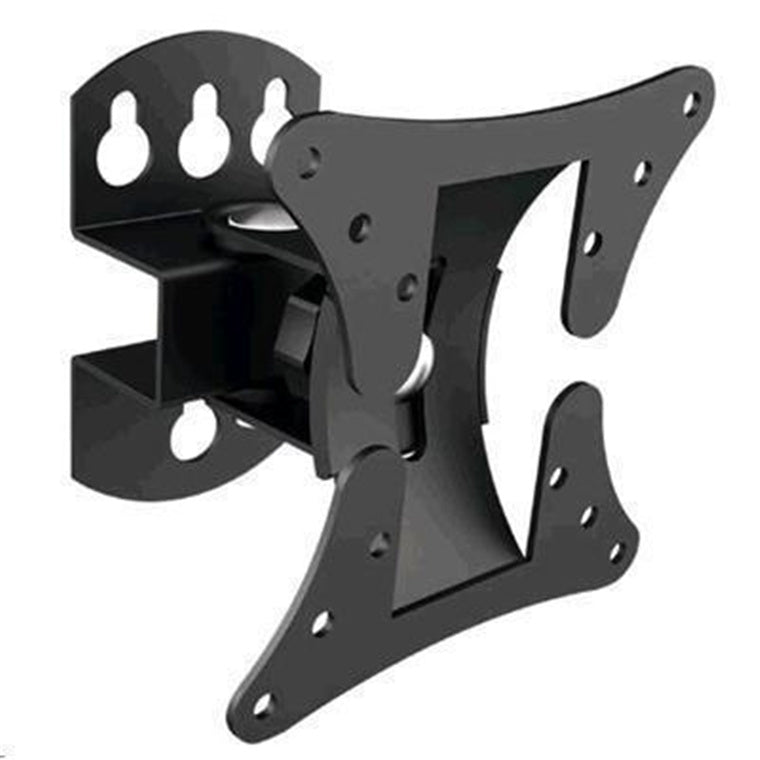

Brateck LCD-501 LCD Wall Mount Bracket Vesa 50/75/100mm up to 23"
Features
The popular model LCD-501 is one of the Classic products and is designed to fit any 13''-27'' Flat Panel TV up to 30kgs/66lbs. Simple construction equipped with full decorative cover routes cables inside arm for a clean look. Adjustable swivel arm and tilt plate provides maximum viewing flexibility. VESA compatible with 50x50, 75x75, 100x100.
- Freely tilting allows easy TV angle adjustment
- Swiveling arm offer maximum viewing flexibility
- Decorative cover conceals assembly and mounting hardware for a finished appearance
- The hidden cable management integrated in arm easily conceals cables beneath channel covers
Specifications
Technical Specifications
| Specification: | TV wall mount |
|---|---|
| By Grade: | Economy Series |
| By Function: | Pivot |
| By Mounting Pattern: | Standard VESA |
| Material: | Steel |
| Available Color: | Black |

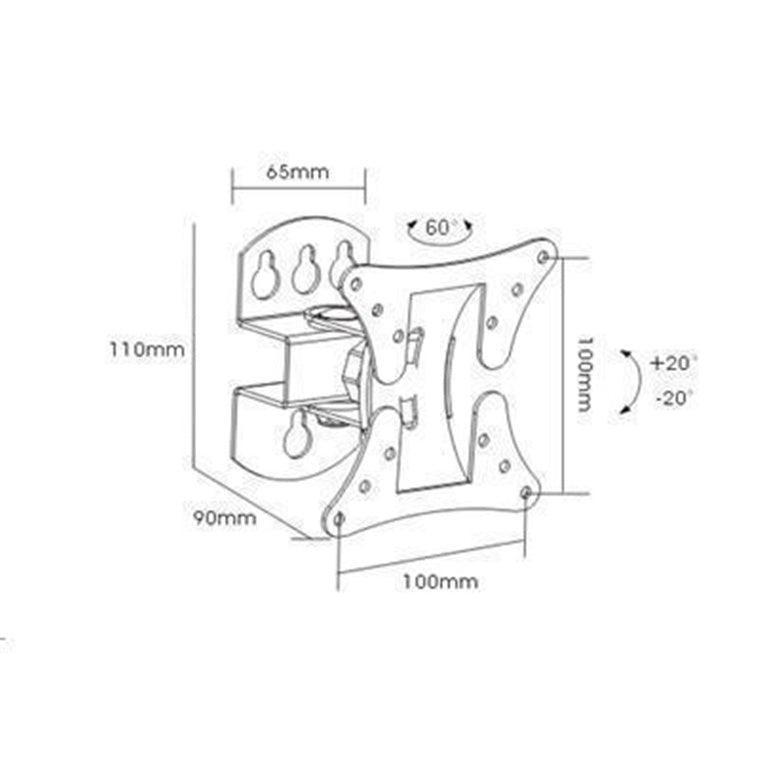

| Product Size: | 90x115x115mm |
| Recommended Screen Size: | 13"-27" |
| Rated Weight Capacity: | 30kg/66lbs |
| Max.Hole Pattern: | 100x100mm |
| VESA Standard: | 50x50 75x75 100x100 |
| Tilt: | -20°~+20° |
| Swivel: | -30°~30° |
| Profile: | 90mm |
| Bubble Level: | No |
| Anti-theft: | No |
| Cable Management: | No |
| Brand | Brateck |
|---|---|
| Weight | 0.522 kg |
| Warranty |
|---|
