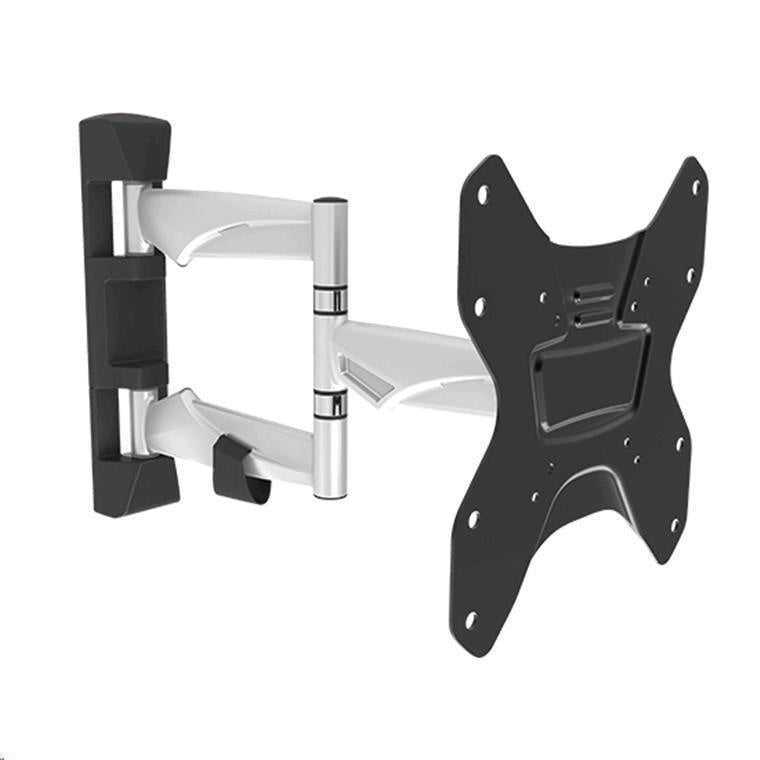

BRATECK LDA20-223 - 23-43'' Full motion TV wall bracket Tilt & swivel Supports VESA
Features
Elegant Aluminum Full-motion TV Wall Mount
For most 23"-42" LED, LCD Flat Panel TVs
The LDA20-223 is a full-motion wall mount for most 23''-42'' LED, LCD flat panel TVs up to 30kg/66lbs. The arm can be stretched up to 410mm for a full range of movement to perfectly position your screen display - swivel up to 90° left or right and -8°~+12°tilt. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Strength has been tested for a minimum of four times its stated load capacity. Compatible with VESA hole up to 200x200.
- Freely tilting allows easy TV angle adjustment
- Swiveling arm offer maximum viewing flexibilitySwiveling arm offer maximum viewing flexibility
- Built-in level adjustment ensures perfect positioningBuilt-in level adjustment ensures perfect positioning
- Cable clips keep cables organized and protectedCable clips keep cables organized and protected
- Strength has been tested for a minimum of four times its stated load capacityStrength has been tested for a minimum of four times its stated load capacity

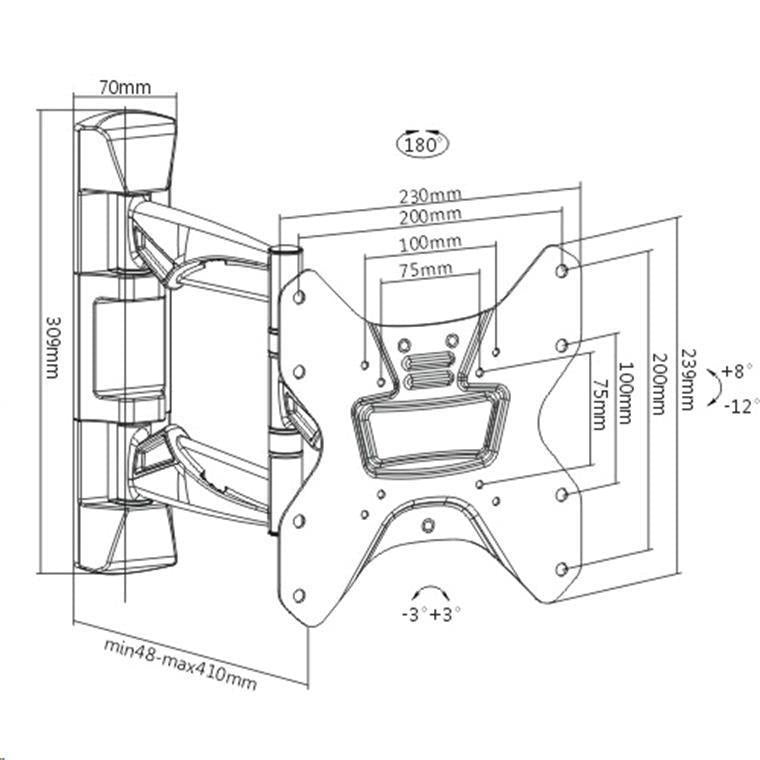

Specifications
Technical Specifications
| Product Name: | TV wall mount |
|---|---|
| By Grade: | Standard Series |
| By Function: | Full motion |
| By Mounting Pattern: | Standard VESA |
| Material: | Aluminum |
| Product Size: | 410x240x230mm |
| Suggested Screen Size: | 23"-42" |
| Installation: | Solid wall, Single Stud |
| Rated Load: | 30kgs/66lbs |
| Strength tested: | 4 times approved |
| Max.Hole Pattern: | 200X200 |
| VESA: | 75x75, 100x100, 200x100, 200x200 |
| Tilt: | +8°~-12° |
| Swivel: | -90°~+90° |
| Level Adjustment: | -3°~+3° |
| Profile: | 48MM-410MM |
| Cable Management: | Yes |
| Wall separated: | No |
| Panel separated: | Yes |
| AV Component Mount: | No |
| Freely Tilting: | Yes |
| Motorized: | No |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 8.39 kg |
