BRATECK LPA50-222 - 23''-43'' Full Motion TV Wall Bracket Tilt & Swivel VESA Support
Features
BRATECK 23-42" Full Motion TV Wall Mount. Tilt +5°~-15°, Swivel +90°~-90°. Built-in level adjustment. Integrated cable management. Profile 45-400mm. Max VESA 200x200mm.
Elegant Full-Motion TV Wall Mount

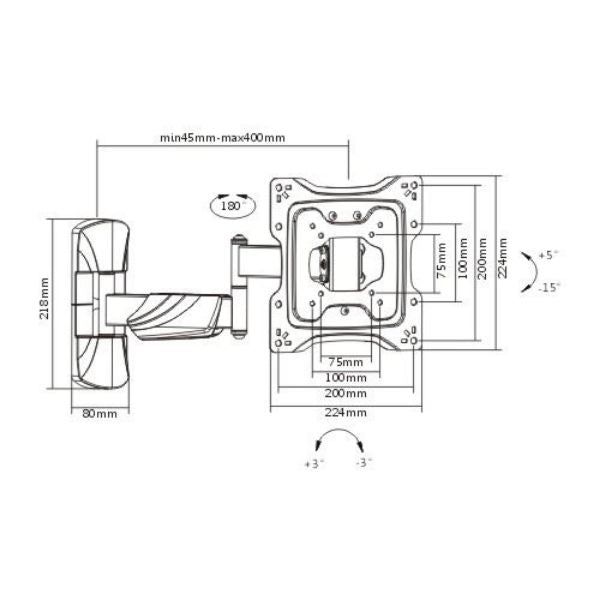

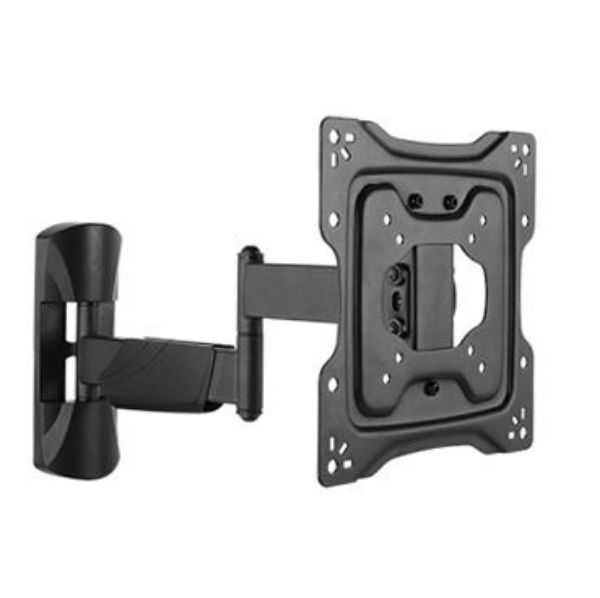

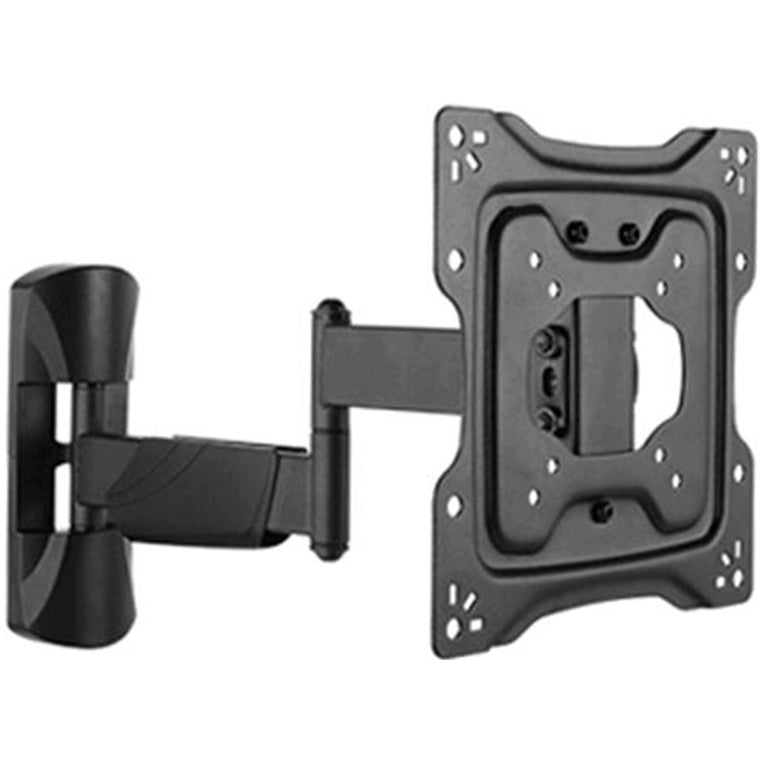

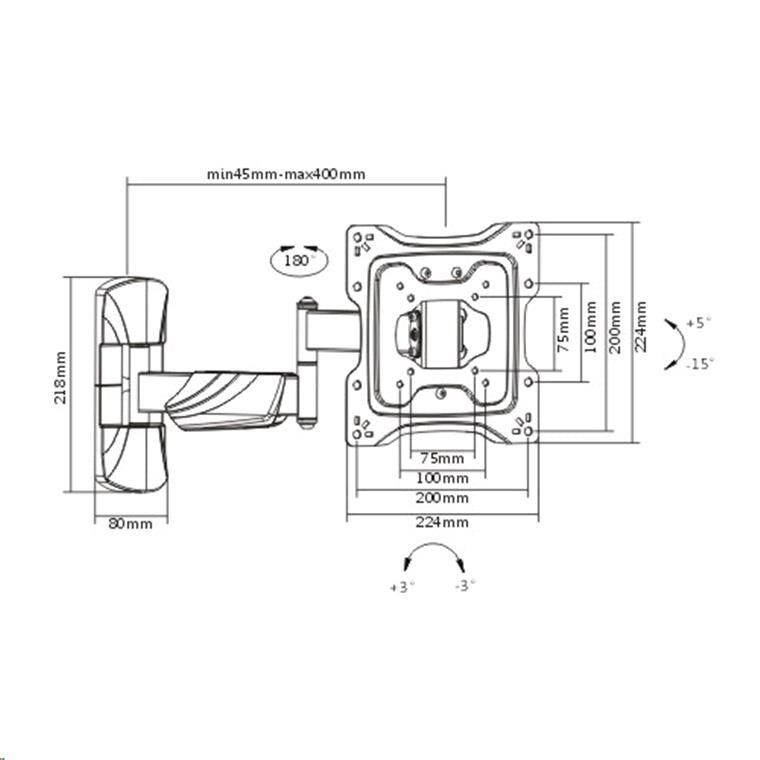

The LPA50-222 is a full-motion wall mount for most 23''-42'' LED, LCD flat panel TVs up to 35kg/77lbs. The arm can be stretched up to 400mm for a full range of movement to perfectly position your screen display - swivel up to 90° left or right and -15°~+5° tilt. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 200x200.
Specifications
Technical Specifications
| By Grade | Standard Series |
|---|---|
| By Function | Full Motion |
| By Mounting Pattern | Standard VESA |
| Material | Steel, Plastic |
| Pipe Size (mm) | 40x20x1.5 |
| Surface Finish | Powder Coating |
| Colour | Black |
| Product Size (mm) | 224x280x400mm |
| Suggested Screen Size | 23"-42" |
| Installation | Solid Wall, Single Stud |
| Rated Load | 25kgs |
| Strength Tested | 3 times approved |
| Max. Hole Pattern | 200x200 |
| VESA | 75x75, 100x100, 200x100, 200x200 |
| Tilt | +5° ~ -15° |
| Swivel | +90° ~ -90° |
| Level Adjustment | +3° ~ -3° |
| Rotating | 0° |
| Profile | 45-400mm |
| Bubble Level | No |
| Anti-Theft | No |
| Cable Management | Yes |
| Wall Seperated | No |
| Panel Seperated | Yes |
| AV Component Mount | No |
| Freely Tilting | No |
| Freely Height Adjustable | No |
| Motorized | No |
| Curved TV Avalilable | Yes |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 9.206 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
