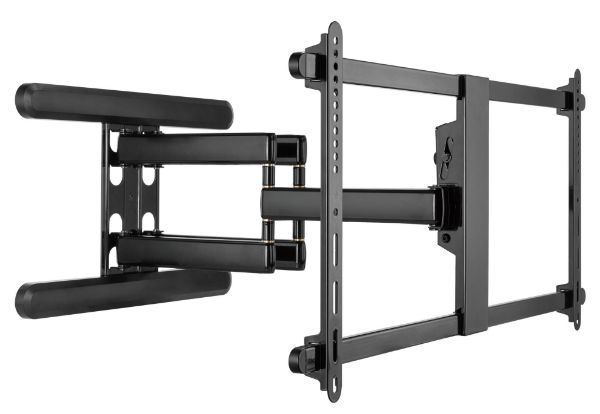

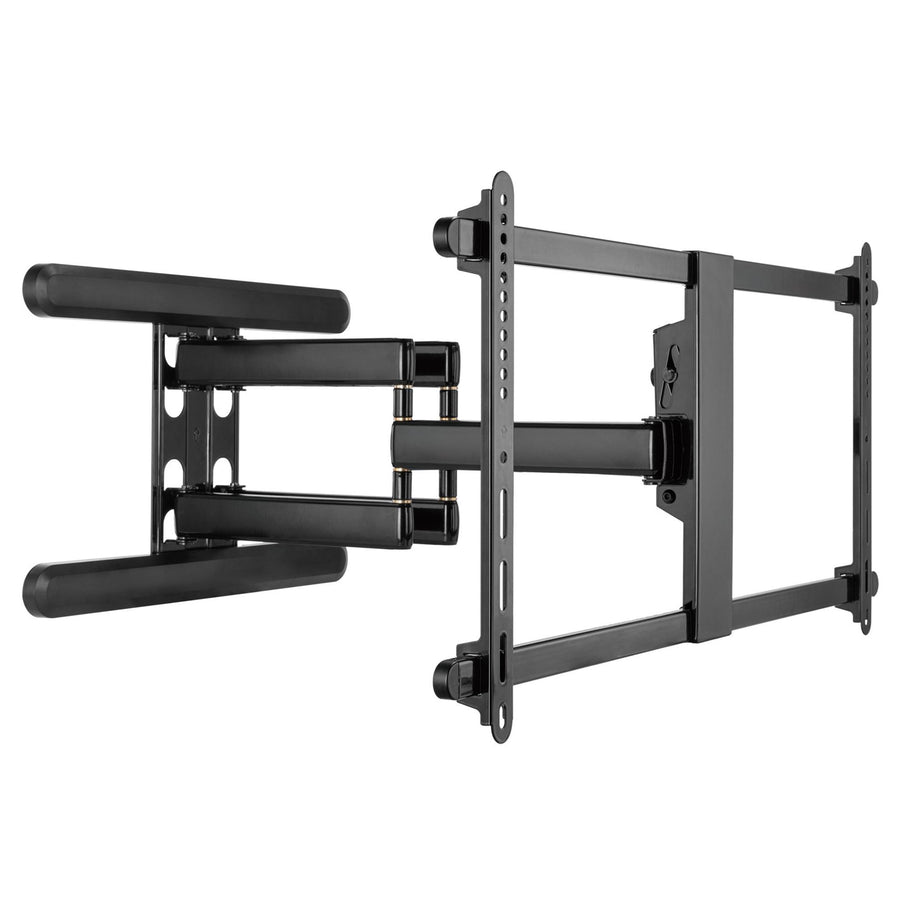

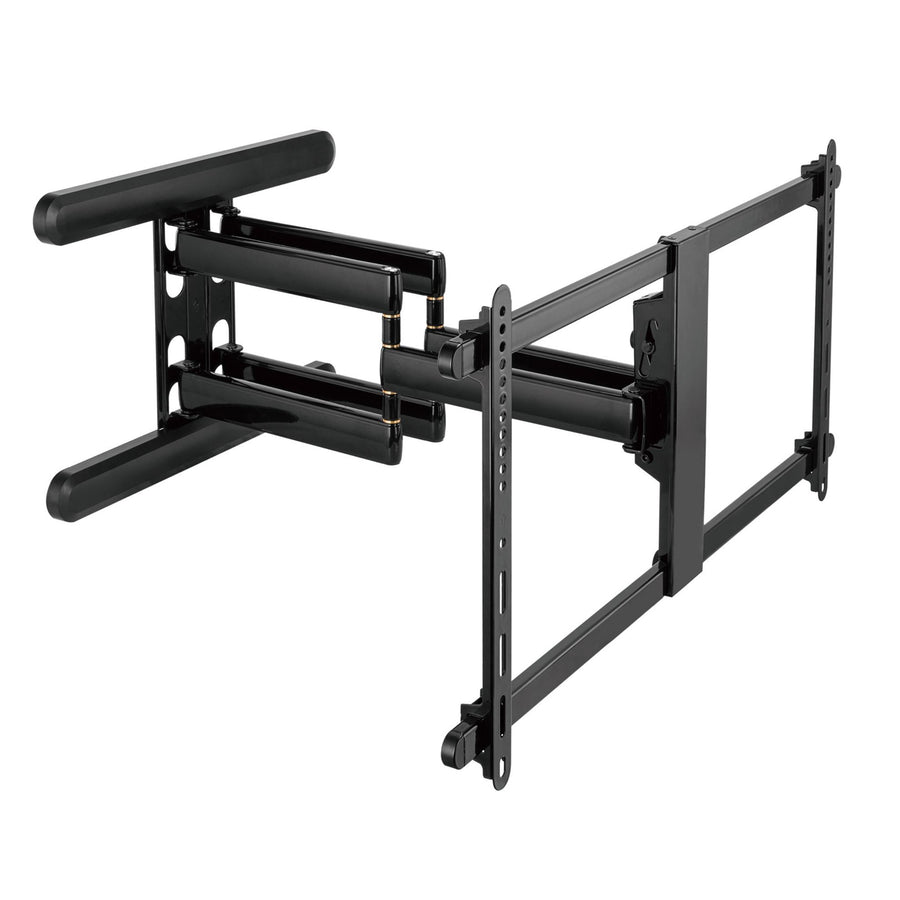

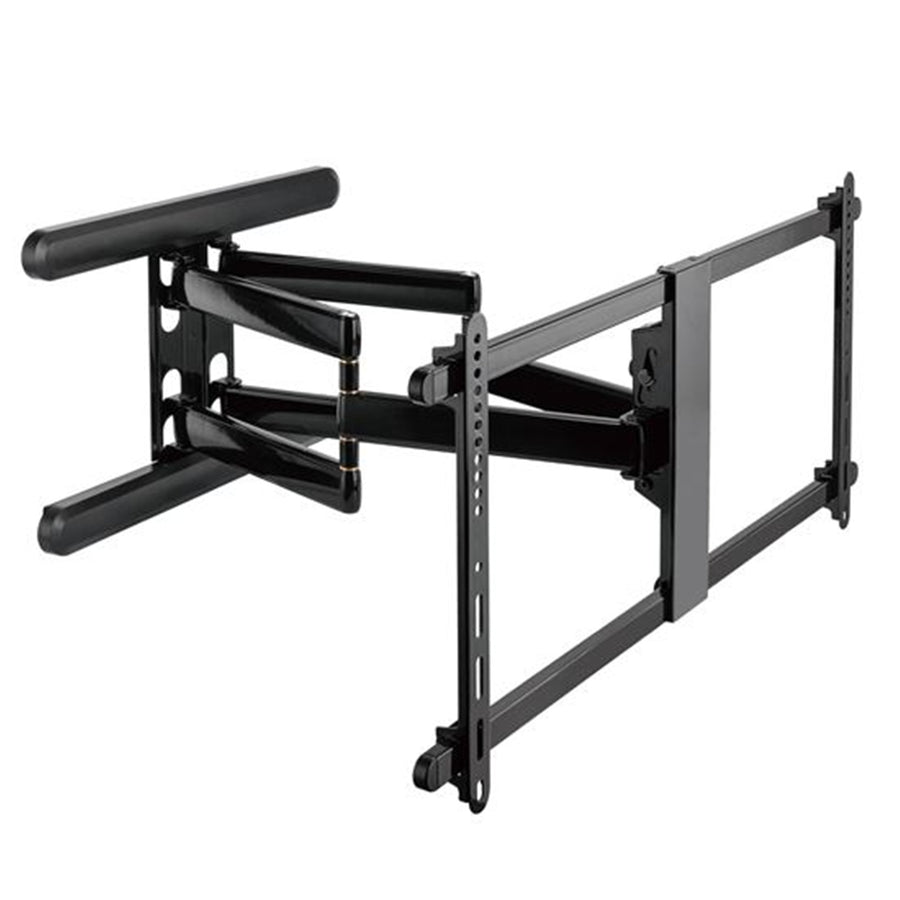

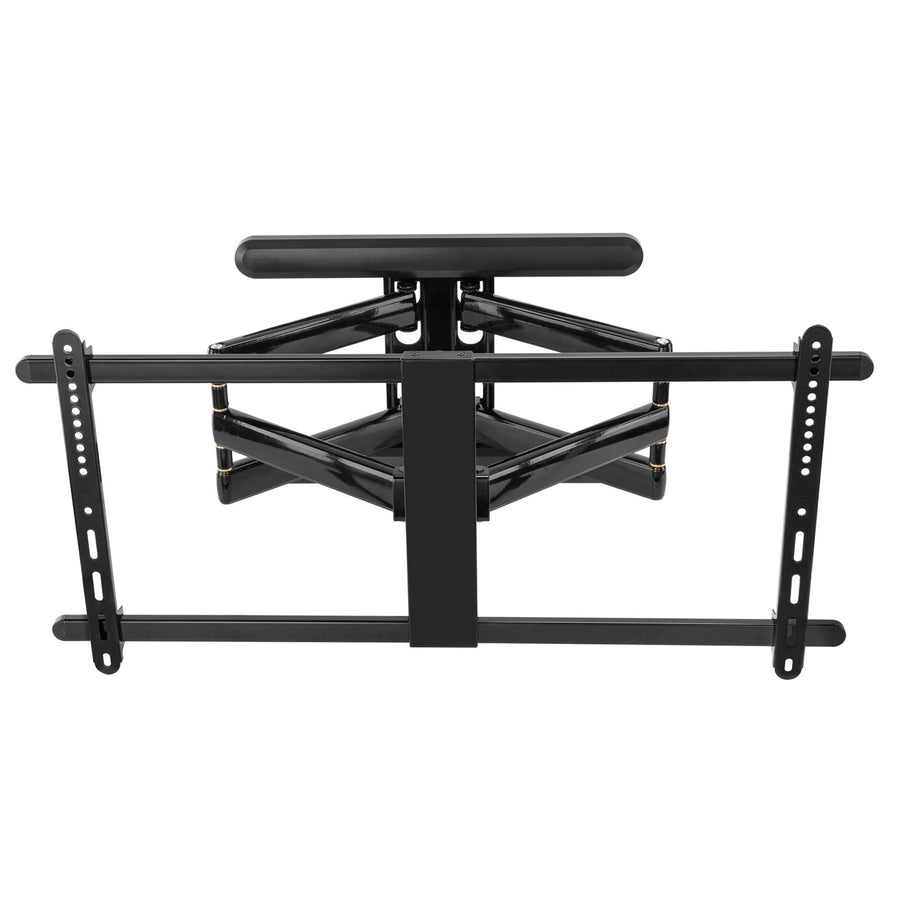

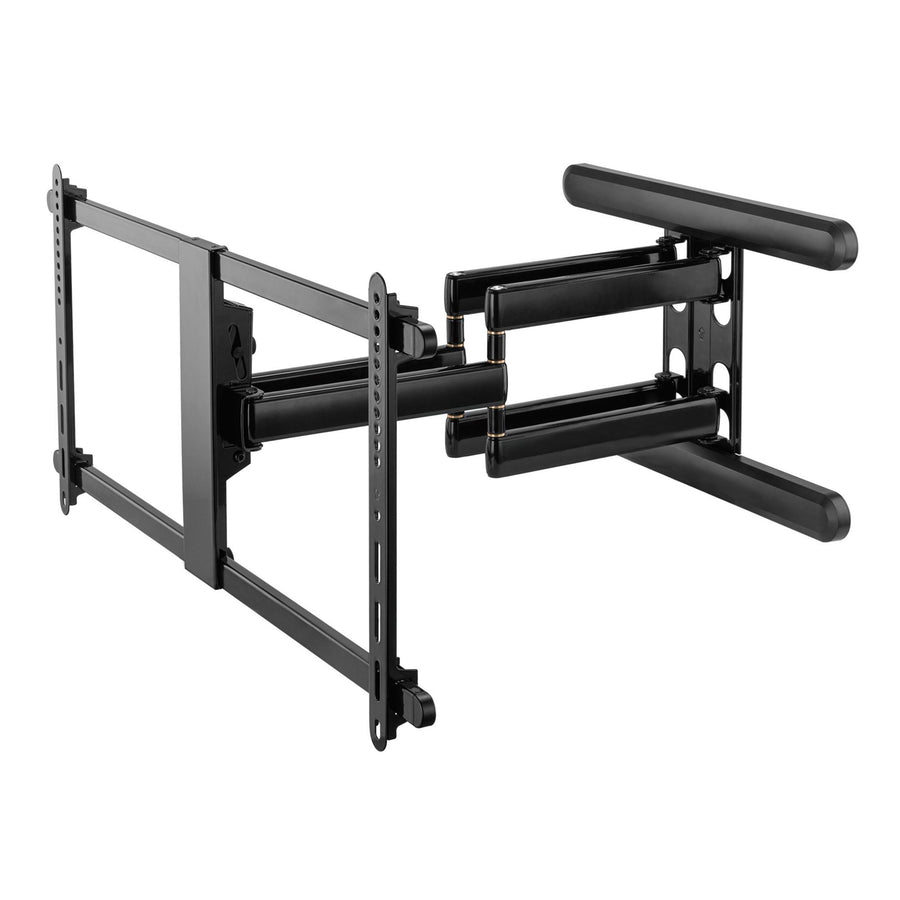

BRATECK LPA70-486 - 43-90'' Premium Full Motion TV Wall Mount Bracket w/ Tilt Design. Max VESA 800x400
Features
BRATECK Premium 43-90" Full Motion TV Wall Mount Bracket with Free Tilt Design. Max VESA 800x400, Max Load 70Kgs, Max Arm Extension 660mm, Bubble Level Included. Gloss Black

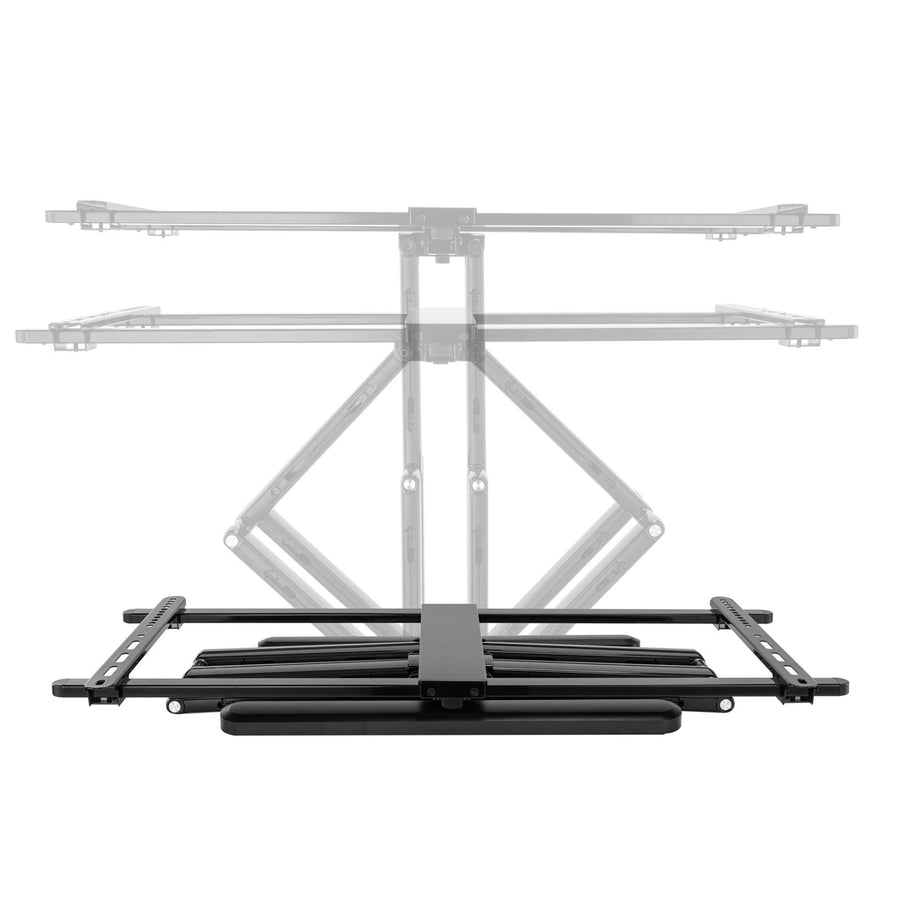

With a concise and contemporary design, the LPA70-486 strikes an ideal balance of aesthetics and functionality that provides a more enjoyable user experience. The mount securely supports TVs up to 70kg and offers a full range of motion that extends, retracts, tilts, and positions the TV to accommodate any room or viewing position. Unlike conventional TV wall mounts, the LPA70-486 becomes an eye-pleasing part of the interior décor. Extending or retracting your TV has never been easier - an improved structure with built-in copper bushings provides the smoothest movement when the mount is extended and folded back against the wall. Two multi-purpose cable clips elegantly hide and guide wiring keeping the mount and TV free from clutter and mess.
- Free-Tilting Design makes easy forward or backward adjustment for better viewing and reduced glare
- Swivelling arm(s) offer(s) maximum viewing flexibility (makes every seat the best seat)
- Built-In Copper Bushing for smoother movements
- Magnetic Contact easily attach the decorative covers

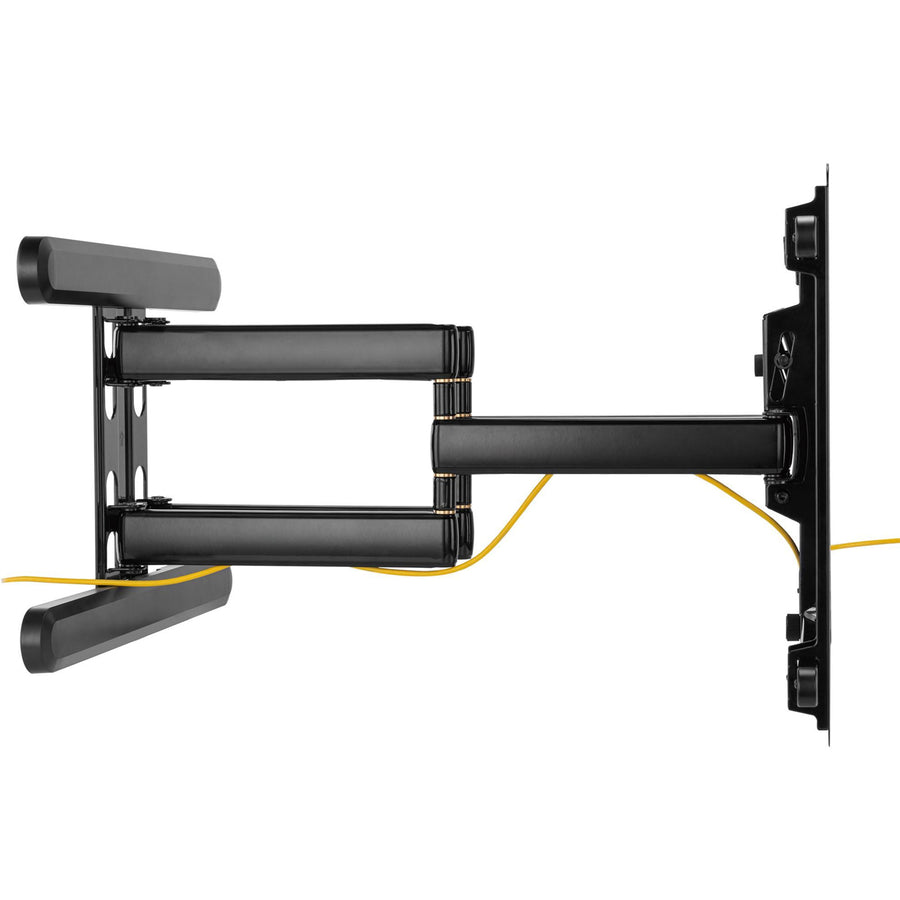

- Cable Clip routes cable to reduce clutter for a clean look and a more organized place
Specifications
Technical Specifications
| Product Category | Full-motion TV Wall Mount |
|---|---|
| Rank | Premium |
| Material | Aluminium, Steel, Plastic |
| Metal Sheet Thickness | VESA Panel THK=1.5mm cold-rolled sheet, VESA Panel THK=2mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (VESA Panel THK=0.059" cold-rolled sheet, VESA Panel THK=0.079" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet) |
| Surface Finish | Powder Coating, Electroplating |
| Colour Gloss | Black, Fine Texture White |
| Dimensions | 660x930x445mm |
| Fit Screen Size | 43"~90" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200x200, 200x300, 300x200, 200x400, 300x400, 300x300, 400x200, 400x300, 400x400, 600x400, 800x600, 800x400 |
| Max. VESA | 800x400 |
| Weight Capacity | 70kg |
| Strength Tested | 4 Times Approved |
| Profile | 69mm~660mm |
| Tilt Range | +5°~-10° |
| Swivel Range | +60°~-60° |
| Screen Level | +2°~-2° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Double Stud |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Anti-theft | No |
| Bubble Level | No |
| Accessory Kit Package | Compartment Polybag |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 11.791 kg |
| Warranty |
|---|
