BRATECK LVW02-48F - 37''-70'' Pop-Out Video Wall Mount Bracket Max Load 45kg Lateral Shift Brackets w/
Features
BRATECK 37"-70" Pop-Out Video Wall Mount Bracket. Max Load 45kg. Lateral Shift Brackets with Built-In Level Adjustment. Anti Theft Locking Hole. Max. VESA 800 x 400. Black

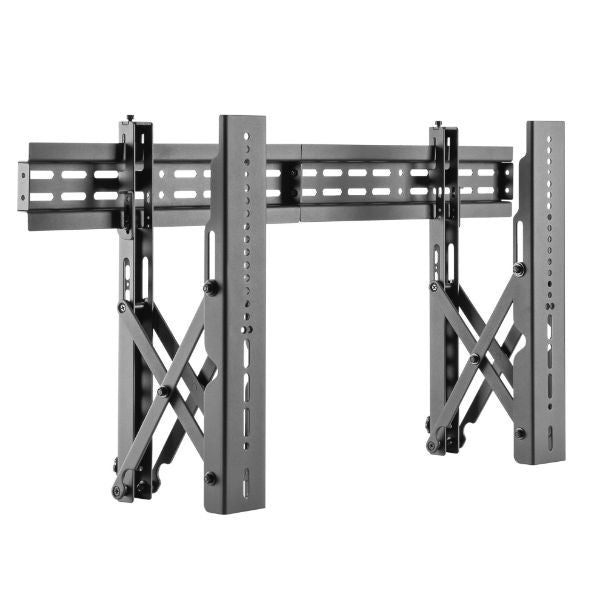

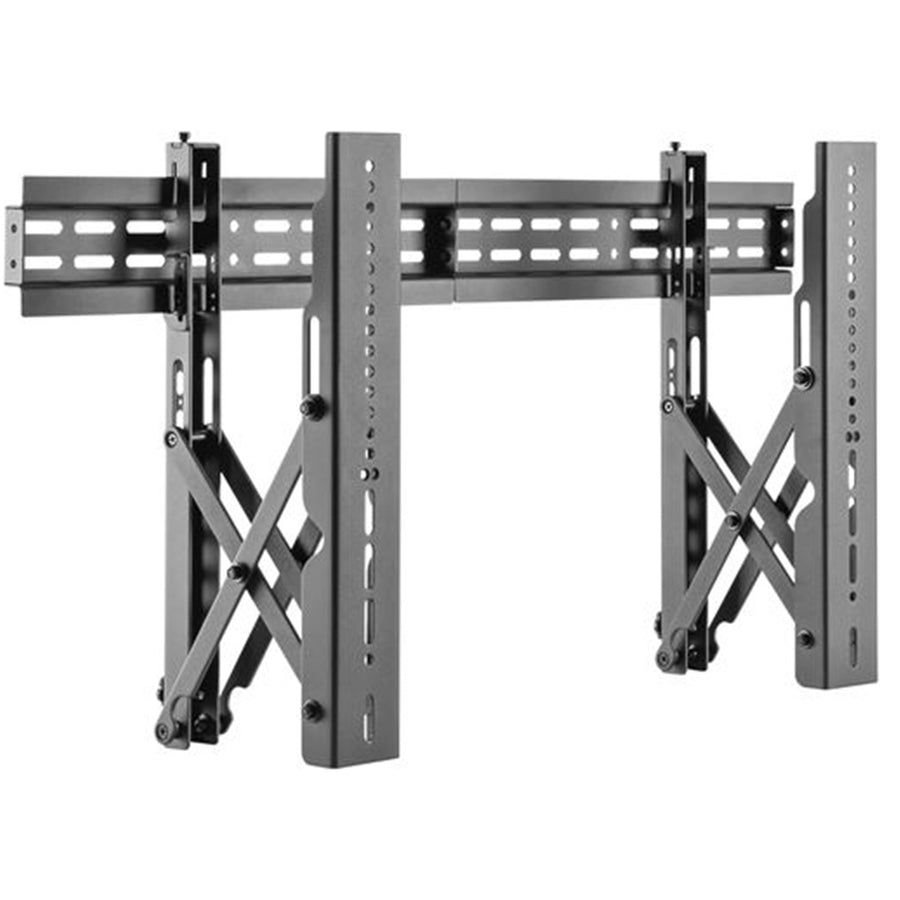

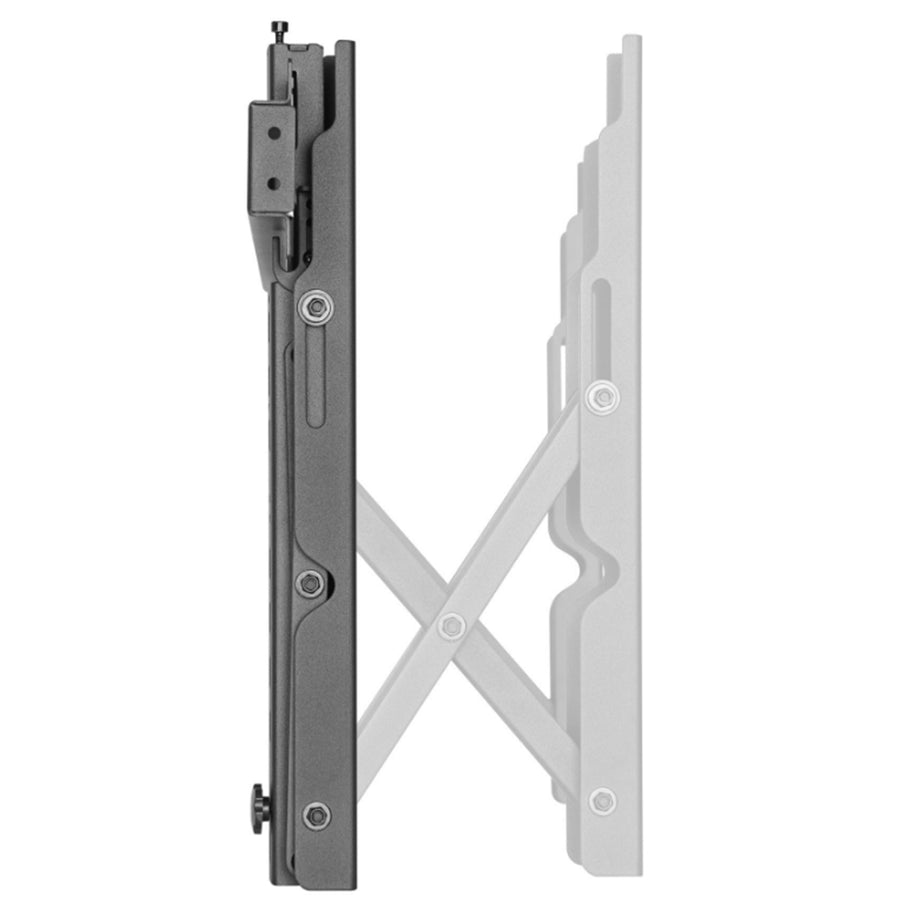

LVW02-48F is a professional video wall mount designed to offer the ultimate versatility and universal compatibility with a load capacity of 45kg and max. VESA 800x400 hole pattern. This mount extends out 202mm from the wall and places 60mm to the wall when retracted. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with an anti-theft design (require for a padlock).
- Lateral Shift Brackets enable width adjustment and fast alignment
- Built-In Level Adjustment ensures perfect positioning
- Connecting wall plates make it easy to create longer menu boards
- Anti-Theft Locking Hole for additional security preventing any unwanted removal (extra padlock required)
Specifications
Technical Specifications
| Product Category | Video Wall Mount |
|---|---|
| Material | Steel |
| Metal Sheet Thickness | Wall Plate THK = 2mm cold-rolled sheetBracket Arm THK = 2.5mm cold-rolled sheet |
| Surface Finish | Powder Coating |
| Colour | Fine Texture Black |

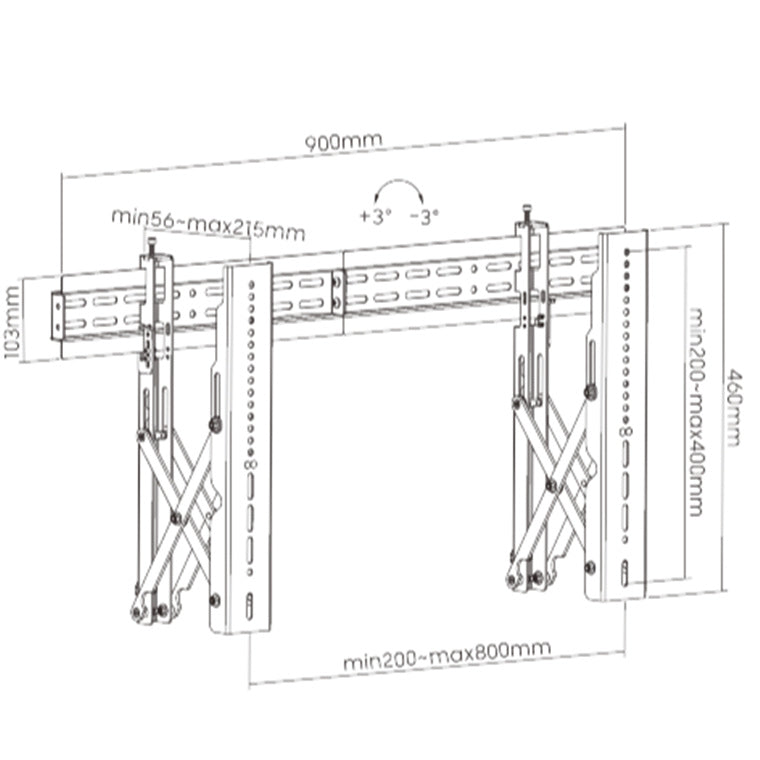

| Dimensions | 900x465x215mm |
| Fit Screen Size | 37"~70" |
| VESA Compatible | 200x200, 400x200, 300x300, 400x400, 600x400, 800x400 |
| Max. Mounting Hole | 800x400 |
| Weight Capacity(Per Screen) | 45kg |
| Screen Qty | 1 |
| Strength Tested | 4 Times Approved |
| Profile | 56m~215mm |
| Screen Level | +3°~-3° |
| Installation | Solid Wall |
| Cable Management | No |
| Anti-theft | Yes |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Instruction Manual Included | Yes |
| Screw Kit for Samsung TV | No |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 7.302 kg |
| Warranty |
|---|
