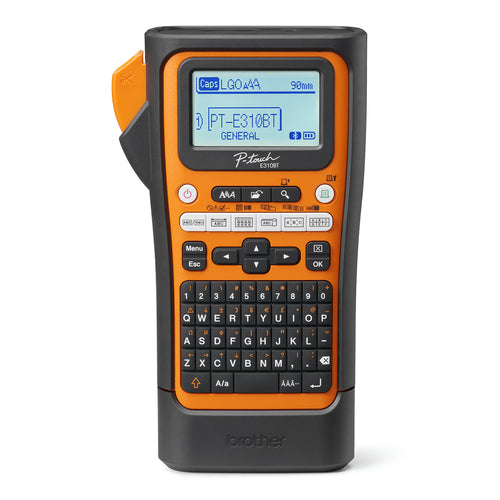

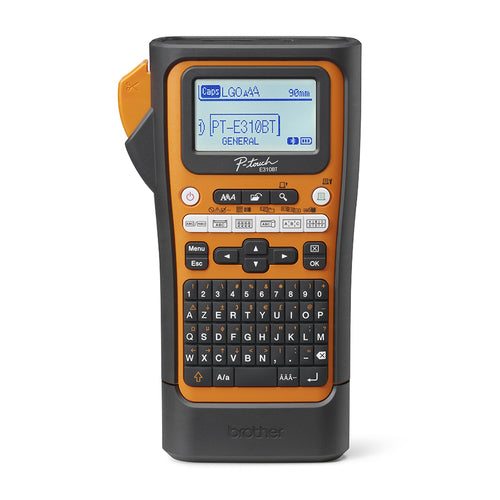

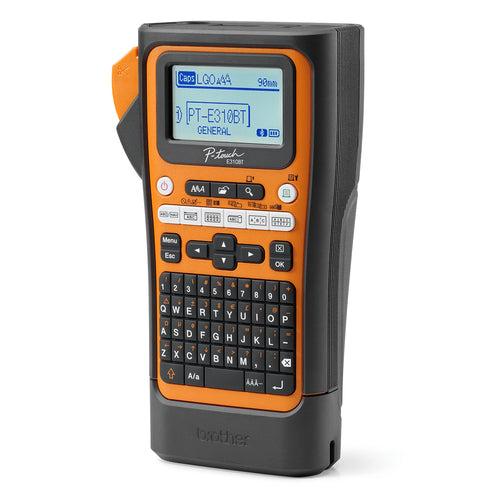

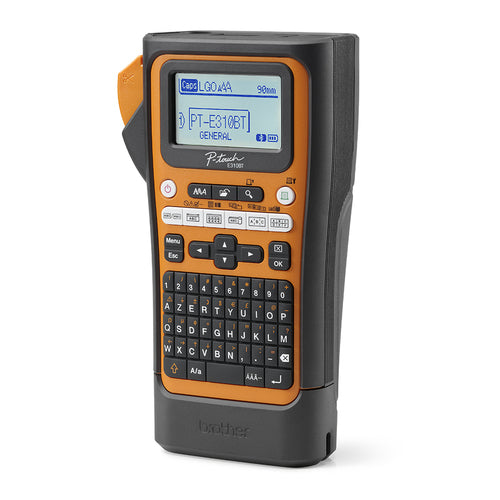

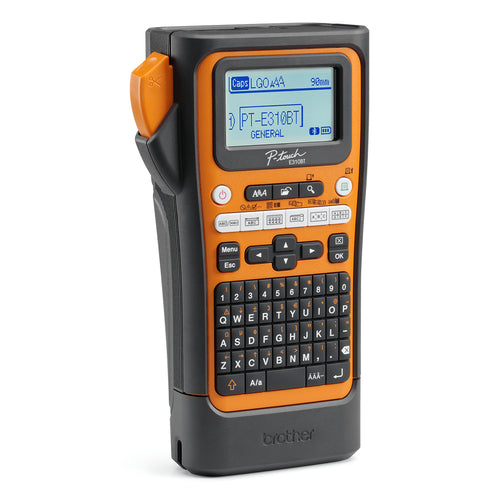

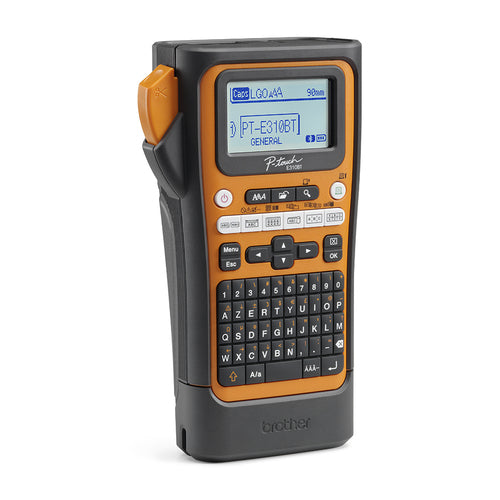

Brother PTE310BTVP - THERMAL LABEL MAKE
Brother PTE310BTVP - THERMAL LABEL MAKE
Overview

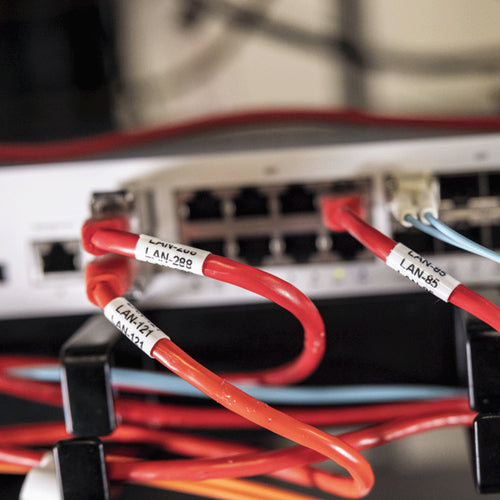

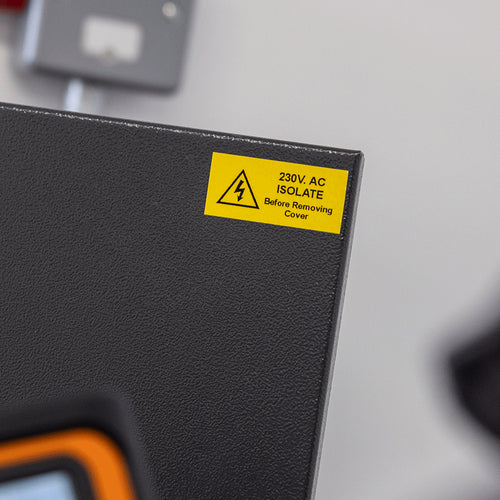

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.
- Built-in specialist labelling functions and 476 industry symbols
- Industrial strength cutter with pause function to reduce waste
- Print labels from a PC, smartphone or tablet via USB and Bluetooth connectivity
- QWERTY style keyboard + 16 character, 3 line large backlit graphic display to preview labels before printing
- Prints 3.5, 6, 9, 12 and 18mm labels

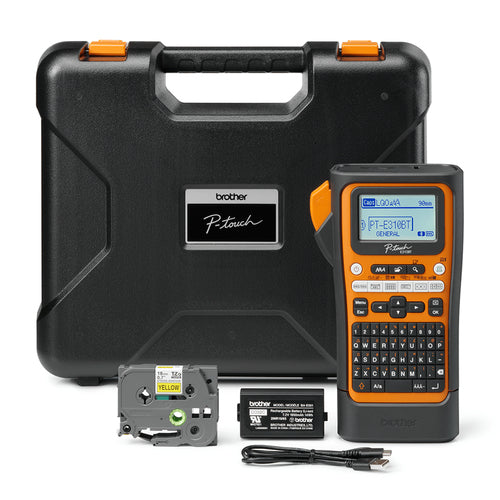

- Includes TZe-S641 (black on yellow strong adhesive) tape cassette, rechargeable Li-Ion battery, USB cable and carry case
Technical Specifications
| Print technology | Thermal transfer |
|---|---|
| Colour | N |
| Maximum resolution | 180 x 180 |
| Number of printable dots | 128 |
| Print speed | 20 |
| Maximum printing width | 15.8 |
| Maximum print height | 18 |
| Vertical printing | Y |
| Mirror printing | Y |
| Rotated printing | Y |
| Maximum print length | 1 |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | N |
| Wi-Fi | N |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| USB port | Y |
| Built-in barcodes | CODABAR (NW-7),Code 128 (A/B/C),Code 39,Data Matrix,EAN13,GS1-128,UPC-A,UPC-E |
| Number of symbols | 477 |
| Number of fonts | 7 |
| Tape type | HSE/TZe |
| Number of printing lines (max) | 5 |
| Underline | Y |
| Product colour | Black,Orange |
| Keyboard number of keys | 64 |
| Built-in display | Y |
| Display | LCD |
| Backlight display | Y |
| Keyboard layout | QWERTY |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Auto power off | Y |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery weight | 190 |
| Battery capacity | 14 |
| Rechargeable battery | Y |
| Windows operating systems supported | Windows 10,Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
| Mobile operating systems supported | Android 10,Android 9.0,iOS 11.0,iOS 12,iOS 13,iOS 15,iOS 16 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 10 - 35 |
| Storage temperature (T-T) | -20 - 60 |
| Width | 135 |
| Depth | 236 |
| Height | 70 |
| Weight | 800 |
| Package width | 126 |
| Package depth | 334.4 |
| Package height | 393 |
| Package weight | 3080 |
| Cables included | USB |
| Batteries included | Y |
| Quick start guide | Y |
| Warranty card | Y |
| Wrist strap included | Y |
| Pallet gross height | 165 |
| Pallet gross weight | 258000 |
| Master (outer) cases per pallet | 24 |
| Master (outer) cases per pallet layer | 6 |
| Layers per pallet | 4 |
| Products per pallet | 72 |
| Multi-block | 99 |
| PC connection | USB 3.2 Gen 1 (3.1 Gen 1) |
| Sustainability compliance | Y |
| Sustainability certificates | ENERGY STAR |
| Pallet type | 1200 x 1000 mm |
| Memory capacity | 1500 |
| Print preview | Y |
| Label memory | 99 |
| Number of frames | 7 |
| Languages support | Multi |
