DYNAMIX C-C6-SLD24-WH - 305m Cat6 White UTP Solid Cable Roll 250MHz 24AWGx4P PVC CM UL Rated Jacket
Features

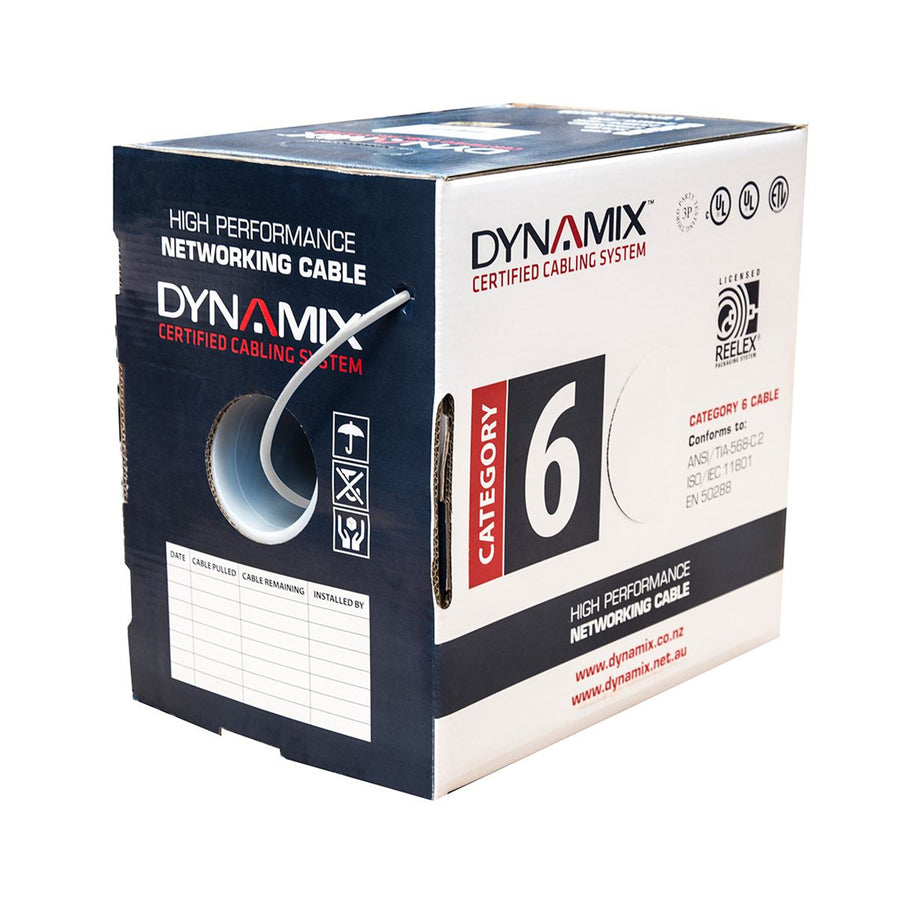

DYNAMIX 305m Cat6 White UTP SOLID Cable Roll, 250MHz, 24AWGx4P, PVC Jacket. Supplied in a REELEX box.
- 305m Roll
- 250MHz, 24AWGx4P
- PVC Jacket
- Colour: White

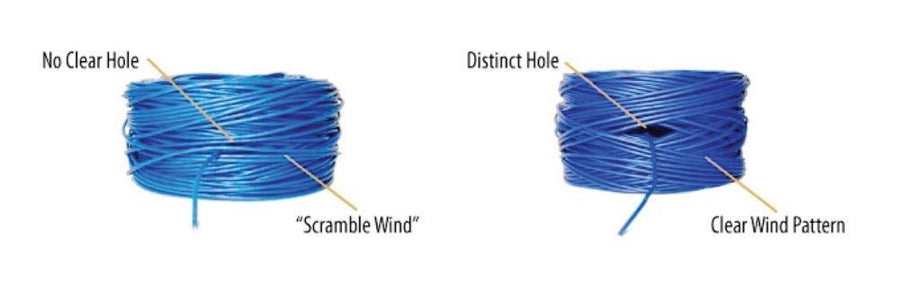

REELEX II™ is a trademark, which incorporates both the tube design and the coil itself. Sometimes called "wide mouth" packages, REELEX II coils are made by weaving a much larger payout hole into the coil and thus require a larger diameter tube.

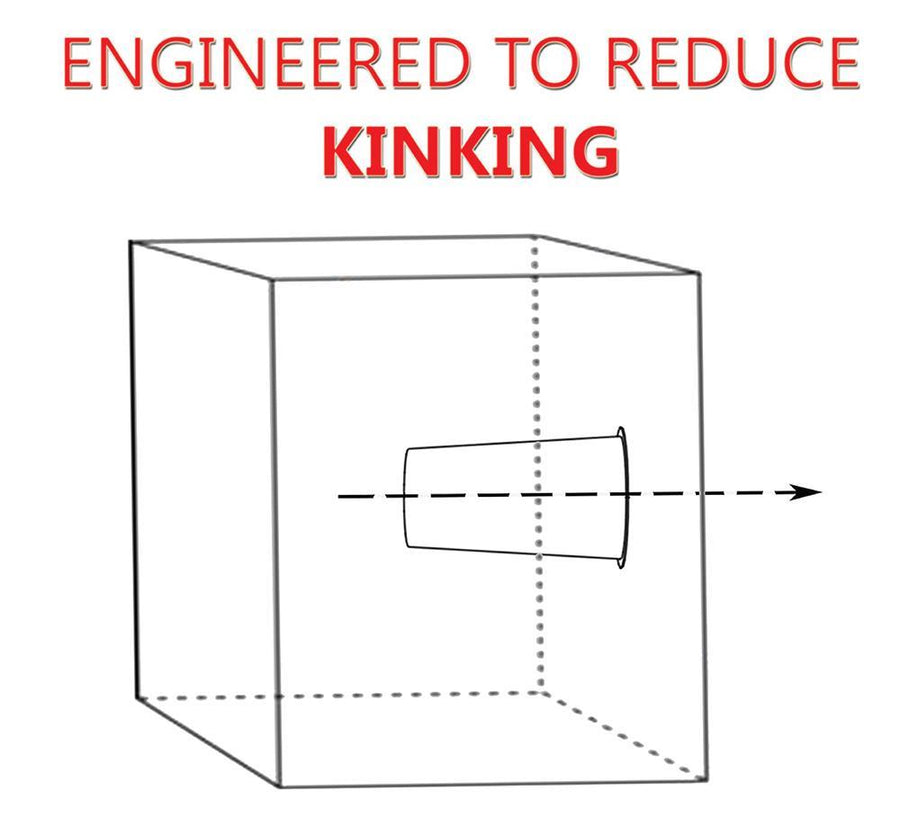

This winding method was developed to improve the payout performance of all products and to increase the bend radius of the Category cable. The larger payout hole and tube were found to help significantly with LAN cable signal performance while also smoothing the payout of cables with inherent twisting.
Specifications
Technical Specifications
| Material | SOLID-Bare Copper |
|---|---|
| AWG | 24AWG |
| Material | HDPE |
| Diameter | 0.87 ±0.03mm |
| Colour | A. White-Blue, BlueB. White-Orange, OrangeC. White-Green, GreenD. White-Brown, Brown |
| Rip-cord | Yes |
| Drain Wire | No |
| Thickness | 0.55 ±0.05mm |
| External O.D. | 4.9 ±0.4mm. |
| Surface | Clean, Frap, Satiation |
| Material | PVC (RoHS Complied) & CM rated (UL E225668) |
| Colour | White |
| Before Aging | Tensile Strength (Mpa) =13.5/Elongation (%) =150 |
| Ageing Period (°C x hrs) | 100°C x 24h x 7d |
| After Aging | Tensile Strength (Mpa) =12.5/Elongation (%) =125 |
| Cold Blend (-20 ±2°C x4h) | No visible cracks |
| 1.0-250.0MHz, Characteristic impedance (O) | 100 ±15 |
| 1.0-250.0MHz, Delay Shew (ns/100m) | =45 |
| DC Resistance (O/100m) max | 11.0 |
| DC Conductor Resistance Unbalance (%) max | 5.0 |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 11.4 kg |
| Warranty |
|---|
