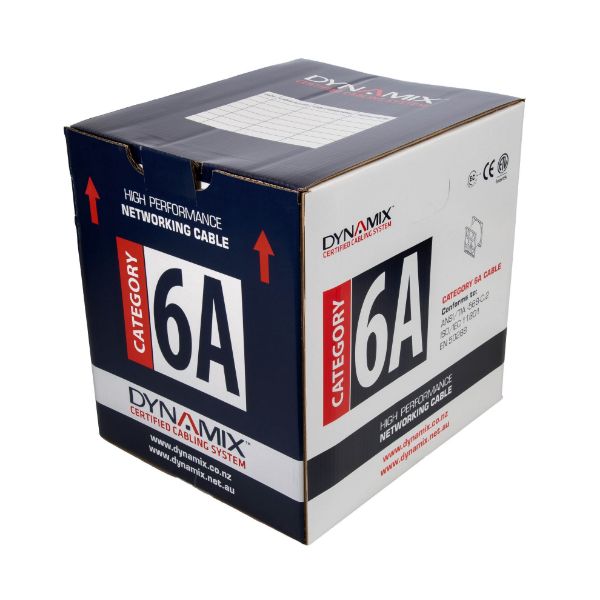

C-C6AUTPL-SLDWH - DYNAMIX C-C6AUTPL-SLDWH - 305m Cat6A White 10G UTP Solid Cable 23AWGx4P 500MHz LSZH CM UL Rated Jacket.
Features
The DYNAMIX CAT6A U/UTP Ethernet Cable is engineered for high performance, utilising a robust 23AWGx4P construction. Available in both grey & black & offered with PVC & LSZH (low smoke zero halogen) jackets, this cable ensures safety & durability. The colour options not only provide a sleek, professional look to your network setup but also signify compliance with international standards. This CAT6A cable meets rigorous specifications, adhering to ISO/IEC 11801, ANSI/TIA-568.2-D, EN 50173, & IEC 61156-5 standards.
Features
- CAT6A 10G U/UTP 305m cable roll
- 500MHz, 23AWG x4P, solid bare copper
- Available in PVC & LSZH CM-rated outer jacket, UL listed
- HDPE (High-Density Polyethylene) inner insulation
- Supplied in a REELEX II pull box
- NVP: 69%
Applications
- Broadband Network Communication
- Security systems
- Office equipment
- Audio and Data Transmission
- Ethernet Network
Specifications
Technical Specifications
| Material | Solid-Bare Copper |
|---|---|
| Nom. O.D.(mm) | 0.565Up: +0.005Down: -0.005 |
| Material | HDPE |
| Diameter | 1.02±0.08mm |
| Thickness | 0.70±0.05 mm |
| External O.D. | 7.1±0.4 mm |
| Surface | Clean, Frap, Satiation |
| Material | PVCLSZH (complies RoHS) |
| Colour | White |
| Letter height | 3.0±0.3mm |
| Colour | Black |
| Print error & Space | ≤ ±0.5%, 1m |
| Rip-cord | Yes (No Drain Wire) |
| Before Aging Tensile Strength (Mpa) | ≥13.5 |
| Before Aging Elongation (%) | ≥150 |
| Aging Period (˚C x hrs) | 100˚C x 24h x 7d |
| After Aging Tensile Strength (Mpa) | ≥12.5 |
| After Aging Elongation (%) | ≥125 |
| Cold bend (-20 ±2˚C x4h) | 8x Cable O.D. No visible cracks |
| Impedance (Ω) | 1.0~250.0MHz 100±15Impedance (Ω) 250.0~500.0MHz 100±22 |
| 1.0~500.0MHz, Delay Skew (ns/100m) | ≤45 |
| DC Resistance (Ω/100m) | Max 9.38 |
| DC Conductor Resistance Unbalance (%) | Max 5.0 |
| Brand | DYNAMIX |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 7.574 kg |
| Warranty |
|---|
