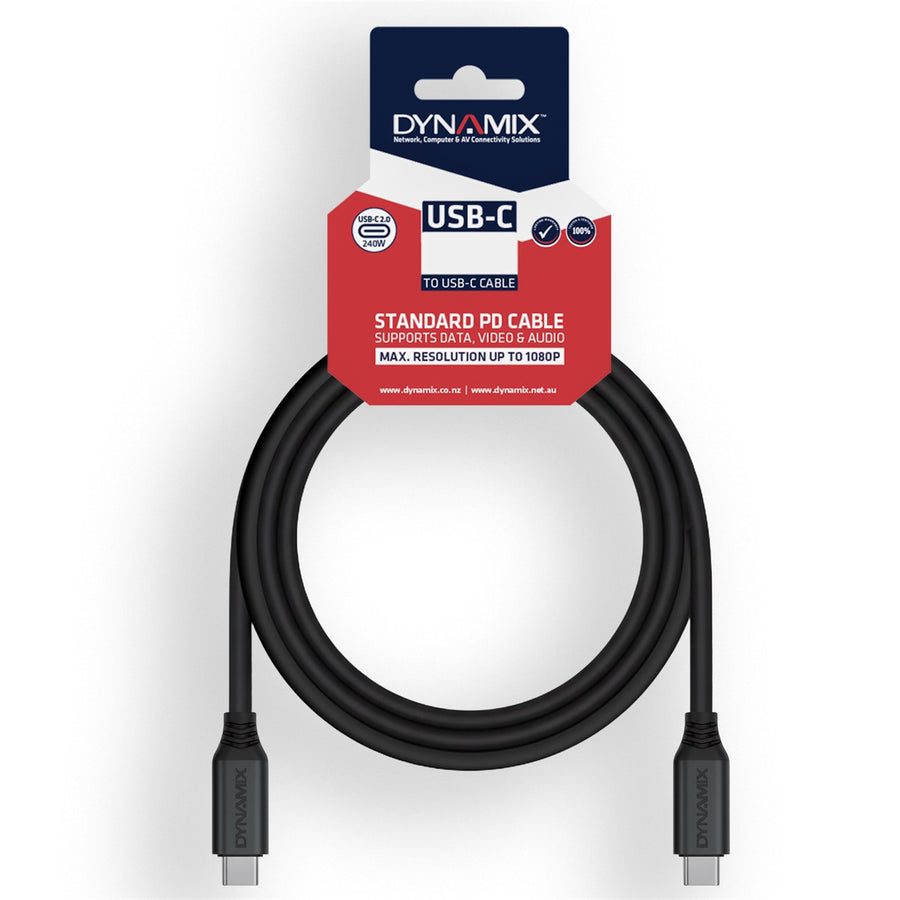

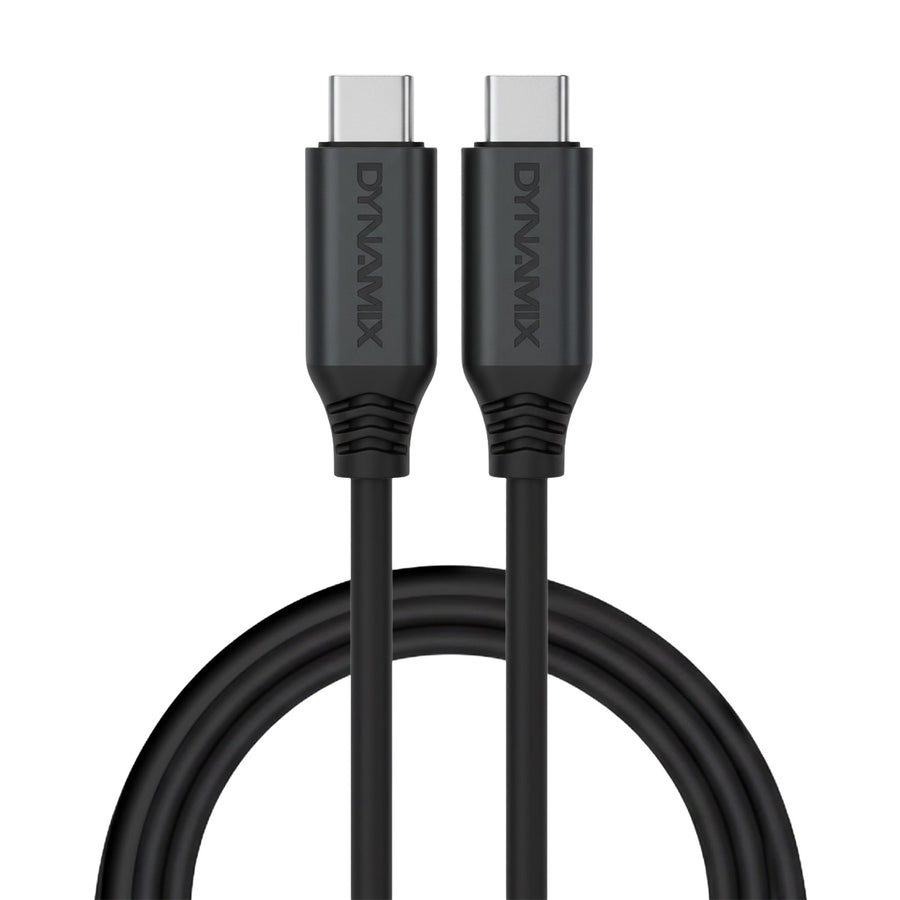

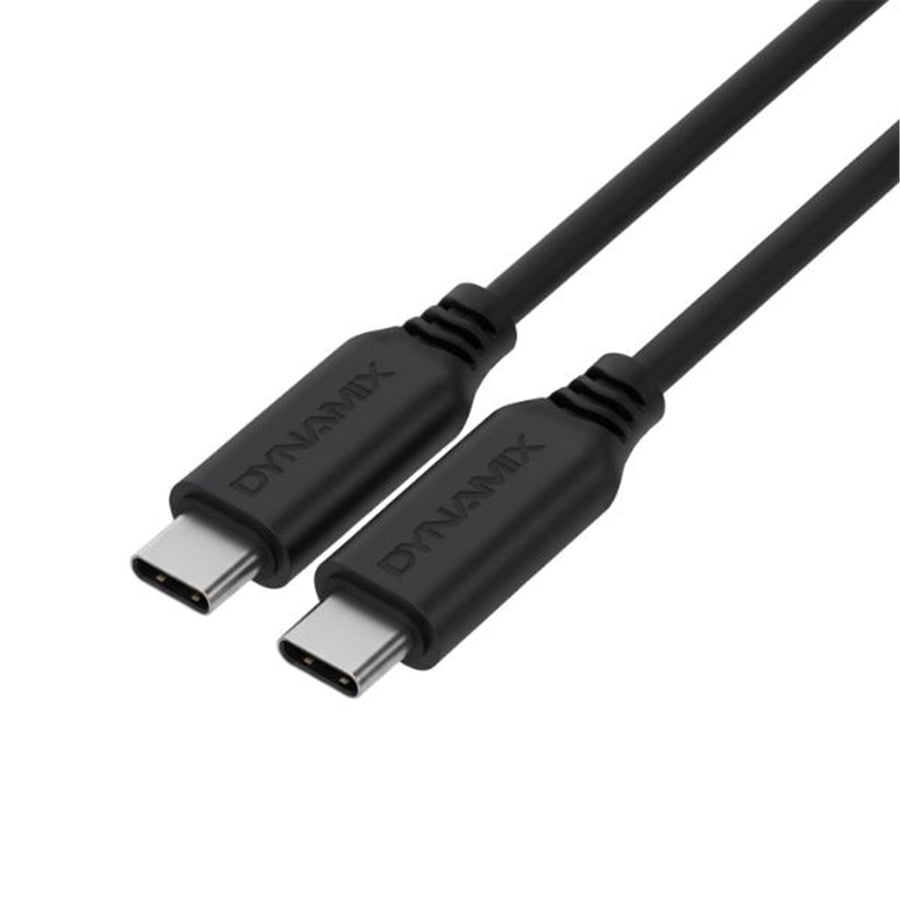

DYNAMIX C-U20-CC-0-5 - 0.5M 240W/5A USB 2.0 USB-C
Features
The DYNAMIX U20 series is a USB 2.0 C Male to C Male cable designed for high-performance charging & reliable data transfer. Supporting up to 240W Power Delivery, this cable is ideal for powering laptops, docking stations, & other high-demand USB-C devices. Constructed with tinned copper conductors, aluminium foil shielding, & braided protection, it delivers stable signal transmission & enhanced durability. Premium gold-plated connectors with nickel plated shell & a reinforced PVC jacket provide long-lasting performance, while compliance with UL, RoHS, REACH, & TSCA standards ensures safety & quality.
- USB-C To USB-C Connectors
- Supports Up To 240W Power Delivery
- Up To 480mbps Data Transfer
- Contact Pins: Gold-Plated
- Connector Shell: Nickel Plated
- Aluminium/Mylar Foil Shielding
- Durable Black PVC Jacket (4.8mm OD)
- Withstands DC 300V/0.01 seconds
- ROHS, REACH & TSCA Compliant
Specifications
Technical Specifications
| Connector Type | USB-C Male/USB-C Male |
|---|---|
| Data Standard | USB 2.0 |
| USB2.0 Transfer Rate | 480mbps |
| Power Rating | Up to 240W |
| E-Marker Chip Included | Yes |
| Supply Voltage | DC 48V/5A |
| Power Consumption | ≤0.5W |
| Operating Temperature | -40˚C~+70˚C |
| Outer Jacket | PVC (Black) |
| Wire Configuration | 1P*28AWG + 2C*32AWG + 2C*22AWG + AL + D + B |
| Contact Plating | Gold Plated |
| Conductor Material | Tinned Copper |
| Shielding | Aluminium Mylar (100% coverage) + Tinned Copper Braid (65% min) |
| Outer Diameter | 4.8 ± 0.15mm |
| Insulation Resistance | ≥ 5MΩ |
| Conductor Resistance | ≤ 3Ω |
| Compliance | UL AWM Style 2725, RoHS, REACH, TSCA |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.1 kg |
| Warranty |
|---|
