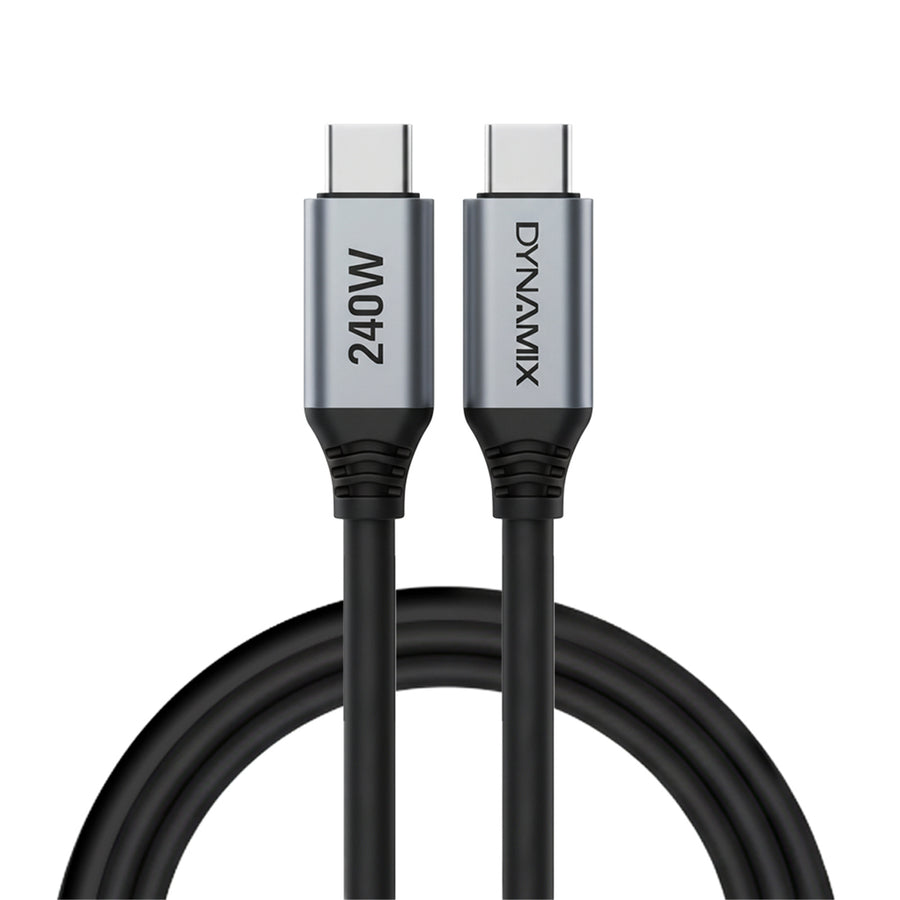

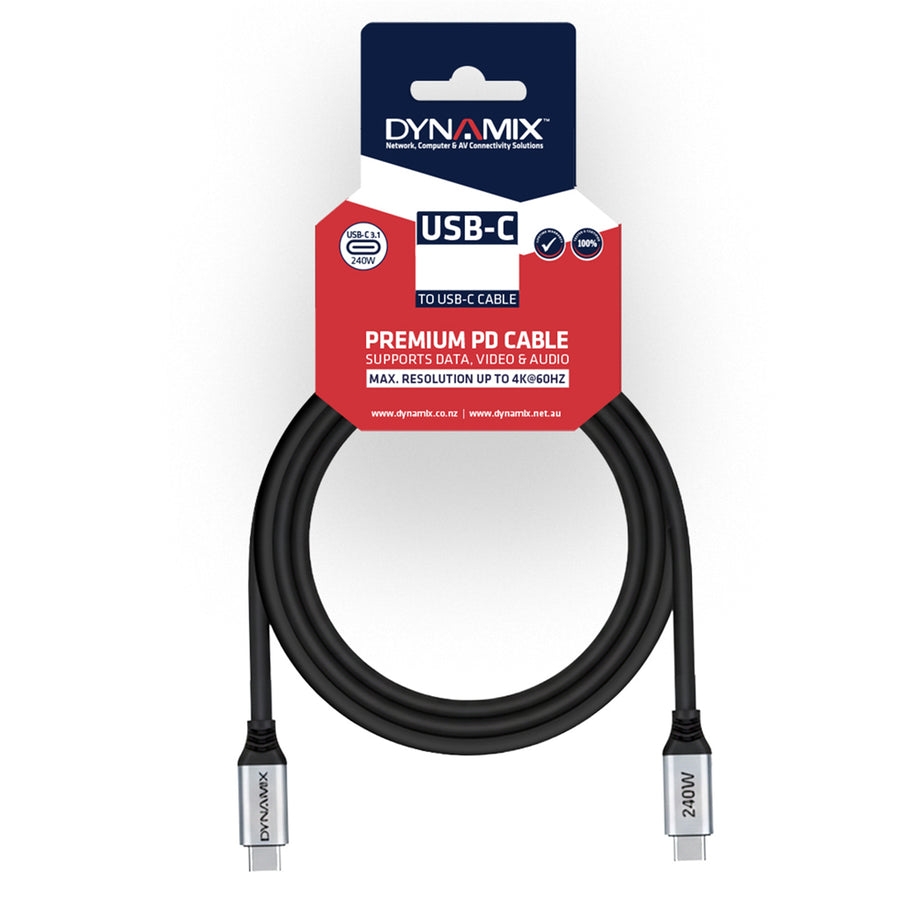

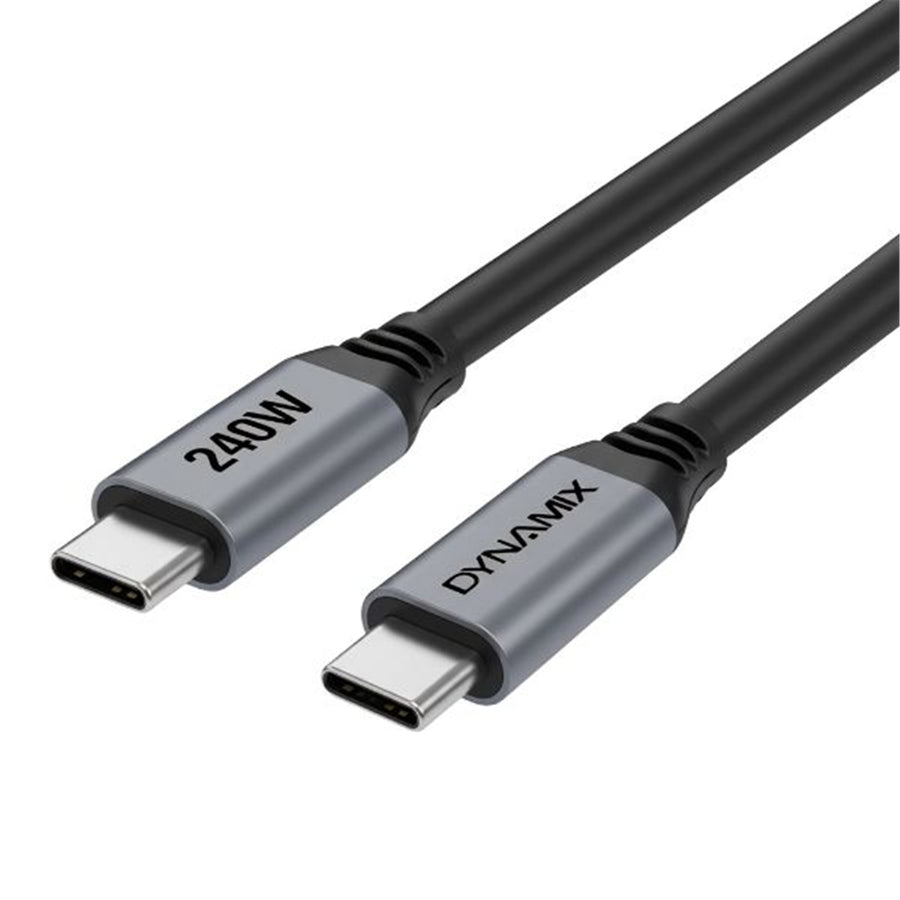

Dynamix C-U31-CCPR-0-5 DYNAMIX 0.5M Premium 240W/5A USB 3.1 GEN2 USB-C
Features
The Dynamix U31 Series is a high-performance 240W USB 3.1 USB-C to USB-C cable engineered for ultra-fast power delivery, high-speed data transfer, & high-resolution video support. It is ideal for laptops, docking stations, monitors, & other USB-C enabled devices requiring stable, high-capacity charging & connectivity. Up to 10gbps of data transfer, the U31 cable supports up tp 4K @ 60Hz video output with HDR10 & 10-bit colour, making it suitable for professional displays & high-definition media applications. Built with tinned copper conductors, aluminum/mylar shielding, & a minimum 70% braided shield, it ensures excellent signal integrity & reduced electromagnetic interference. The durable black PVC jacket & reinforced molded connectors provide long-lasting performance for both professional & everyday use.
- Supports up to 240W Power Delivery (PD 3.1)
- Up to 10gbps data transfer
- Supports 4K @ 60Hz video output
- HDR10 support with 10-bit colour
- USB-C to USB-C connectivity
- Aluminum/Mylar shielding
- Tinned copper conductors
- Multi-layer shielding design for enhanced signal integrity
- Durable black PVC jacket (4.8 ± 0.15mm OD)
- Gold-plated contacts for reliable connection
- Passed 100% open, short, & missing wire testing
- Rated for 80°C operating temperature
Specifications
Technical Specifications
| Connector Type | USB-C Male/USB-C Male |
|---|---|
| USB3.1, USB3.0 Transfer Rate | 0.5m & 1m - 10gbps 1.5m & 2m - 5gbps |
| Power Rating | Up to 240W (PD 3.1) |
| E-Marker Chip | Yes |
| Voltage Rating | Up to 48V DC |
| USB Standard | USB 3.1 Gen1/Gen2 |
| Video Support | 4K @ 60Hz |
| HDR Support | HDR10, 10-bit Colour |
| Contact Plating | Gold Plated |
| Conductor Material | Tinned Copper |
| Conductor Sizes | 4P*30AWG+DAM, 1P*30AWG, 4C*32AWG, 2C*22AWG+F+ADB |
| Shielding | Aluminum/Mylar + Braided Shield |
| Braid Coverage | 70% Minimum |
| Drain Wire | Tinned Copper |
| Jacket Material | PVC (Black) |
| Outer Diameter | 4.80± 0.15 mm |
| Temperature Rating | 80°C |
| Insulation Resistance | ≥5MΩ |
| Withstanding Voltage | DC 300V / 0.01 sec |
| Conductor Resistance | ≤3Ω |
| Compliance | RoHS, REACH, TSCA |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals |
| Weight | 0.03 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
