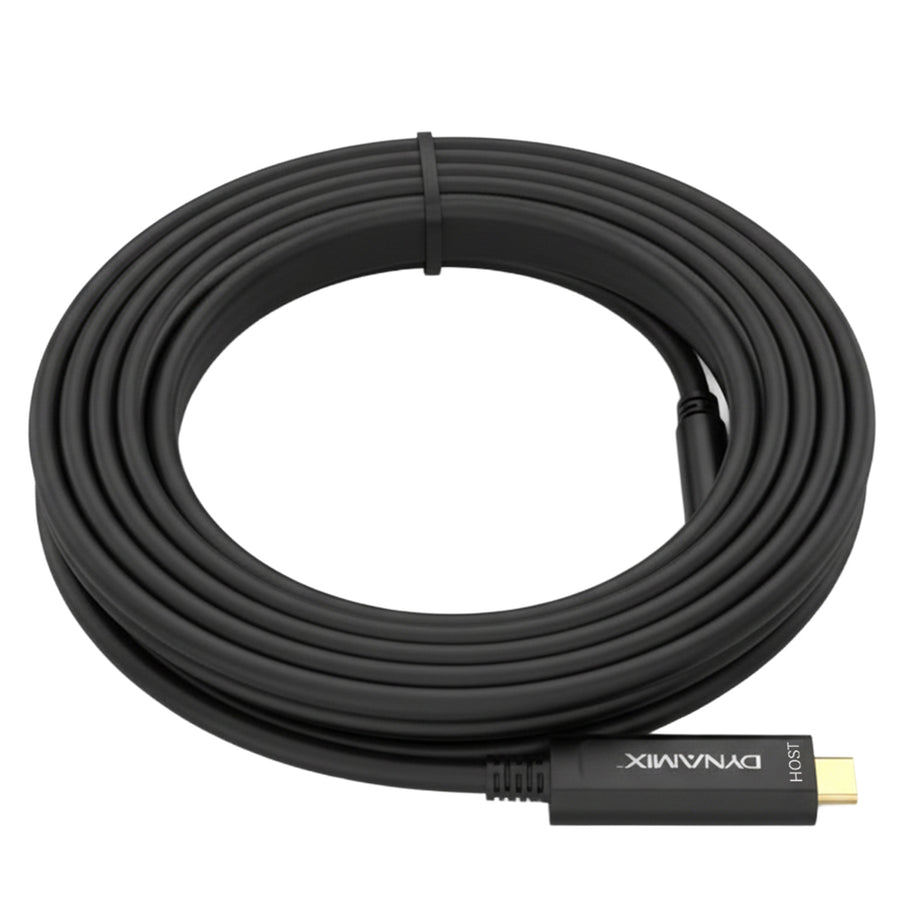

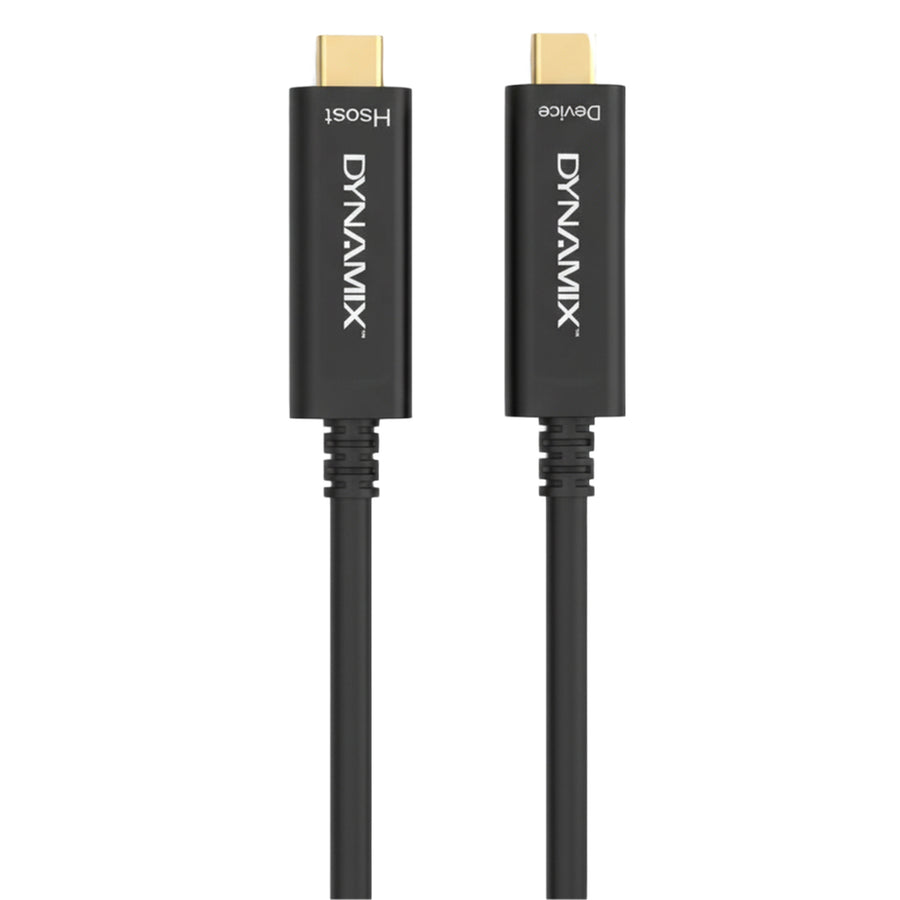

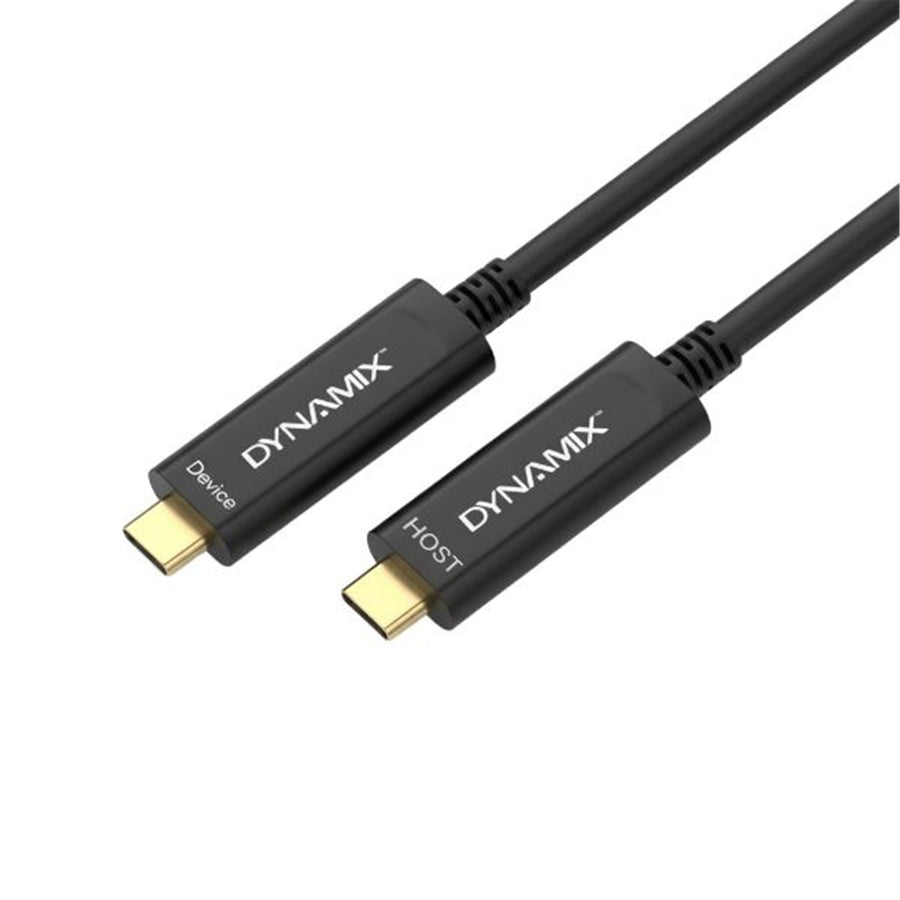

Dynamix 10M USB 3.2 Type C to C Hybrid Active Optical Cable
Features
The DYNAMIX C-U32-LL-CC is a USB 3.2 Gen2 Type-C to Type-C Active Optical Cable (AOC) designed for high-speed data transmission over extended distances. Utilizing a hybrid copper & fiber architecture, it enables stable 10gbps data transfer while minimising signal loss & eliminating electromagnetic interference (EMI), making it ideal for long-distance USB connectivity beyond traditional copper limitations.
Engineered for professional & commercial environments, the cable supports plug-and-play operation & is backward compatible with USB 2.0 & USB 1.1 standards. Support lengths up to 15m & wide system compatibility, the Dynamix C-U32-LL-CC provides a reliable solution for high-performance USB data transmission applications.
- USB 3.2 Gen2 compliant
- Data transfer speeds up to 10gbps
- Hybrid fiber + copper construction
- Supports cable lengths up to 15m
- No external power required
- Plug-and-play design
- Supports charging up to 800mA/5V DC
- Backward compatible with USB 2.0/1.1
- No RF interference; stable in complex environments
- Data-only configuration
Specifications
Technical Specifications
| Connector Type | Type C Male Type C Male |
|---|---|
| USB Standard | USB 3.2 Gen2 |
| Maximum Data Rate | Up to 10gbps |
| Backward Compatibility | USB 2.0/USB 1.1 |
| Cable Type | Hybrid Fiber & Copper Active Optical Cable (AOC) |

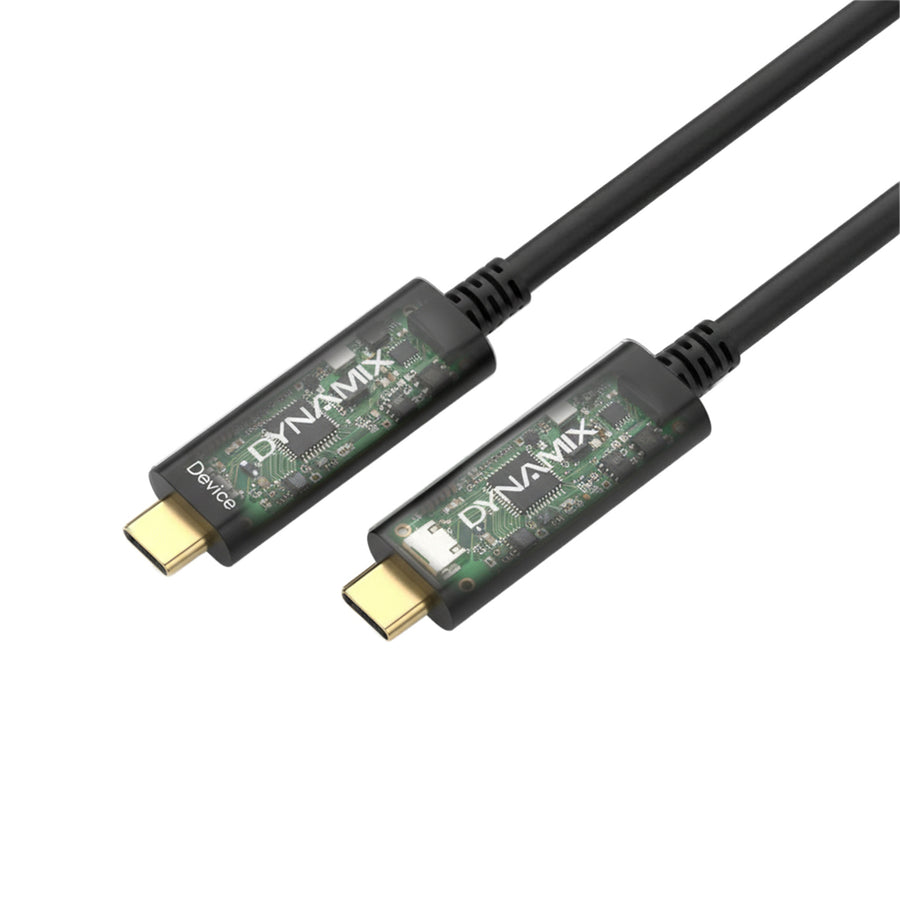

| Optical Components | VCSEL laser & PIN photodetector |
| Optical Wavelength | 850nm |
| Power Consumption | ≤ 0.5W (TX & RX AOC) |
| Supply Voltage | 4.5 ~ 5.5V |
| Power Delivery | DC 5V/0.8A |
| Cable Lengths | 10m |
| Power Supply | No external power required |
| Cable O.D | 4.8mm |
| Tensile Strength (Short Term) | 300N |
| Tensile Strength (Long Term) | 150N |
| Crush Resistance (Short Term) | 500N/100mm |
| Crush Resistance (Long Term) | 100N/100mm |
| Dynamic Bend Life | 20,000 cycles (180° swing, no open) |
| Minimum Bend Radius (Static) | 40 mm |
| Minimum Bend Radius (Dynamic) | 20 mm |
| Operating Temperature | -40°C ~ +70°C |
| Flammability Rating | UL13 Standard |
| Jacket Material | PVC |
| Compliance | CE, FCC, RoHS, REACH, UKCA |
| Plug & Play | Yes |
| Brand | DYNAMIX |
|---|---|
| Product Type | PC Peripherals |
| Weight | 0.454 kg |
| Warranty |
|---|
