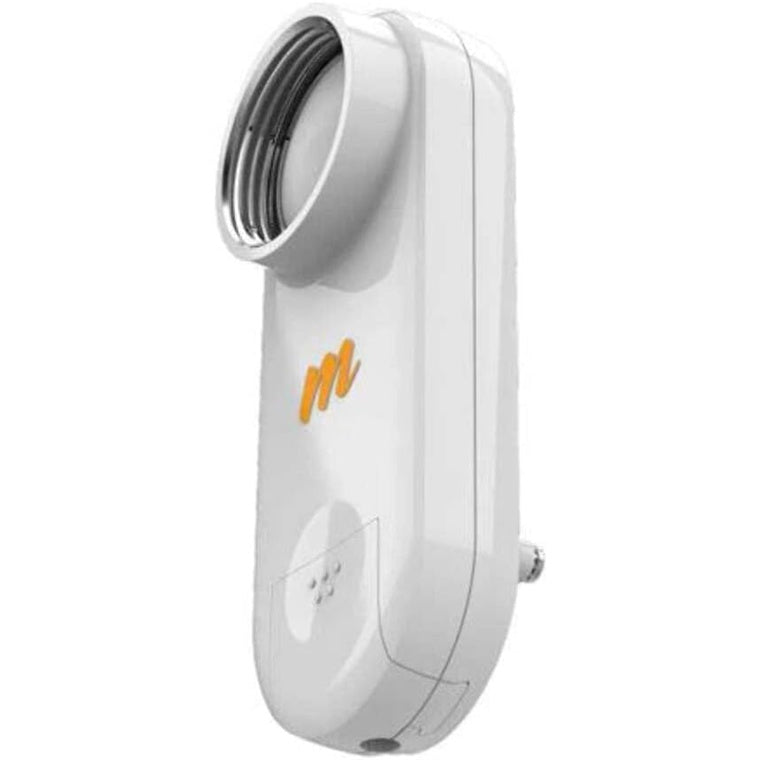

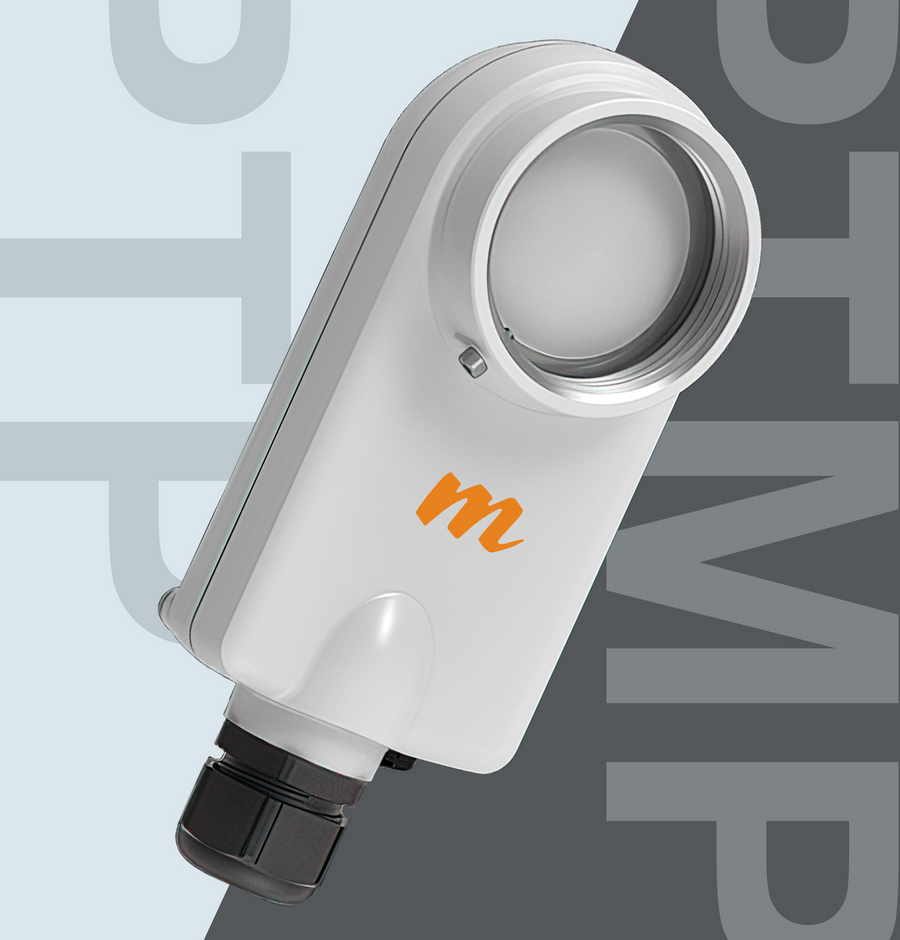

C5x - Mimosa C5x IP67 4.9-6.4 GHz, 8 dBi Modular 500 Mbps Point to Point/CPE Bridge Radio
Mimosa

C5x - Mimosa C5x IP67 4.9-6.4 GHz, 8 dBi Modular 500 Mbps Point to Point/CPE Bridge Radio

SKU: C5x ● In Stock
$221.00
Free shipping over $299 Genuine product 7-day returns

C5x

C5x - Mimosa C5x IP67 4.9-6.4 GHz, 8 dBi Modular 500 Mbps Point to Point/CPE Bridge Radio

Description

Mimosa C5x 4.9-6.4 GHz, 8 dBi Modular 500 Mbps Point to Point/CPE Bridge Radio. The Mimosa C5x is the industry’s most versatile, modular, Point to Point/CPE wireless bridge radio solution with five gain options (8 dBi built in, or optional 12, 16, 20 and 25 dBi add on's). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. To unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased.



Incredible RF Performance with Cassegrain and horn antenna options, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Key Applications:
- Broadband service providers
- Public safety and first responders
- Enterprise and campus building interconnecting
- Multipoint distribution for WiFi, video security and Smart Cities
Features
  • Four Twist-On, Flexible Antenna Options
  • PTP or PTMP Modes (feature key may be required)
  • Extended Frequency 4.9–6.4 GHz
  • Best-in-Class Noise Immunity
  • Ultra Rugged
  • Low-Power Consumption
  • Ultra Reliable
  • Designed for WISP's

Specifications

Details
Manufacturer's Product Code C5x
Max Throughput 700 Mbps IP (866 PHY)
Wireless Protocols Mimosa SRS; WiFi Interop
Modes PTP Backhaul & PTMP Client
Frequency Range PTP/PTMP: 4900–6400 MHz (restricted by country of operation)
Max Output Power 27 dBm
Antenna Gain 8 dBi (native built in) or 12–25 dBi (with optional add on antennas)
System Power Method Passive POE (24-56 VDC)
Max Power Consumption 9.2 W average; 12.9 W max
Physical Dimensions Height: 175 mm, Width: 70 mm, Depth: 61 mm
Weight 0.4 kg
RF Connector Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Outdoor Ingress Protection Rating IP55
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4,420 m (14,500’) max
Shock & Vibration ETS 300-019-2-4 class 4M5
Ports (1) 10/100/1000-BASE-T
