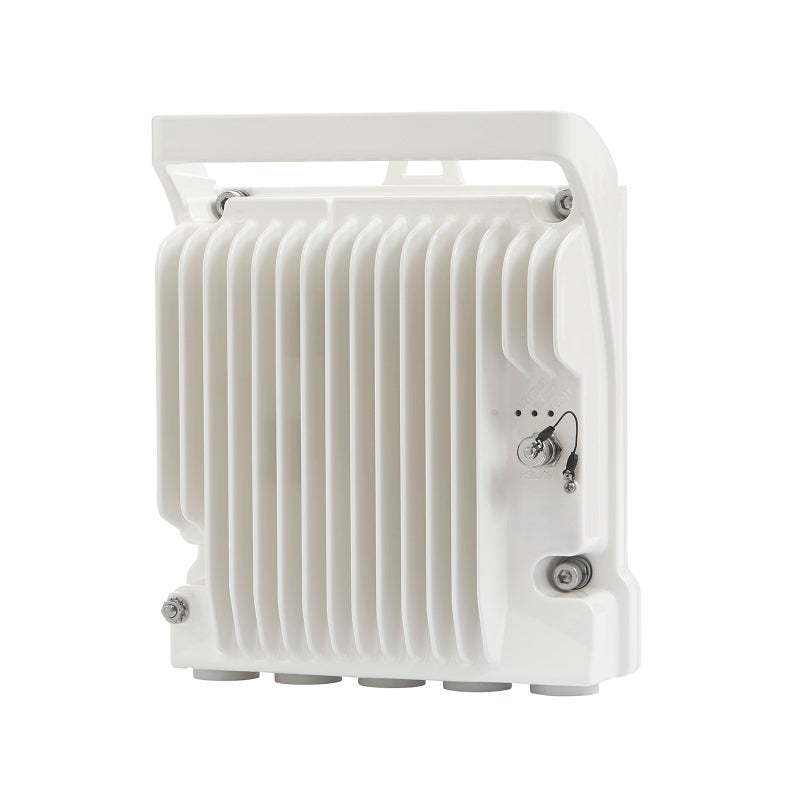

Cambium 11 GHz PTP 820S Wideband Licensed Microwave Radio Ch7W13 Lo 10915-11207MHz
Cambium Networks

Cambium 11 GHz PTP 820S Wideband Licensed Microwave Radio Ch7W13 Lo 10915-11207MHz

SKU: C110082B028 ● Out of Stock
$5,599.06
Free shipping over $299 Genuine product 30-day returns

C110082B028

Cambium 11 GHz PTP 820S Wideband Licensed Microwave Radio Ch7W13 Lo 10915-11207MHz

Description

Cambium 11 GHz PTP 820S Wideband Licensed Microwave Radio Ch7W13 Lo 10915-11207MHz.

Cambium PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies, creating a superior microwave transport solution.

Supporting licensed frequency bands ranging from 6 to 86 GHz, the PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario.

Cambium PTP 820 also offers both Synchronous Ethernet (SyncE) and IEEEv2 synchronization protocols required for large ISP and MPLS networks.

Operations, Administration and Maintenance (OA&M) tools coupled with a full suite of network and element management systems (NMS and EMS) simplify network provisioning and monitoring, reducing operators’ total cost of ownership and enabling them to meet the most stringent service level agreements.

Combining technologies, equipment and services, PTP 820 enables network operators to meet accelerating demand for capacity cost-effectively under rapidly evolving conditions.

Note additional hardware and licensing is required for the operation of these radios, please contact us with your link requirements and we can assist with a complete quote.
Features
  • Operates in the 11 GHz Licensed Band
  • High Capacity and Spectral Efficiency
  • 1+0, 1+1 HSB, 2+0 SP or DP Hardware Configurations Supported
  • QPSK to 2048 QAM w/ACM, 28 / 40 / 80 MHz
  • Advanced Frequency Reuse (AFR)
  • Jumbo Frame (9600 Bytes)

Specifications

Details
Product Code C110082B028A
Traffic Interfaces 1 x 10/100/1000Base-T (RJ-45) and 2 x 1000base-X (SFP) or 2 x 10/100/1000 Base-T (electrical SFP)
Management Interface 1 x 10/100 Base-T (RJ-45)
MTU 9600 Bytes
Quality of Service Multiple Classification criteria (VLAN ID, p-bits, IPv4, DSCP, IPv6 TC, MPLS EXP), 8 priority queues, Deep buffering (configurable up to 64 Mbit per queue), WRED, P-bit marking/remarking
VLANs 4K
VLAN add/remove/translate
Frame Cut Through Controlled latency and PDV for delay sensitive applications
Header De-Duplication Capacity boosting by eliminating inefficiency in all layers (L2, MPLS, L3, L4, Tunneling – GTP for LTE, GRE)
Other Ethernet Features Y.1731 Ethernet OAM, Y.1731 Ethernet Bandwidth Notification (ETH-BN), Adaptive Bandwidth Notification (ABN)
Management Protocols SNMP, REST, SDN Support: NETCONF/YANG
Synchronization Synchronization Distribution, Sync Distribution over any traffic interface (GE/FE), Sync-E (ITU-T G.8261, G.8262), SSM/ESMC Support for ring/mesh applications (ITU-T G.8264), Sync-E Regenerator mode, providing PRC grade (ITU-T G.811) performance for smart pipe applications, IEEE-1588, Optimized Transport for reduced PDV, IEEE-1588 TC
Security AES 256-bit Encryption, Secured protocols (HTTPS, SNMPV3, SSH, SFTP), Radius authentication and authorization, TACACS+ authentication and authorization (session-based)
Ingress Protection IP66-compliant
Dimensions 230mm(H), 233mm(W), 98mm(D), 6.0kg
Pole Diameter Range (for Remote Mount Installation) 8.89 cm – 11.43 cm
Environmental Specifications -33°C to +55°C (-45°C to +60°C extended)
Power Input Specifications Standard Input: -48 VDC
IDU DC Input range -40 to -60 VDC
Maximum Power Consumption 6-11 GHz: 35W
