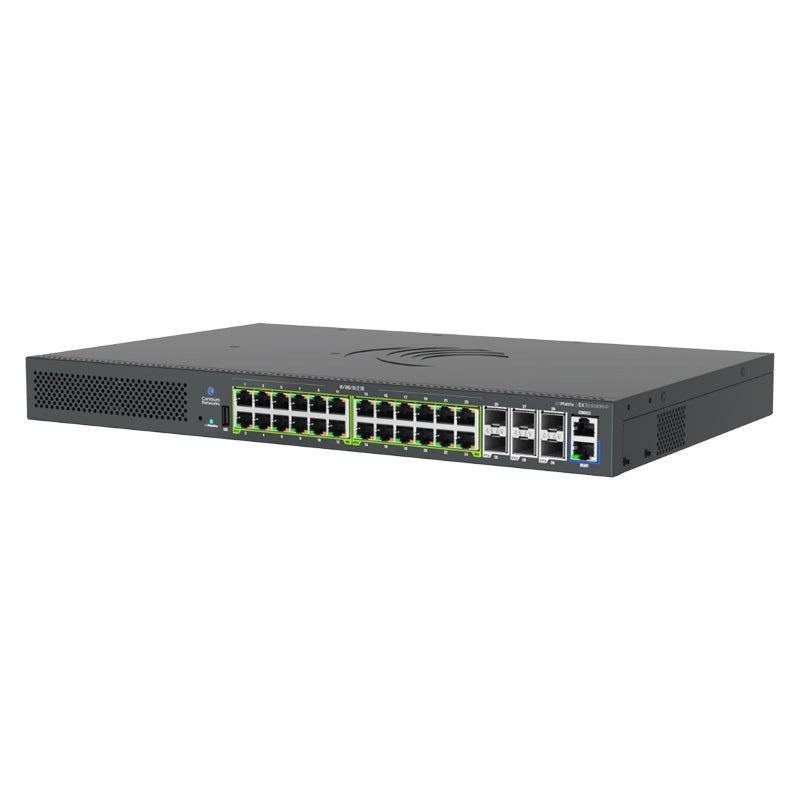

Cambium cnMatrix EX3030RM-P, Intelligent Ethernet Switch, 24 MG(2.5G) ports with 4PPoE(90W) , and 6 SFP28, 25Gbps ports. Dual/Removeable power supplies (not included)
Cambium Networks

Cambium cnMatrix EX3030RM-P, Intelligent Ethernet Switch, 24 MG(2.5G) ports with 4PPoE(90W) , and 6 SFP28, 25Gbps ports. Dual/Removeable power supplies (not included)

SKU: EX3030RM-P ● Out of Stock
$7,390.55
Free shipping over $299 Genuine product 30-day returns

EX3030RM-P

Cambium cnMatrix EX3030RM-P, Intelligent Ethernet Switch, 24 MG(2.5G) ports with 4PPoE(90W) , and 6 SFP28, 25Gbps ports. Dual/Removeable power supplies (not included)

Description

Cambium cnMatrix EX3030RM-P Intelligent Ethernet Switch with 2.5GbE PoE++ Access Ports and SFP28 Uplink Ports.

The Cambium cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3030RM-P offers 24 2.5G/1G access ports with 6 x 25G SFP28 uplink ports. The EX3030RM-P switch also feature up to 90W of PoE max power per port. These switches come with a 5-Year limited lifetime warranty.

Note the EX3030RM-P supports Common Removeable Power Supplies (CRPS), which are sold separately. No power supply is included with this switch.
Features
  • Enterprise‑grade multi‑gig switch with 24 × 2.5G access ports for high‑density Wi‑Fi 6/6E/7 deployments
  • Full 90 W PoE++ (802.3bt) support on every access port to power next‑generation access points, cameras, and IoT devices
  • 6 × 25G SFP28 uplinks deliver high‑capacity aggregation for campus and core switching scenarios
  • Non-blocking, line-rate architecture with fully-featured profiling and segmentation
  • Simple and scalable cloud (or on premise) control with cnMaestro™ Network Management
  • Zero-touch deployment that makes installation plug-and-play easy
  • Policy-based automation eliminating manual and time-consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network

Specifications

Details
Product code MXEX3030MxPA10 (EX3030RM-P)
Switching Capacity 420 Gbps
Forwarding Rate 120 Mpps
Access Ports 24 × 2.5G/1G Ethernet ports
PoE Support 802.3af/at/bt
PoE Ports 24 ports with up to 90 W per port
Uplink Ports 6 × 25G SFP28
MAC Address Table 32K
Packet Buffer 3 MB
VLANs 4K simultaneous VLANs
QinQ Yes
QoS Priority Queues 8
Link Aggregation 8 LAGs with 8 ports per LAG
Routing Capability Layer 2 and Layer 3
Static Routes 64
Dynamic Routing Entries 512
IGMP Multicast Groups 512
Ingress/Egress ACLs 512
ARP Entries 1000
Flash Storage 256 MB
DRAM 1 GB
Management Platform cnMaestro Cloud or On‑Premises
Deployment Zero‑touch provisioning
Power Supplies Dual removable power supplies
Cooling 3 internal fans
Rack Mounting Rack mount kit included
