C030045AL01
C030045AL01
KW Tech

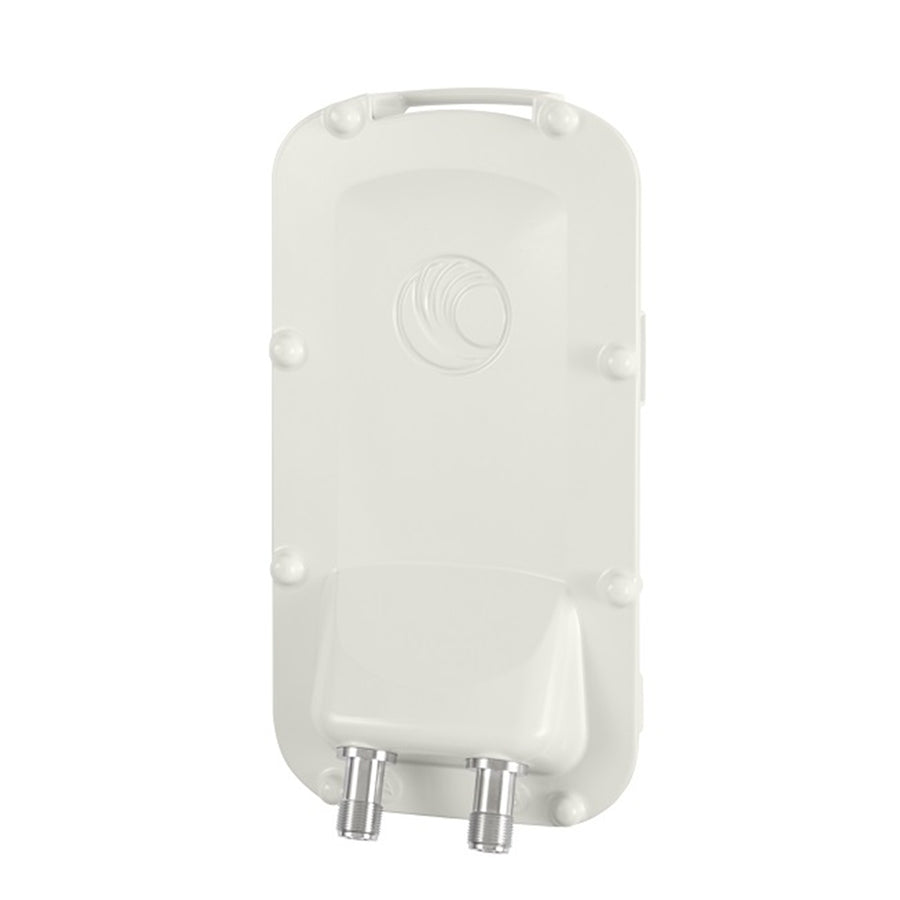

Cambium Networks C030045AL01 Cambium 3 GHz PMP 450i Connectorized Access Point, LITE

SKU: C030045AL01 ● In Stock
$2,790.43
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Cambium Networks C030045AL01 Cambium 3 GHz PMP 450i Connectorized Access Point, LITE

Specifications

Technical Specifications

Manufacturer part number C030045AL01
Channel Spacing Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz
Frequency Range 3 GHz: 3300-3900 MHz
Channel Width 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
MTU 1700 bytes
VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per Sector Up to 238 *Lite models limited to 20 Subscribers, License Key (C000045K010A) available to remove this limit
ARQ Yes
Maximum Deployment Range Approx. 10km with NZ Default Technical Conditions
Latency 3 - 5 ms, typical
GPS Synchronization Yes, via Autosync (CMM5 or UGPS)
Quality of Service Diffserve QoS
Integrated Sector Antenna 90° Azimuth (3dB rolloff), 120° Azimuth (6dB rolloff) 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity
Antenna Gain 17 dBi ± 1 dBi integrated 90/120° sector
Maximum Transmit Power +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)
Maximum EIRP +43 dBm combined output (may be limited by regulations)
VSWR 1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB
Power Control ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC
Antenna Connection 50 ohm, N-Type
Surge Suppression (LPU fitted) EN61000-4-5: 1.2us/50us, 500V voltage waveform Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure >40 Years
Dust and Water Ingress Protection Rating IP67, IP66
Temperature / Humidity 40°C to +75°C (-40°F to +167°F), 0-100% condensing
Weight Approx. 2 kg (4.5 lbs)
Wind Survival 322 km/h (200 mi/h)
Vibration NEMA TS2 Section 2.1.9 and Section 2.2.3
Shock NEMA TS2 Section 2.1.10 and Section 2.2.4
External Icing NEMA 250-2003 Section 5.6
Dimensions (H x W x D) Connectorized 26.0 x 13.4 x 6.4 cm (10.3" x 5.3" x 3.3")
Power Consumption 15W typical, 18W max, Using Aux port PoE for another device will increase power draw
Input Voltage 48-59V DC, 802.3at compatible
Encryption FIPS-197 128-bit AES, 256-bit AES (Requires Optional License)
Product type Access Points
Weight 1.5 kg
Warranty 12 months
