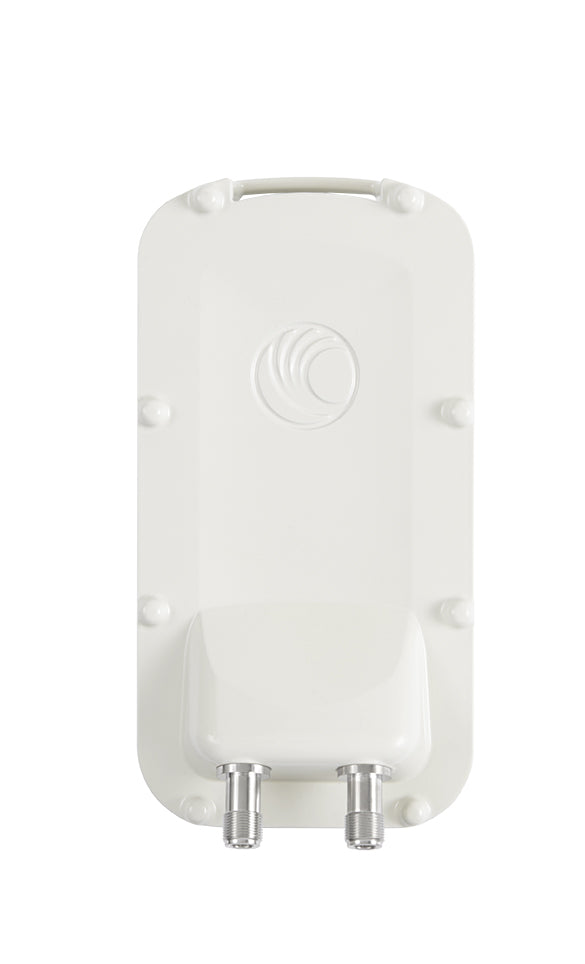

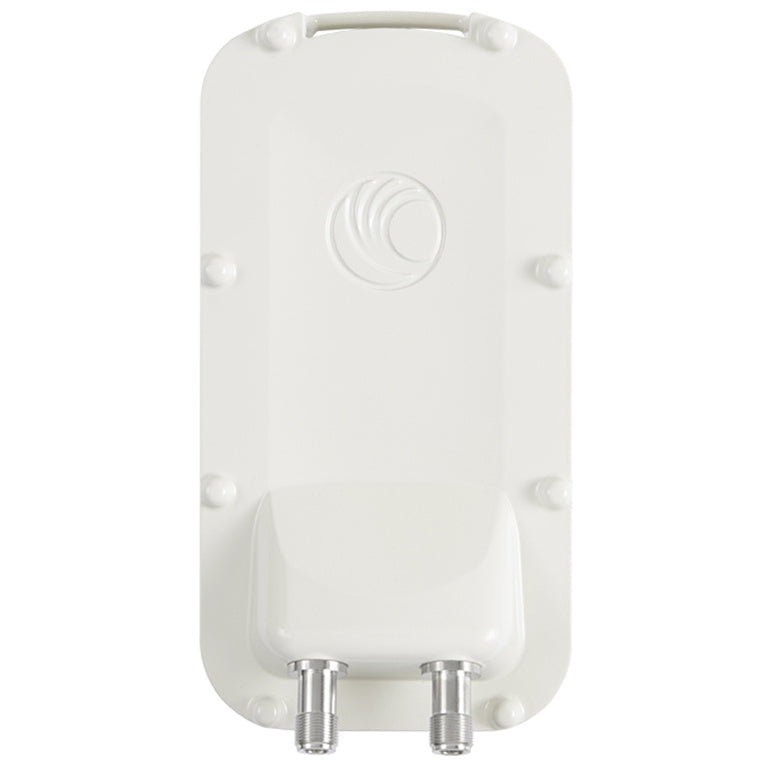

Cambium Networks C050045A001A - Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)
Cambium Networks

Cambium Networks C050045A001A - Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)

SKU: C050045A001A ● In Stock
$2,832.00
Free shipping over $299 Genuine product 7-day returns

C050045A001A

Cambium Networks C050045A001A - Cambium 5 GHz PMP 450i Connectorized Access Point (ROW)

Description

Cambium 5 GHz PMP 450i Connectorized Access Point (ROW).

Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.

Now capable of up to 300 Mbps per sector in a 40 MHz channel!
Features
  • Ultra-wide band 5 GHz Radio
  • Rugged metal enclosure designed to meet IP-66 and IP-67 standards
  • 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector
  • Dynamic Interference Filtering
  • Multi function AUX port with PoE-Out

Specifications

Details
Product Code C050045A001A
Frequency Range 5 GHz : 4900 - 5925 MH
Channel Width 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz
MAC (Media Access Control) Layer Cambium Networks proprietary
Physical Layer 2x2 MIMO OFDM
Ethernet Interface 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols Used IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network Management IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM
MTU 1700 bytes
VLAN 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Subscriber Per Sector Up to 238
ARQ Yes
Modulation Levels (Adaptive) 2X QPSK, 4X 16QAM, 6X 64QAM, 8X 256QAM
Maximum Deployment Range Up to 40 miles (64 km)
Latency 3 - 5 ms, typical
GPS Synchroization Yes, via Autosync (CMM5 or UGPS)
Quality of Service Diffserve QoS
Antenna Connection 50 ohm, N-Type (Connectorized version only)
Max Transmit Power +28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)
Surge Suppression (LPU fitted) EN61000-4-5: 1.2us/50us, 500 V voltage waveform, Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure > 40 Years
Environmental IP67, IP66
Temperature / Humidity -40°C to +60°C (-40°F to +140°F), 0-100% condensing
Power Consumption 15 W typical, 18 W max, 45 W max with Aux port PoE out enabled
Input Voltage 48-59 V DC, 802.3at compatible
