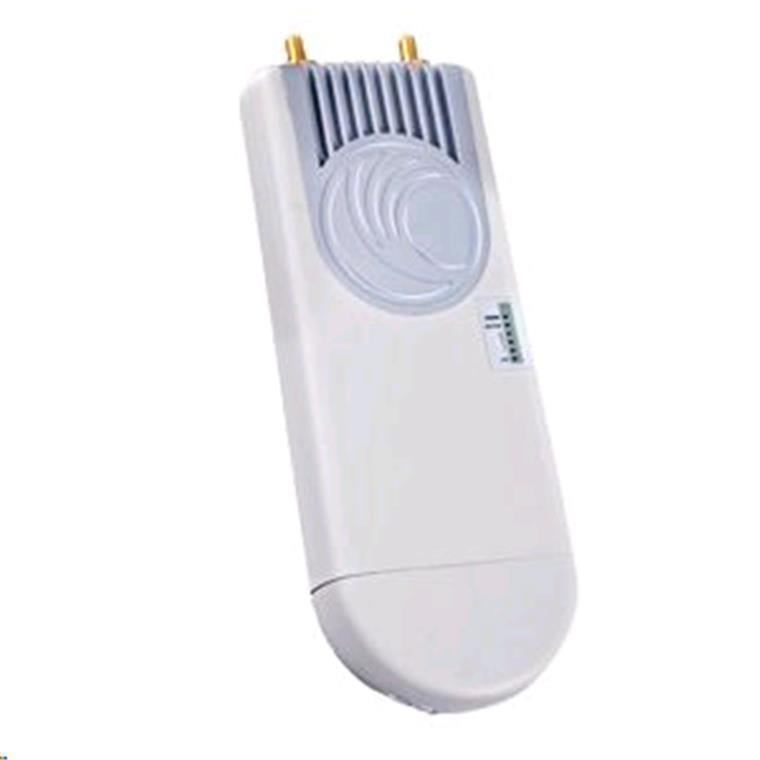

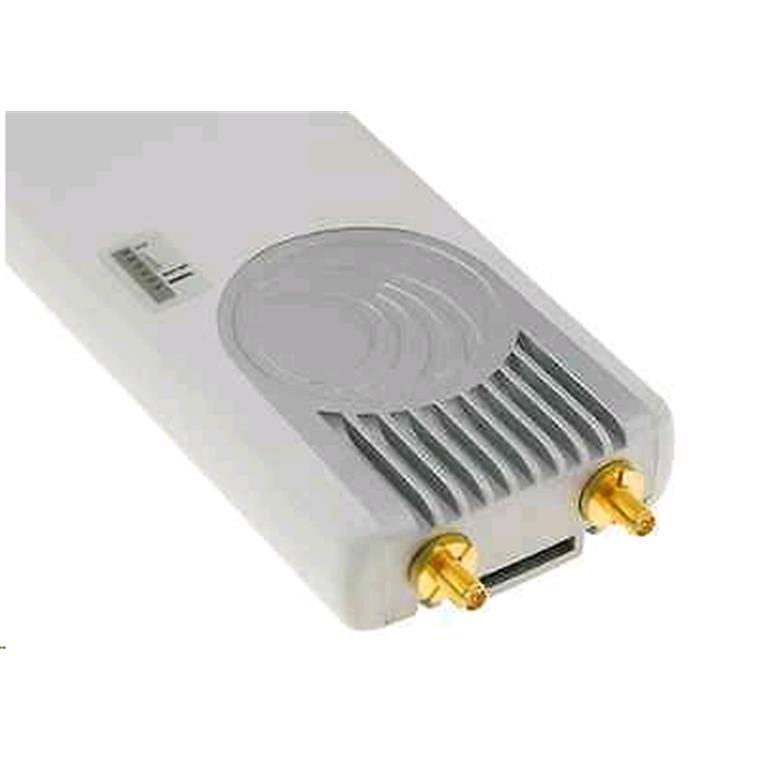

Cambium Networks C050900A011A - Cambium ePMP 1000 5 GHz Connectorised Point to Multipoint Radio with GPS Sync
Cambium Networks

Cambium Networks C050900A011A - Cambium ePMP 1000 5 GHz Connectorised Point to Multipoint Radio with GPS Sync

SKU: C050900A011A ● In Stock
$136.00
Free shipping over $299 Genuine product 7-day returns

C050900A011A

Cambium Networks C050900A011A - Cambium ePMP 1000 5 GHz Connectorised Point to Multipoint Radio with GPS Sync

Description

Cambium ePMP 1000 GPS Sync Radio (C050900A011A).

Utilizing GPS sync, this ePMP is ideal for networks that require capacity and reliability for superior QoS in remote and underserved areas.

This integrated PTP and PMP solution features an efficient GPS synchronized operational mode that permits highly scalable frequency reuse. When deployed with a sector antenna, the radio can be configured as a GPS Synchronized Access Point serving ePMP™ Integrated Radios configured as Subscriber Modules.
Features
  • Innovative GPS Sync Technology enables unparalleled spectrum efficiency. This allows for the configuration of more subscribers in your network while preserving consistency and quality of service in spectrum-constrained environments
  • Quality of Service (QOS) allows you to confidently offer triple play services – VoIP (Voice over IP), video and data
  • Proven Reliability has created an unsurpassed connectivity standard in many industries that depend on fixed wireless broadband
  • Powerful Features, the Cambium Networks ePMP 1000 GPS Sync Radio provides more than 200 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates

Specifications

Details
Product Code C050900A011A
Channel Spacing Configurable on 5 MHz increments
Frequency range 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 / 10 / 20 / 40 MHz
MAC (Media Access Control) Layer Cambium Proprietary
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 100/1000BaseT, rate auto negotiated (802.3af compliant)
Powering Methods Supported 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN 802.1Q with 802.1p priority
Subscribers per Sector Up to 120
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @ 20MHz Channel MCS0 = -93 dBm to MCS15 = -69 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @ 40MHz Channel MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
Latency Up to 20ms
GPS Synchronization Yes, via Internal GPS, CMM3, or CMM4
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority
Transmit Power Range -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna Connection 50 ohm, RP (Reverse Polarity) SMA
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +60°C (-22°F to +140°F)
Weight 5.1 kg (10 lbs) with antenna, 0.52 kg (1.1 lbs) without antenna
Wind Survival 145 km/hour (90 mi/hour) with antenna
Dimensions (h x w x d) Radio: 26.9 x 11 x 7.7 cm (10.6 x 4.3 x 3.0 in), Antenna (incl brackets): 80cm x 22.5cm x 24cm (31.5 x 8.9 x 9.4 in)
Power Consumption (over 100m CAT5 cable) 10 W Maximum, 7.5 W Typical
Input Voltage 23 to 56 V
Encryption 128-bit AES (CCMP mode)
