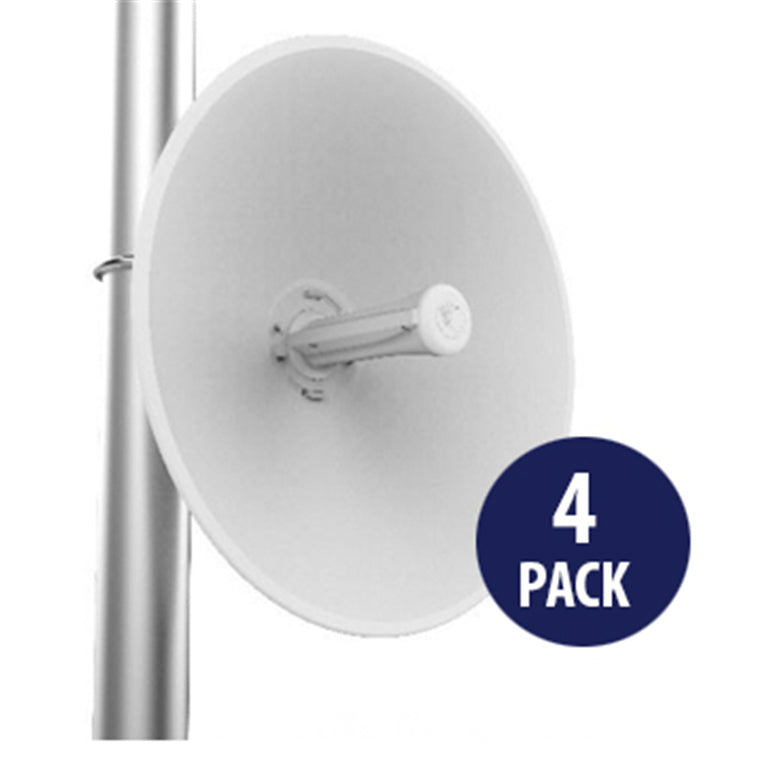

Cambium Networks C050910M801 - Cambium ePMP 5 GHz Force 300-25 High Gain Radio 4-Pack
Cambium Networks C050910M801 - Cambium ePMP 5 GHz Force 300-25 High Gain Radio 4-Pack
Features
Cambium ePMP 5 GHz Force 300-25 High Gain, High TX power CPE Radio 4-Pac
The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.
- Convenient 4-Pack packaging to reduce shipping costs
- Cambium Networks' ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.
Specifications
Technical Specifications
| Channel Width | 20/40/80 MHz |
|---|---|
| Proprietary Physical | Layer Air Interface on top of 802.11ac Wave 2 technology (2x2 MIMO/OFDM) |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910-5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Modulation | MCS0 (BPSK) to MCS9 (256 QAM 5/6) |
| Transmit Power Range | 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna Gain | 25dBi |
| 3 dB Beamwidth Azimuth | 6° to 10° |
| 3 dB Beamwidth Elevation | 6º to 10º |
| Front-To-Back Isolation | 25 dB |
| Cross Polarization | 25 dB |
| Surge Suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C |
| Weight | 2.4 kg (Includes mounting bracket) |
| Wind Survival | 180 km/hour |
| Dimensions (Dia x Depth) | 470 x 310 mm with mounting bracket attached |
| Pole Diameter Range | 64 - 76 mm with included clamp |
| Power Consumption | 12 W (Up to 15 W in extreme cold temperatures when heater is activated.) |
| Input Voltage | 30 V Passive PoE (14-30 V DC Input) |
| Encryption | 128-bit AES (CCMP mode) |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Cambium Networks |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
