Features

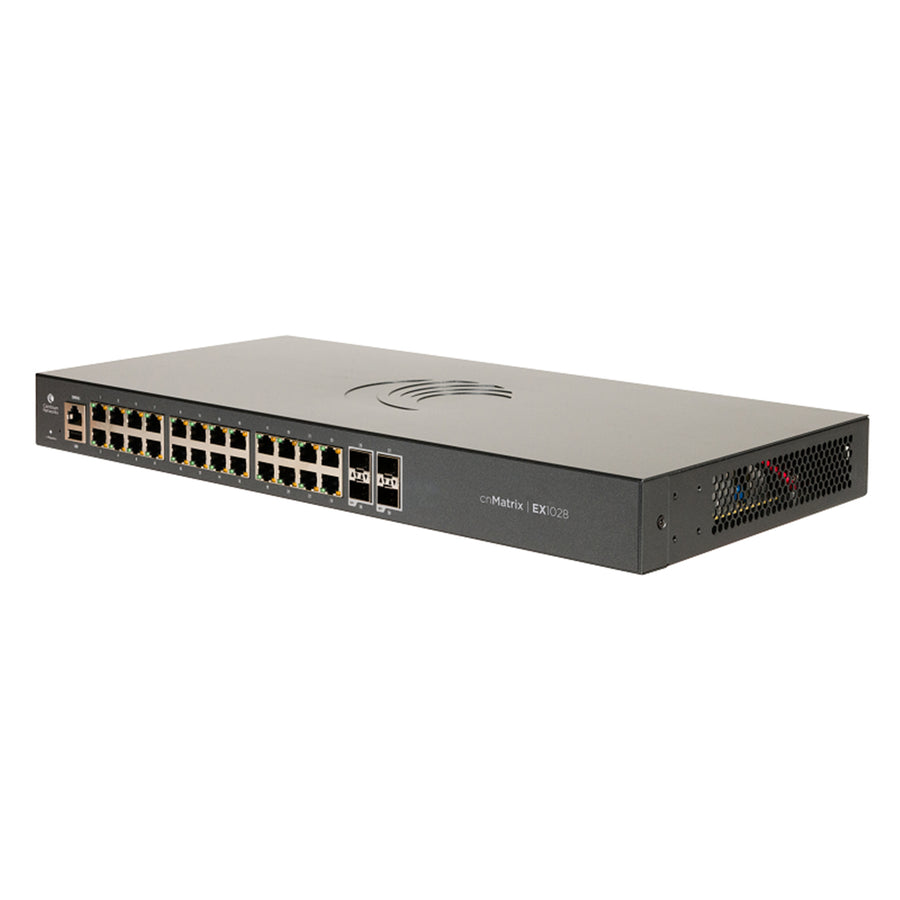

The Cambium cnMatrix EX1028 (MX-EX1028xxA-0) is an Intelligent Ethernet Switch with 24x 1GE & 4x SFP Ports. Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
Improve network performance while reducing the time and cost of provisioning and management with the Cambium cnMatrix series of fully managed switches, delivering full Layer 2 capabilities with enhanced access security.
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Non-blocking, line-rate architecture with fully featured L2 switching
Specifications
Technical Specifications
| Non-Blocking Throughput | 56Gbps |
|---|---|
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| Gigabit Ethernet Ports | 24 |
| Uplink Ports | 4 SFP |
| Serial Console Port | 1 RJ45 |
| USB | 1 |
| Internal Fans | Fanless |
| LEDs Per Port | Link/Activity |
| Rack Mountable | Yes 1U |
| Rack Mount Kit | Included |
| Power Supply | 100-240 VAC |
| Max Switch Power (WITH TRAFFIC) | 19.50 W |
| MTBF (Hours) | 432,283 |
| Weight | 2.77kg |
| Dimensions | 44 x 4.4 x 20.9cm |
| Temperature Range | -0°C to +50°C |
| Operating Humidity | +55° at 95% RH |
| Storage Temperature | -40°C to +70°C |
