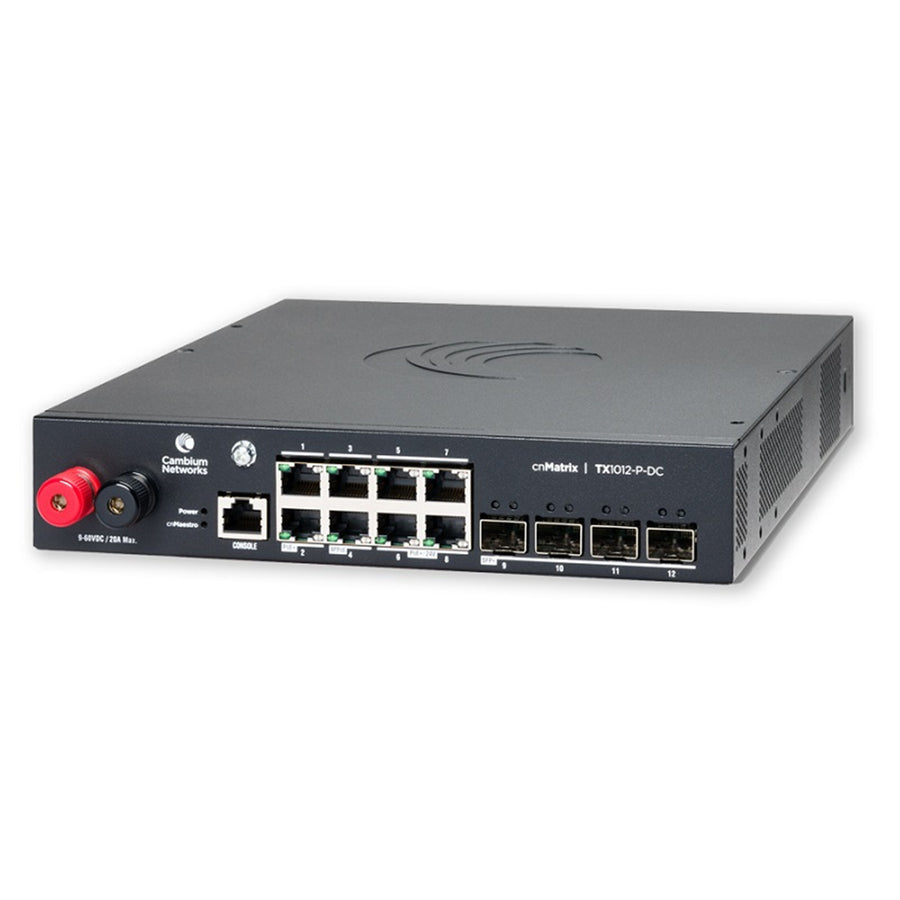

Cambium Networks TX1012-P-DC - Cambium cnMatrix TX1012-P-DC 12-Port DC Powered PoE WISP Tower Switch
Cambium Networks TX1012-P-DC - Cambium cnMatrix TX1012-P-DC 12-Port DC Powered PoE WISP Tower Switch
Features
The Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, with 8x 1Gbps, and 4 SFP+ ports.
cnMatrix TX, Tower Switch provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
- Easy and simple, free cloud (or on premise) management with cnMaestro™
- Full Line Rate, non-blocking architecture
- Comprehensive/Intelligent PoE Solution
- Zero Touch Simplicity with automated configuration
- Automated security with device profiling and policy enforcement
- 9-65V DC Input via Terminals
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt - up to 90W
- 24V Passive PoE - up to 15W
- 54V Passive PoE - up to 90W
Intelligent and Versatile PoE Power Delivery
The switch supports a comprehensive suite of PoE standards-including 802.3af/at/bt up to 90W, as well as 24V and 54V passive PoE-offering flexibility for diverse, high-power device requirements in field environments.
Streamlined Deployment with Automated Security and Configuration
Zero Touch Provisioning allows for plug-and-play installation, while automated security functions such as device profiling and policy enforcement simplify network management and safeguard sensitive infrastructure. Flexible DC input (9-65V) ensures reliable operation in varied power scenarios.
Seamless Integration and Centralized Control

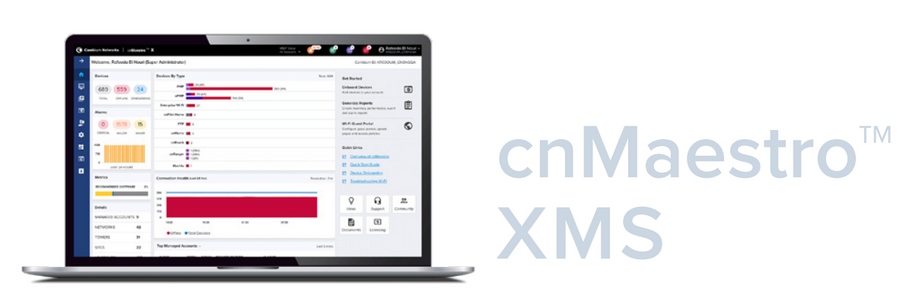

Designed for compatibility with the full Cambium ecosystem, this switch is managed through cnMaestro-an intuitive cloud-based (or on-premise) management suite that ensures unified device monitoring, easy updates, and configuration from anywhere.
Specifications
Technical Specifications
| Throughput | 96 Gbps |
|---|---|
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| Serial Console | Yes |
| Internal Fans | 1 |
| Flash Storage | 128 MB |
| DRAM | 512 MB |
| Internal Power Supply | 200W |
| Max Switch Power (WITH TRAFFIC) | 200W |
| MTBF @25°C (hours) | 749,495 |
| MTBF @60°C (hours) | 207,122 |
| Unit Weight | 2.1 kg |
| Unit Dimensions (H x L x W) | 4.4 x 28 x 23 cm |
| 802.3af/at/bt PoE (54V) | Ports 1-8 |
| 24V Passive PoE - up to 15W | Ports 5-8 |
| 54V Passive PoE - up to 90W | Ports 3-4 |
| 54V Passive PoE - up to 30W | Ports 1-2, 5-8 |
| PoE Max Power Per Port | Ports 1-2, 5-8: 30W, Ports 3-4 90W |
| Total PoE Power Budget | 170W @ 30-65Vin, 120W @ 9-29Vin |
| Rack Mount Kit | Not Included (optional accessory) |
| Wall Mountable | Not Included (optional Accessory) |
| Temperature Ranges | -30°C up to 60°C / Sea Level |
| Operating Humidity | 20% at 90% RH |
| Storage Temperature | -40°C to 70°C |
