-4%
CARELINK

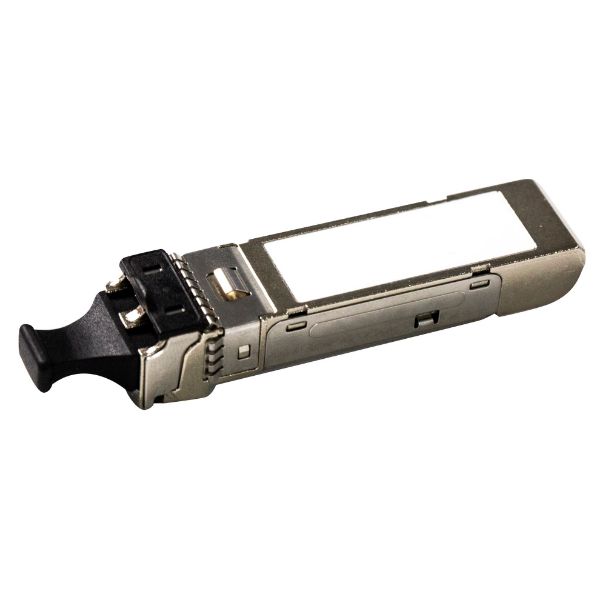

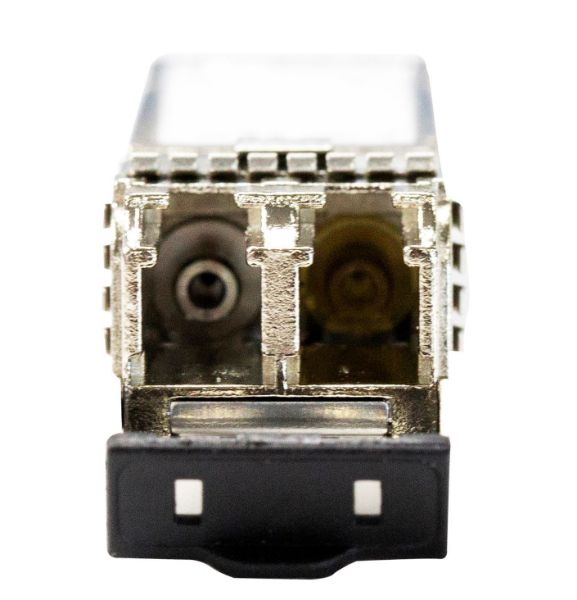

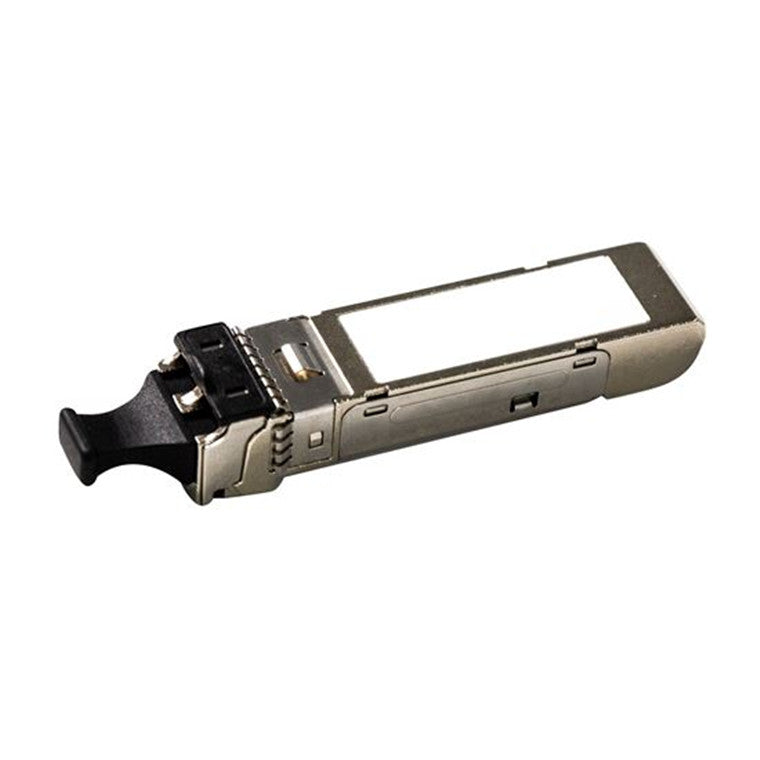

CARELINK SFP-LX10-DIN - 1.25G LC Duplex Single- mode Industrial SFP Module. 10km w/ DOM Function.
$43.25$45.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
This 1000Base-LX Small Form Factor Pluggable (SFP) transceiver module is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It simultaneously complies with Gigabit Ethernet as specified in IEEE Std 802.31 and 1x Fiber Channel as defined in FC-PI 13.03.
- Up to 1.25Gb/s data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot (FP) laser transmitter
- Duplex LC connector
- Up to 10km on 9/125µm Single-mode Fiber
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Operating temperature range: 0°C to 70°C
- Up to 1.25Gb/s data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot (FP) laser transmitter
- Duplex LC connector
- Up to 10km on 9/125µm Single-mode Fiber
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Operating temperature range: 0°C to 70°C
Specifications
Technical Specifications
| Fiber Type | Single-mode 9µm |
|---|---|
| Fiber Count | Duplex |
| Connector Type LC | TX Power -8dBm |
| RX Sensitivity | -20dBm |
| Budget | 12.5dB |
| Wavelength | 1310nm |
| OEM Compatible with | ZyXEL SFP-LX-10 |
| Weight | 0.018 kg |
| Brand | CARELINK |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.118 kg |
| Warranty |
|---|
