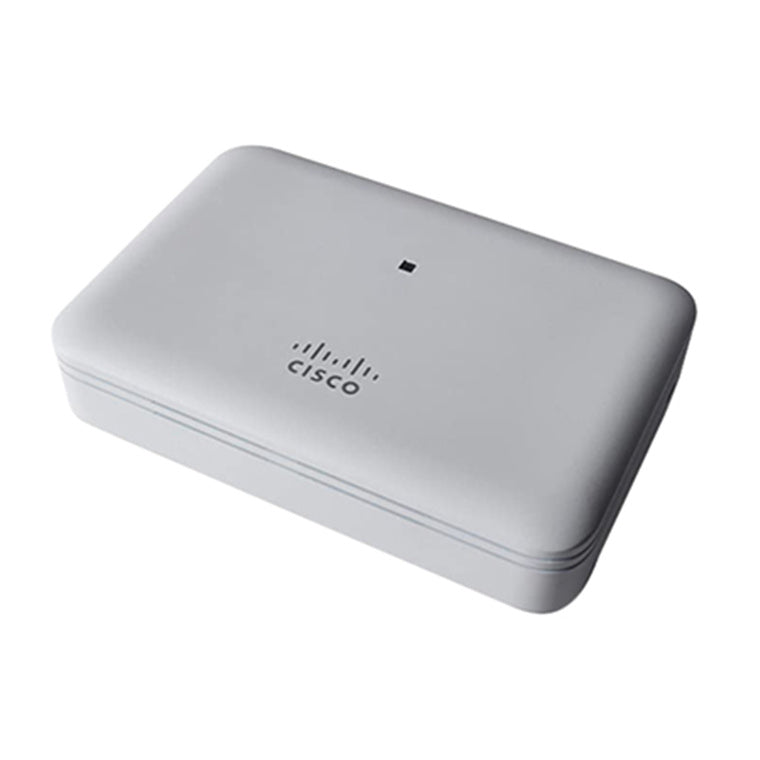

CBW141ACM-Z-AU - Cisco Business 141AC Mesh Wi-Fi Extender
CBW141ACM-Z-AU - Cisco Business 141AC Mesh Wi-Fi Extender
Features
Cisco CBW141ACM-Z-AU CBW141ACM 802.11AC 2X2 Wave 2 Mesh Extender Desktop
The CBW141ACM-Z-AU is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can extend your network by adding new mesh extenders and automating wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.
The Cisco Business 100 Series Mesh Extenders support the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, these mesh extenders, in conjunction with a Cisco Business access point, provide seamless connectivity.
- Easy to install on a desktop - Allows wired access via a single RJ-45 10/100/1000 auto detection port. This mesh extender come with three local Gigabit Ethernet ports and one uplink Gigabit Ethernet port, allowing for a variety of connections.
- MU-MIMO - Multi-user (MU) Multiple-Input Multiple-Output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2-capable clients to improve the client experience.
- Mesh technology support - Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.
- Two-step setup - Simplified deployment with two-step setup: Scan a QR code via the Cisco Business Mobile app, and power on the device. No additional setup is required.
Specifications
Technical Specifications
| Manufacturer's Code | CBW141ACM-Z-AU |
|---|---|
| Output Power | 2.4GHz/5GHz: 20dBm |
| Frequency Range | 2.4GHz; 5GHz |
| Interfaces | (4) 10/100/1000 Ethernet Port |
| PoE Out | 802.3af: 15.4W at port |
| Wireless standards | 802.11 a/b/g/n/ac |
| Power Method | 44 to 52V DC |
| Antenna gain dBi | 2.4GHz @ 2dBi, 5GHz @ 3dBi |
| Max Power consumption | 8.5W, no PoE or USB |
| Dimensions | 152.4 x 101.6 x 37.7mm |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Cisco |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
