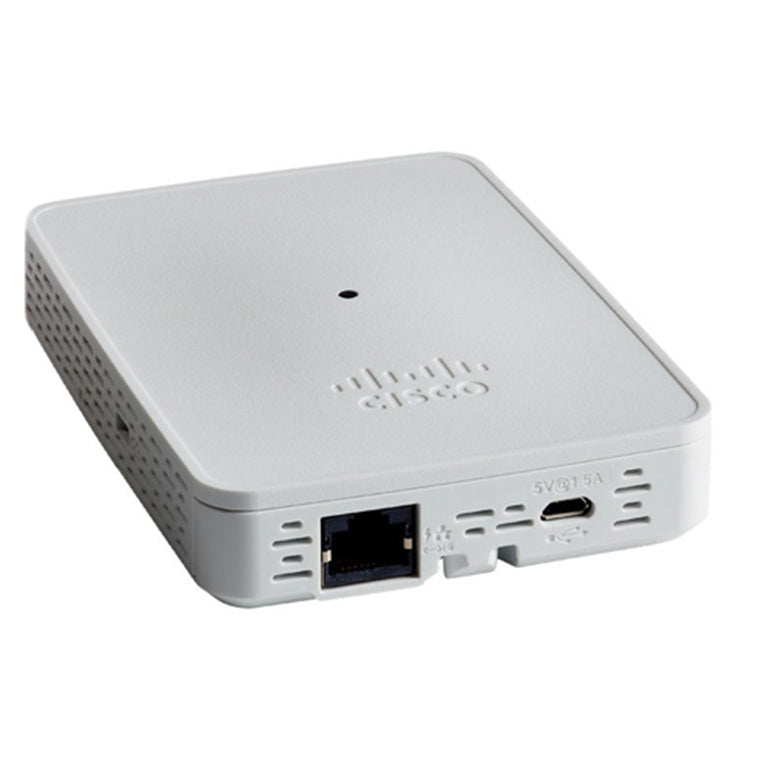

CBW143ACM-Z-AU - Cisco Business 143AC Mesh Wi-Fi Extender
CBW143ACM-Z-AU - Cisco Business 143AC Mesh Wi-Fi Extender
Features
Cisco CBW143ACM-Z-AU CBW143ACM 802.11AC 2X2 Wave 2 Mesh Extender Wall Mount
The CBW143ACM-Z-AU is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can extend your network by adding new mesh extenders and automating wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.
The Cisco Business 100 Series Mesh Extenders support the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, these mesh extenders, in conjunction with a Cisco Business access point, provide seamless connectivity.
- Mounts to any wall with supplied wall bracket
- MU-MIMO - Multi-user (MU) Multiple-Input Multiple-Output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2-capable clients to improve the client experience.
- Mesh technology support - Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.
- Two-step setup - Simplified deployment with two-step setup: Scan a QR code via the Cisco Business Mobile app, and power on the device. No additional setup is required.
Specifications
Technical Specifications
| Manufacturer's Code | CBW143ACM-Z-AU |
|---|---|
| Output Power | 2.4GHz/5GHz: 20dBm |
| Frequency Range | 2.4GHz; 5GHz |
| Wireless standards | 802.11 a/b/g/n/ac |
| Power Method | 5V 2A DC Micro USB |
| Interfaces | (1) 10/100/1000 Ethernet Port |
| Antenna gain dBi | 2.4GHz @ 2dBi, 5GHz @ 3dBi |
| Max Power consumption | 8.5W |
| Dimensions | 82.5 x 114 x 19 mm |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kw-tech.co.nz to arrange.
| Brand | Cisco |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
