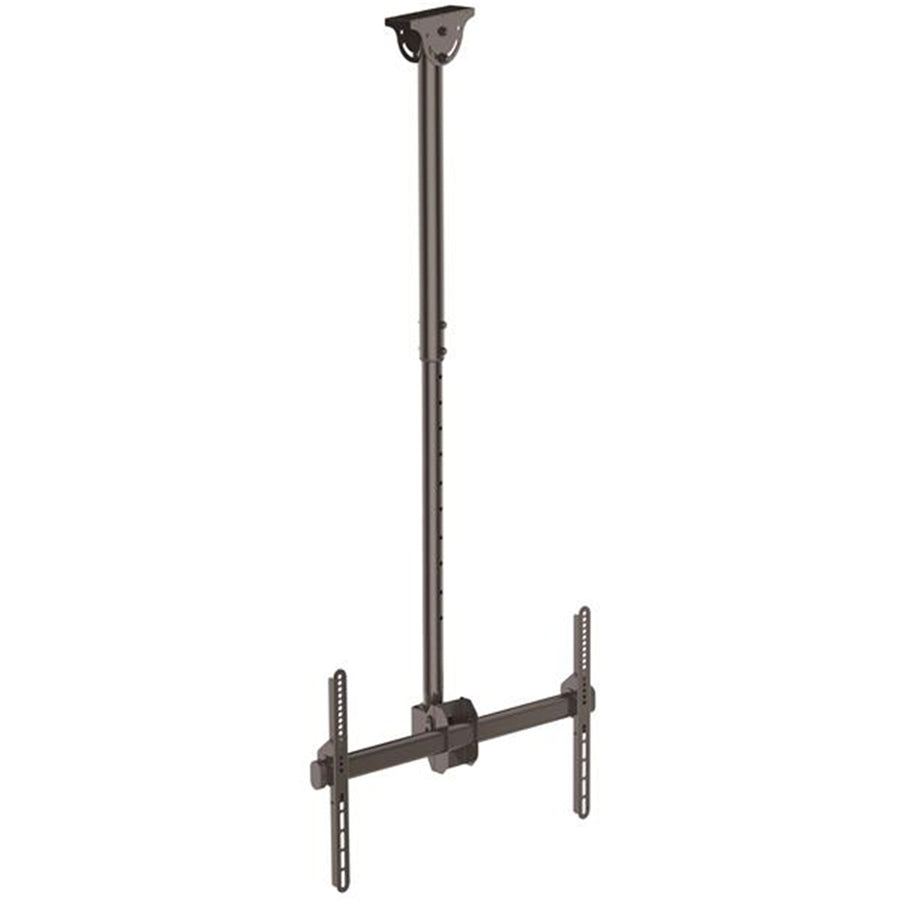

StarTech.com FLATPNLCEIL - CEILING MOUNT FOR 32IN-70IN FLAT-SCREEN
Features
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
The hook and mount design of the TV ceiling mount ensures fast and easy setup
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The preset leveling adjustments ensure ideal positioning after hanging.
Applications
- Suspend a flat-screen TV from the ceiling for easy viewing
- Ideal for boardrooms, lobbies, entrances, meeting spaces, classrooms
- Keep your guests informed and entertained
Specifications
Technical Specifications
| # of Displays Supported | 1 |
|---|---|
| Cable Management | Yes |
| Mounting Options | Ceiling Mount |
| VESA Hole Pattern(s) | 200x200 mm300x300 mm400x200 mm400x400 mm600x400 mm |
| Wallmountable | No |
| Anti-theft | No |
| Display Rotation | 360° |
| Height Adjustment | Yes |
| Maximum Display Size | 75" |
| Maximum Height | 61.4 in [1560 mm] |
| Minimum Display Size | 32" |
| Minimum Height | 41.7 in [1060 mm] |
| Swivel / Pivot | +180° to -180° |
| Tilt | +0° / -25° |
| Video Wall | No |
| Weight Capacity (Per Display) | 110.5 lb [50 kg] |
| Color | Black |
| Product Height | 70 in [1778 mm] |
| Product Length | 26.8 in [680 mm] |
| Product Weight | 13.2 lb [6 kg] |
| Product Width | 5.5 in [140 mm] |
| Included in Package | 1 - ceiling mount and pole1 - extension pole2 - vertical brackets1 - horizontal bracket2 - bolts2 - nuts1 - M13 wrench1 - M5 Allen key1 - mounting template4 - M5x14 mm screws4 - M6x14 mm screws4 - M8x30 mm screws4 - M6x30 mm screws4 - M8x50 mm screws4 - washers8 - short spacers8 - long spacers4 - 6.3x55 mm screws4 - concrete anchors4 - flat washers1 - instruction manual |
| Brand | StarTech.com |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 3.535 kg |
| Warranty |
|---|
