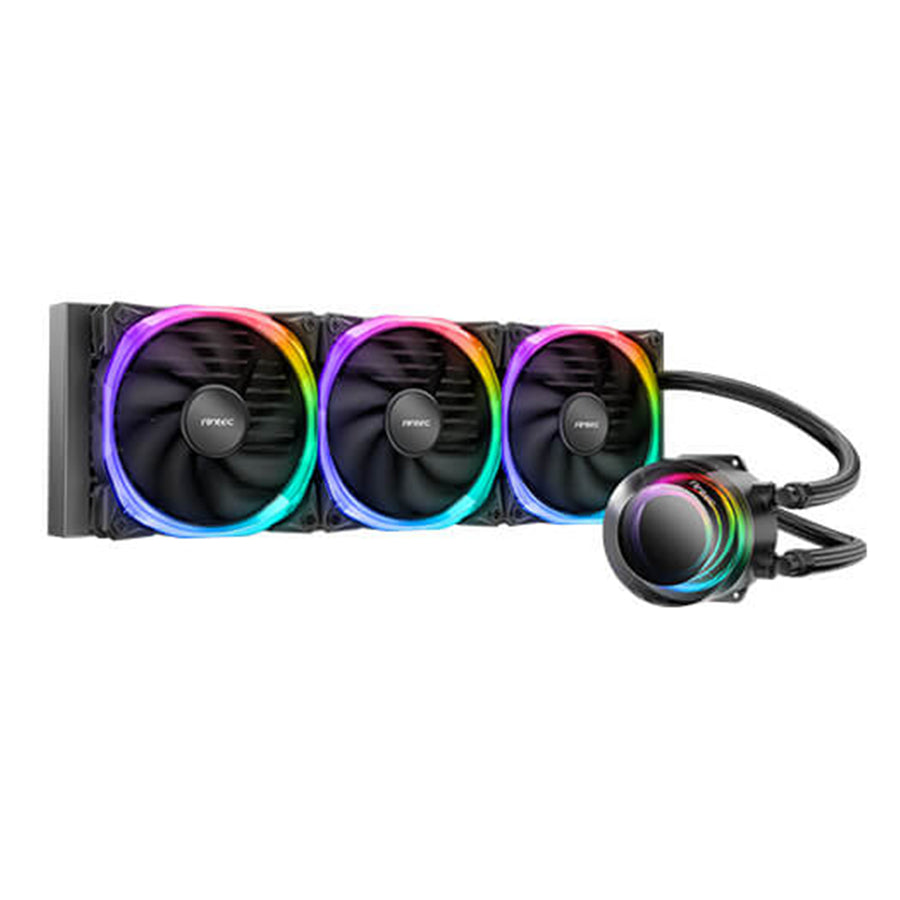

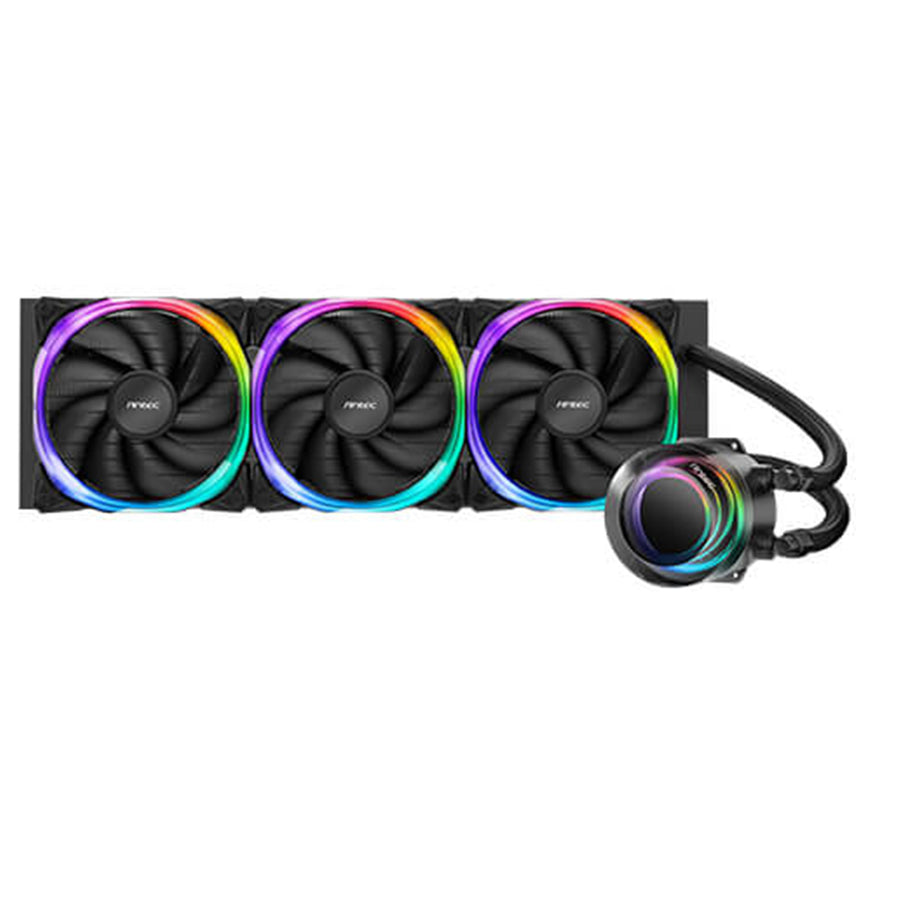

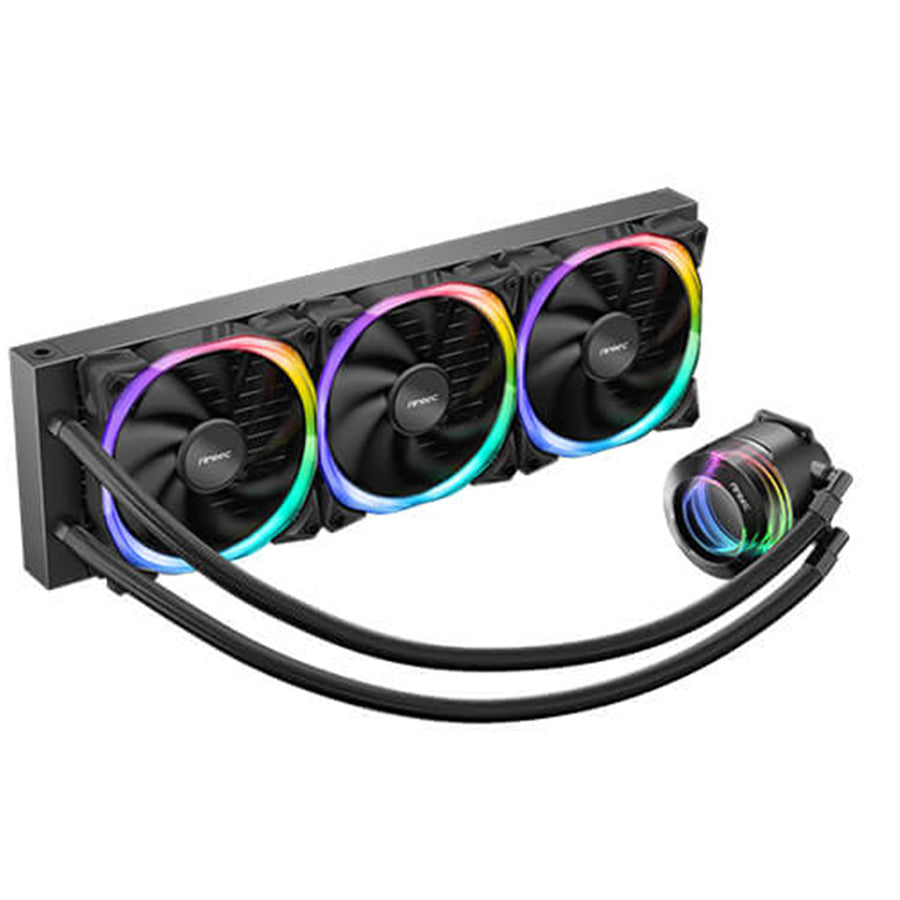

CFAN-ANT-VO360 - Antec Vortex 360 ARGB water cooling system
CFAN-ANT-VO360 - Antec Vortex 360 ARGB water cooling system
Features

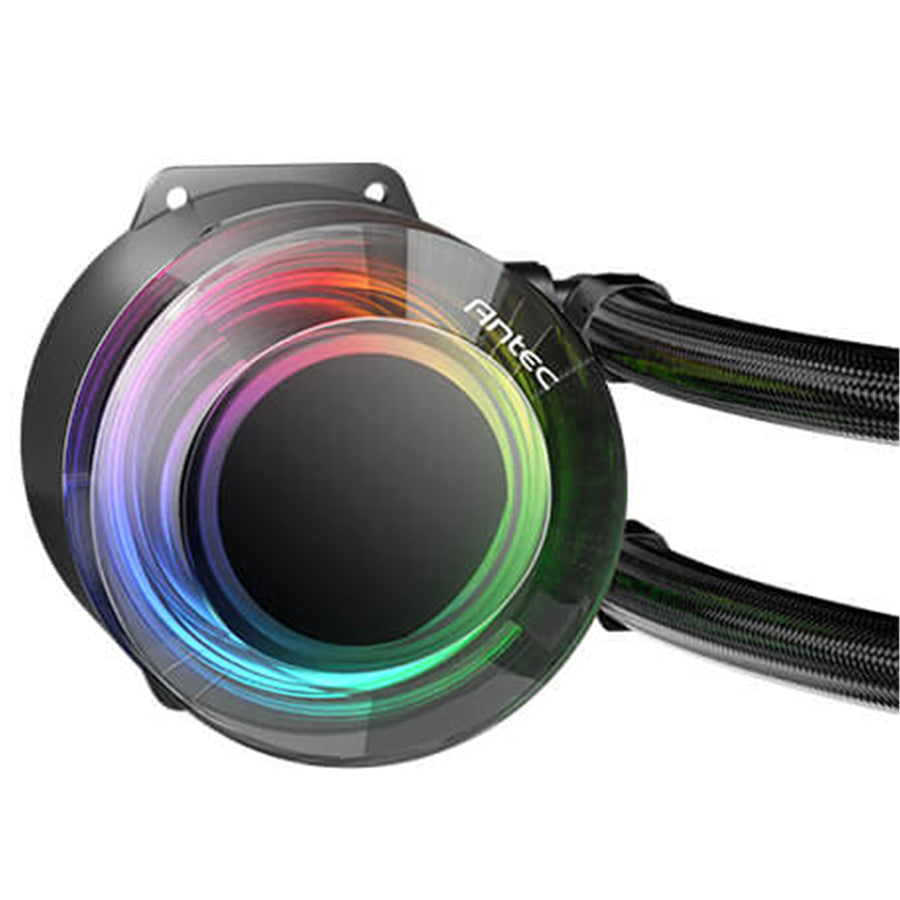

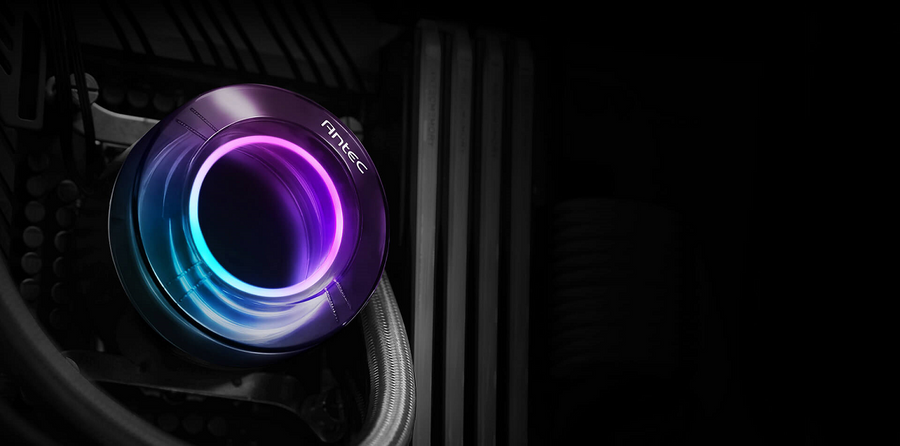

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

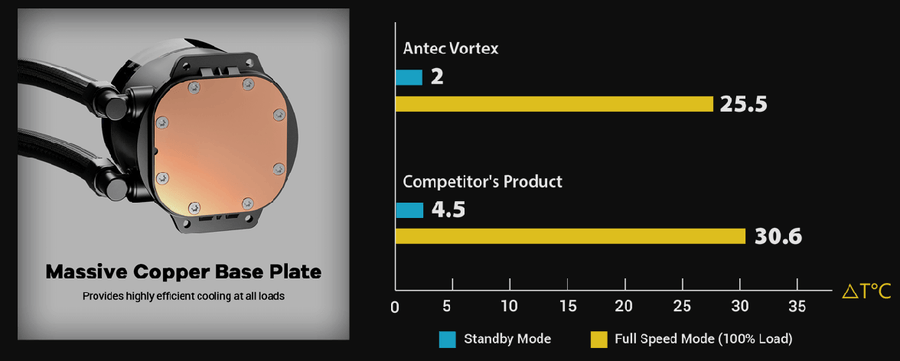

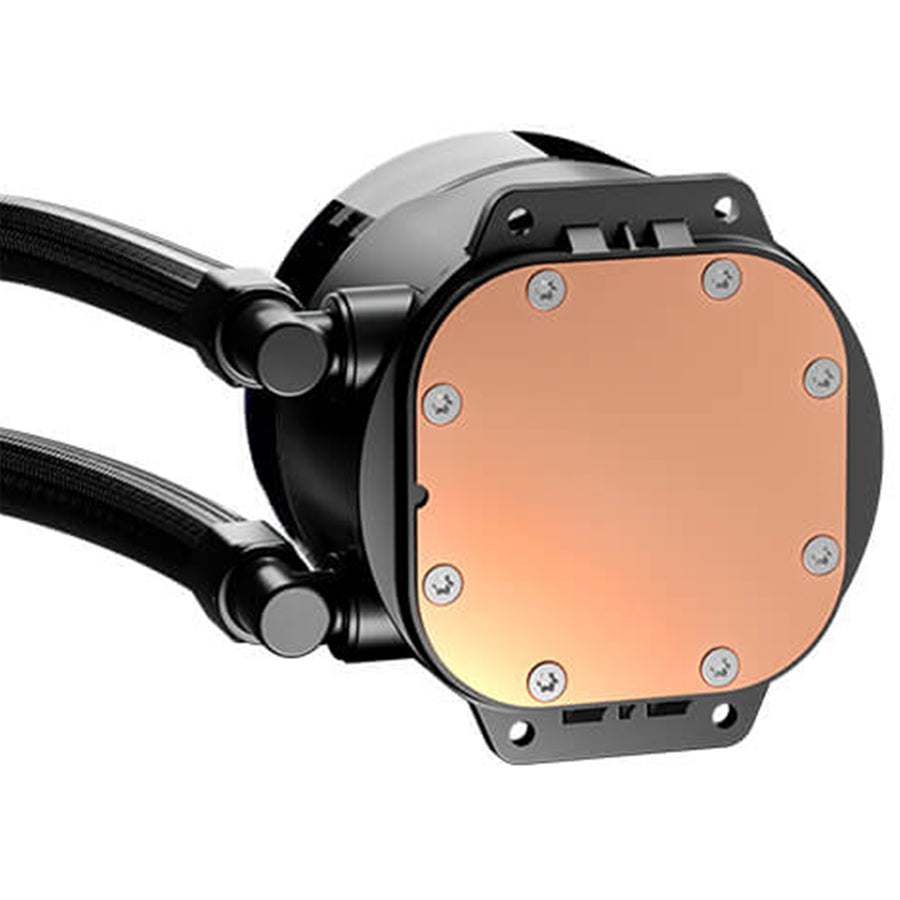

Highly Efficient Cooling Pump
Performance data tested with Vortex 360 on AMD Ryzen 5600x

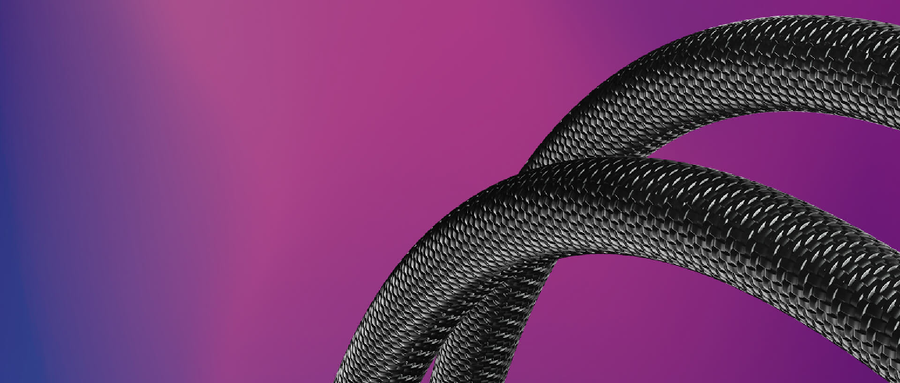

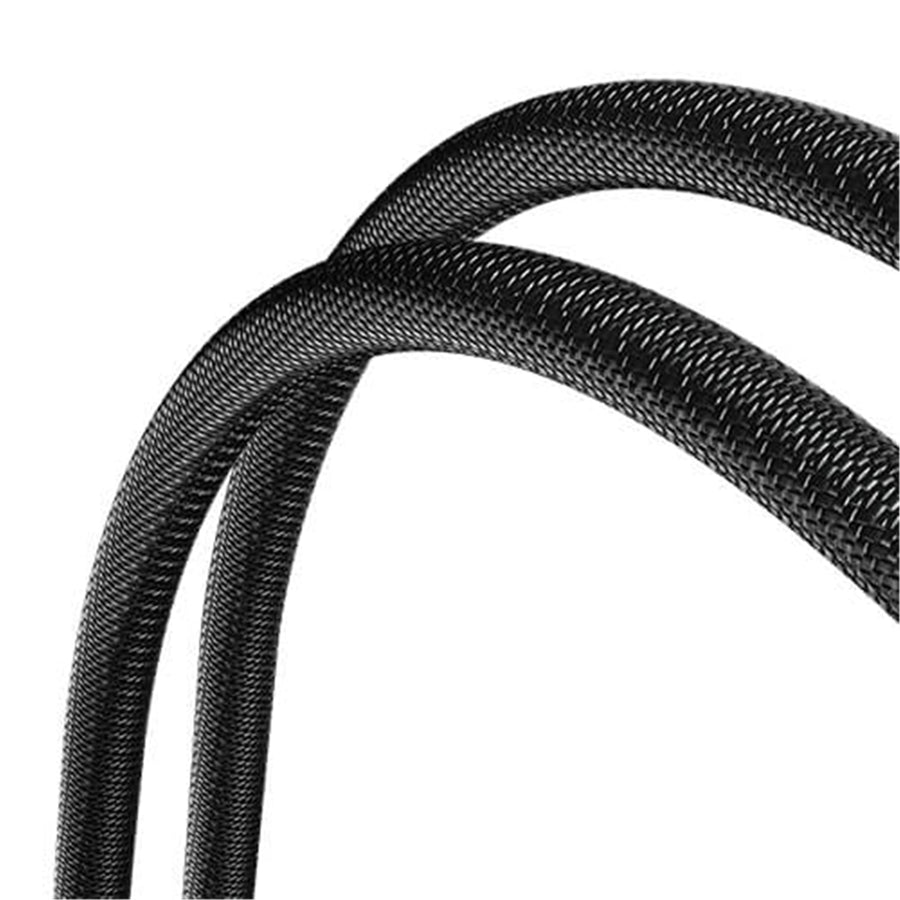

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

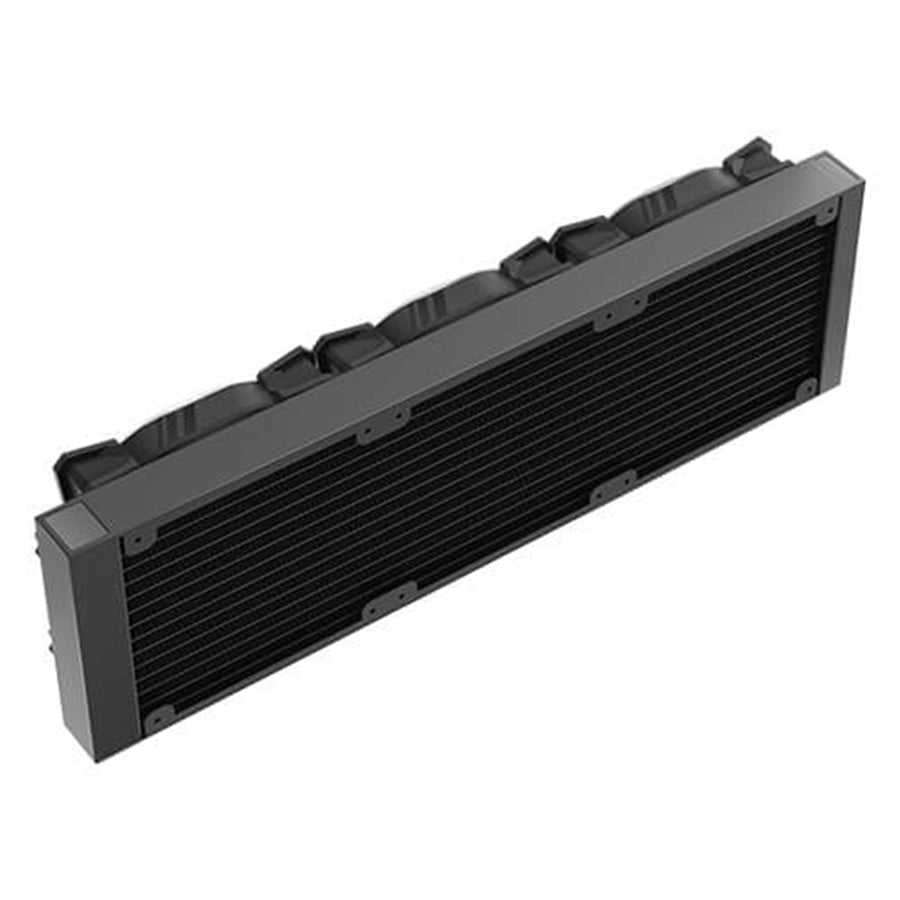

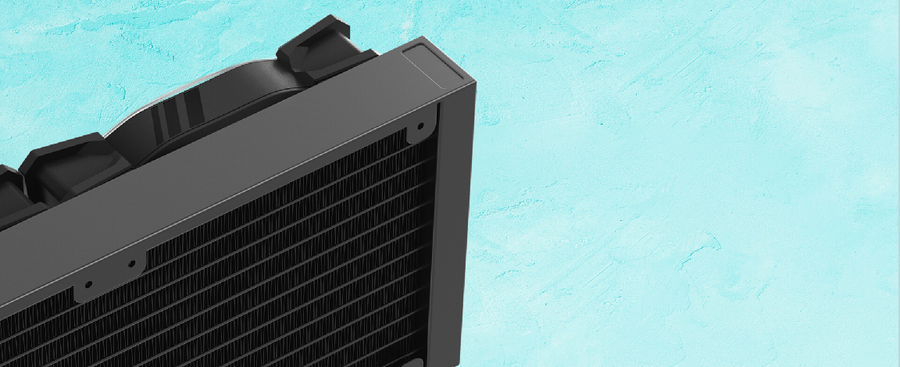

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

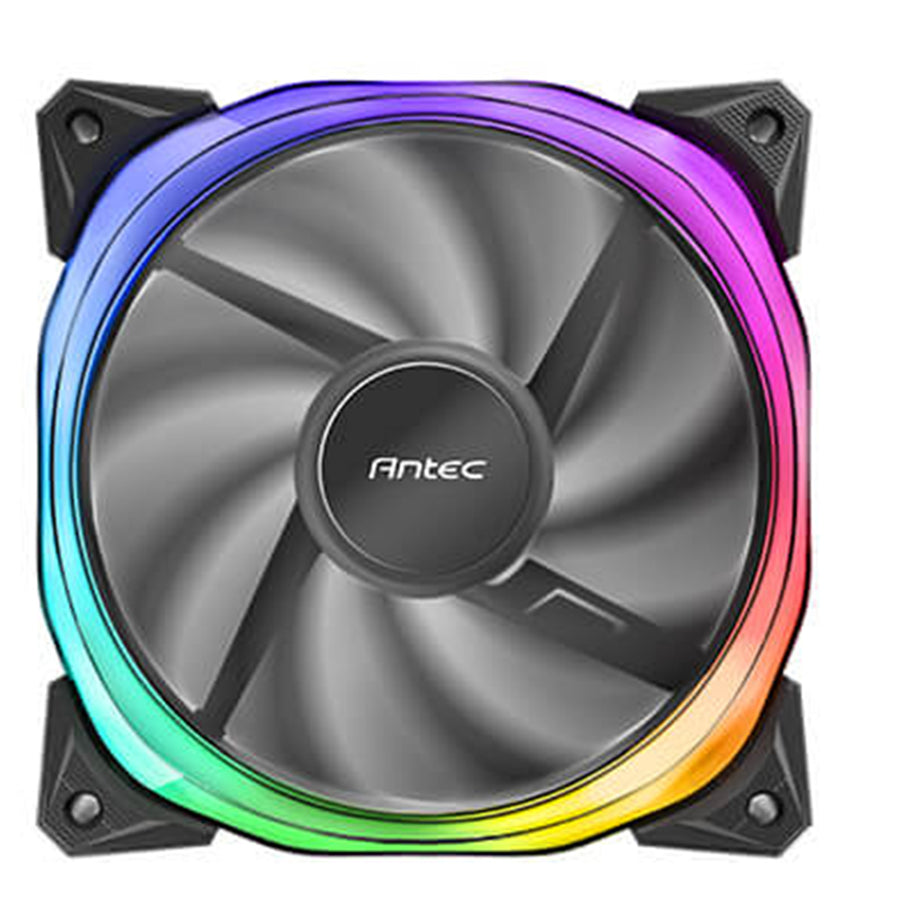

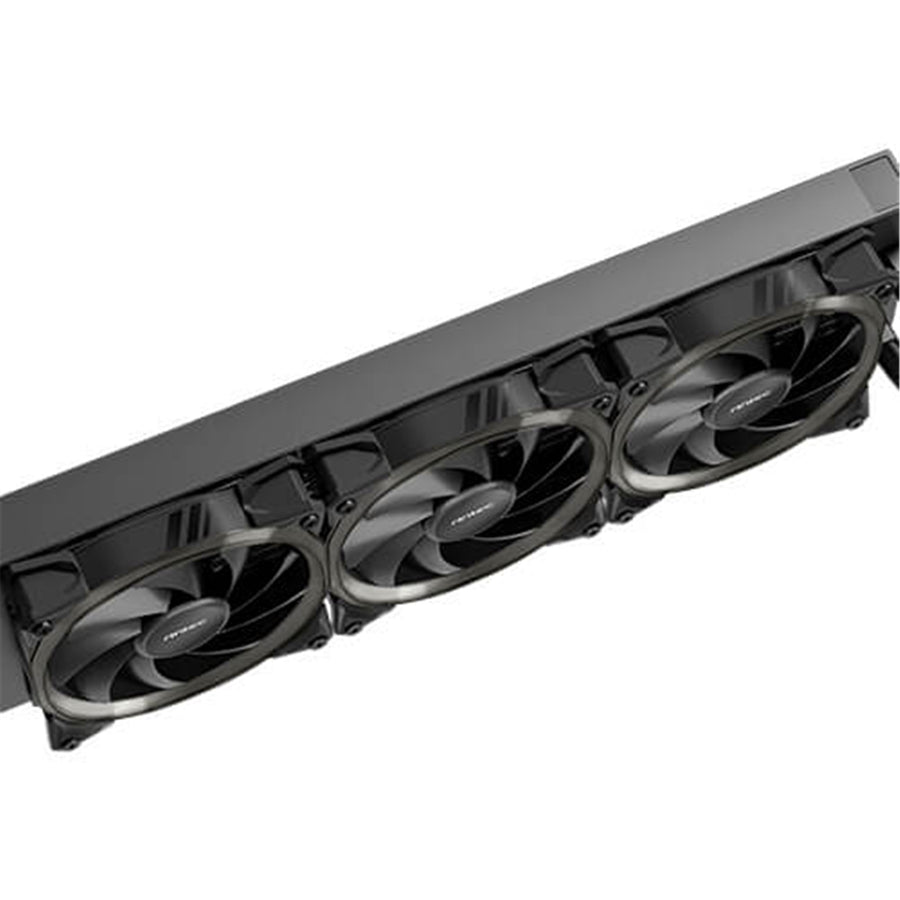

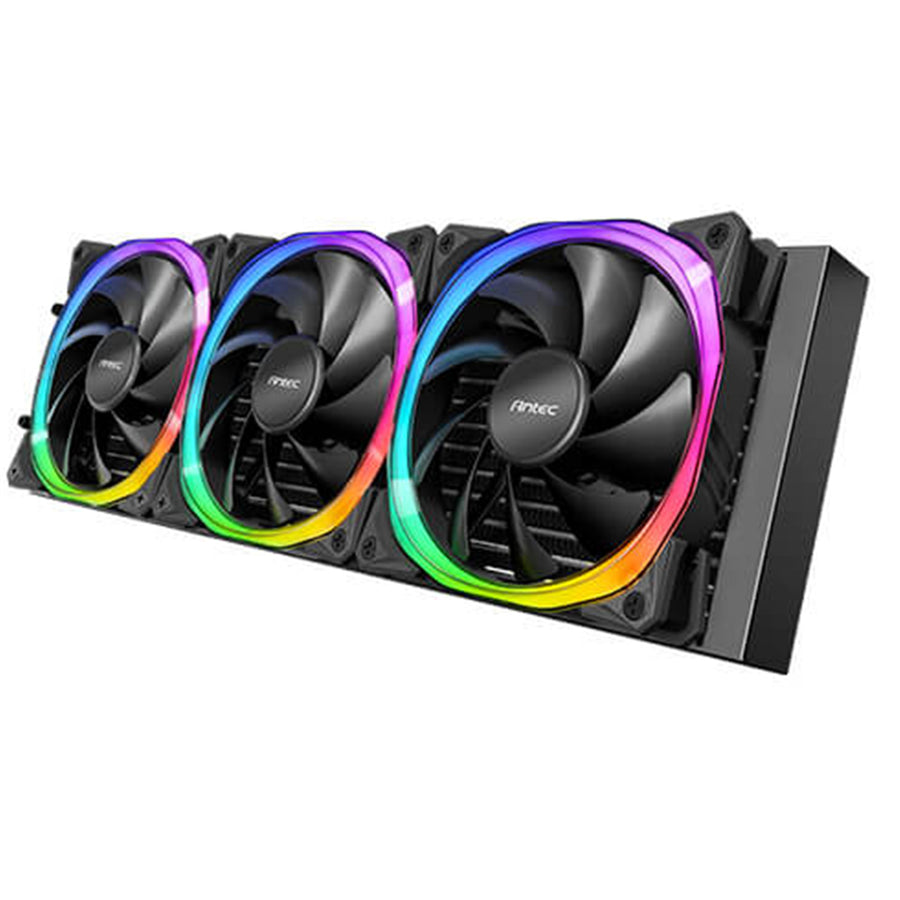

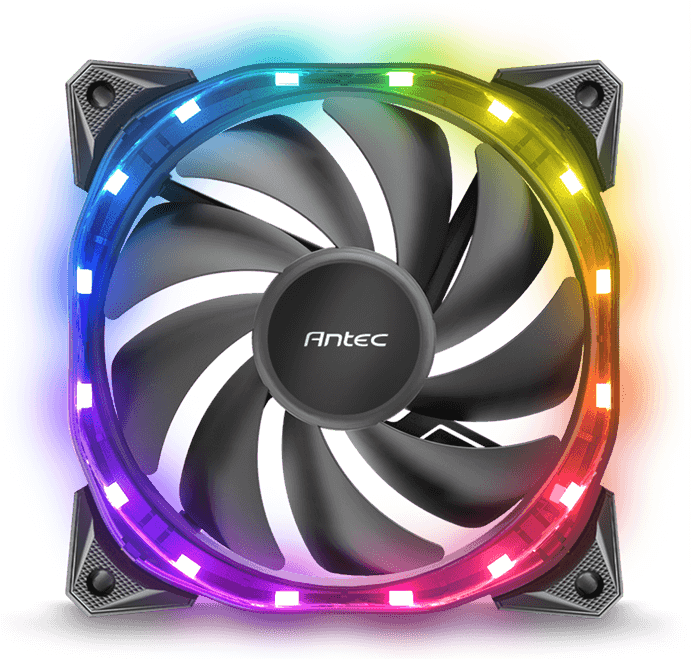

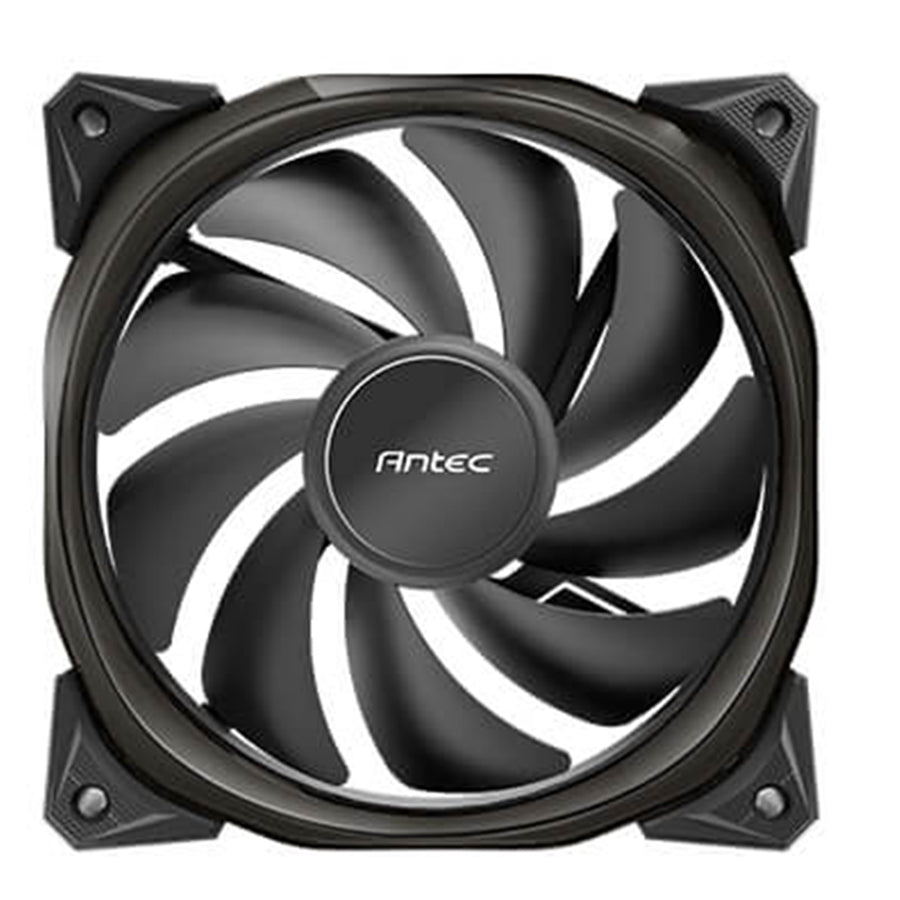

Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

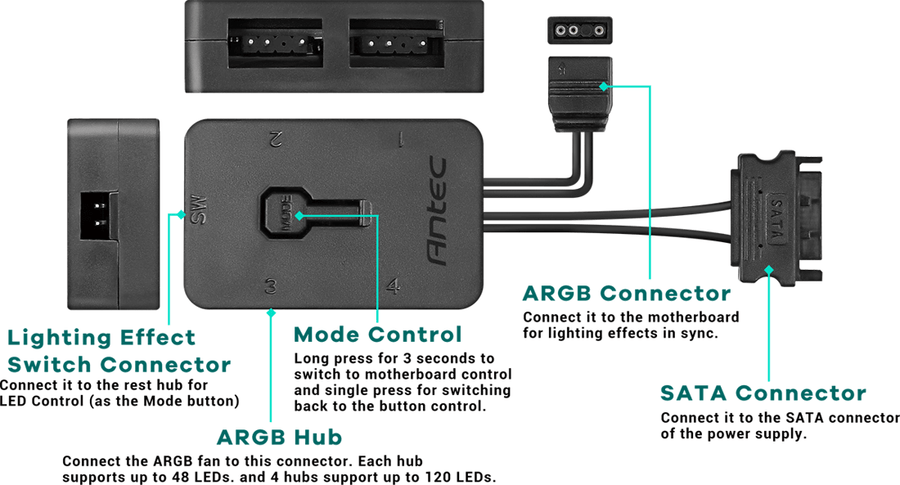

Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Specifications
Technical Specifications
| Radiator Dimensions | 397 x 120 x 27 mm |
|---|---|
| Radiator Material | Aluminum |
| Dimensions | ?67 x 48.5 mm |
| Rating Voltage | DC 12 V |
| Minimum Startup Voltage | = 5.0 V |
| Fan Speed | 2800±10% RPM |
| Rated Current | 0.25±20% A |
| Consumed Power | 3.0 W |
| Flow rate | = 1300 mL/min |
| Water Pressure | 1.4M |
| Operation Temperature | -10°C ~ +60°C |
| Noise Level | = 28 dB(A) |
| Lifespan | 40,000 hours |
| Connector | PUMP: 3-pin | LED: 3-pin |
| Model Name | Fusion 120 ARGB fan (AH12012FM1) |
| Fan Type | PWM Fan |
| Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Hydraulic Bearing |
| LED Type | Addressable RGB |

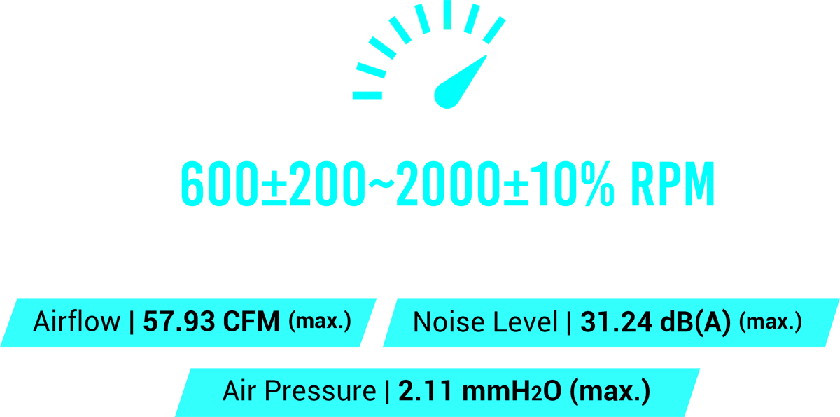

| Fan Speed | 600±200 ~ 2000±10% RPM |
| Airflow | 57.93 CFM (max.) |
| Air Pressure | 2.11 mmH2O (max.) |
| Fan Noise Level | 31.24 dB(A) |
| Lifespan | 40,000 hours |
| Connector | FAN: 4-pin PWM | LED: 3-pin |
| Rated Voltage | FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage | FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
| Rated Current | FAN : = 0.21 A | LED : = 0.58 A |
| Socket Compatibility CPU | Intel : LGA 115X / 1200 / 1700 / 20XXAMD : AM3 / AM4 / TR4 / AM5 (*Threadripper bracket not included) |
