Chief
Chief LSM1U - Large Micro-Adjustable Fixed 42-86" 90kg
$401.06
Free shipping over $299
Genuine product
7-day returns

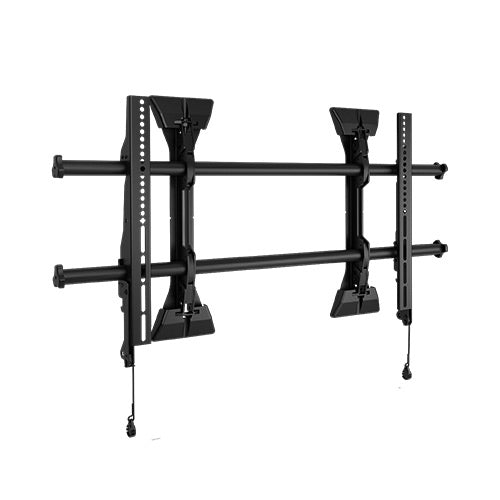

Chief LSM1U - Large Micro-Adjustable Fixed 42-86" 90kg
Overview
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Quick-Store Cords use magnets to easily store and access pull cords
Technical Specifications
| Maximum weight capacity | 90.7 |
|---|---|
| Minimum screen size | 37 |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 90.7 |
| Maximum screen size | 63 |
| Minimum VESA mount | 100 x 100 |
| Maximum VESA mount | 871 x 500 |
| Mounting type | Wall |
| Height adjustment | Y |
| Distance to the wall (max) | 51 |
| Product colour | Black |
| Certification | UL, OSHPD, TΓV |
| Orientation | Landscape (format) |
| Width | 883 |
| Depth | 53 |
| Depth (max) | 51 |
| Height | 464 |
| Package weight | 9000 |
| Package type | Box |
| Harmonized System (HS) code | 85299097 |
