-10%

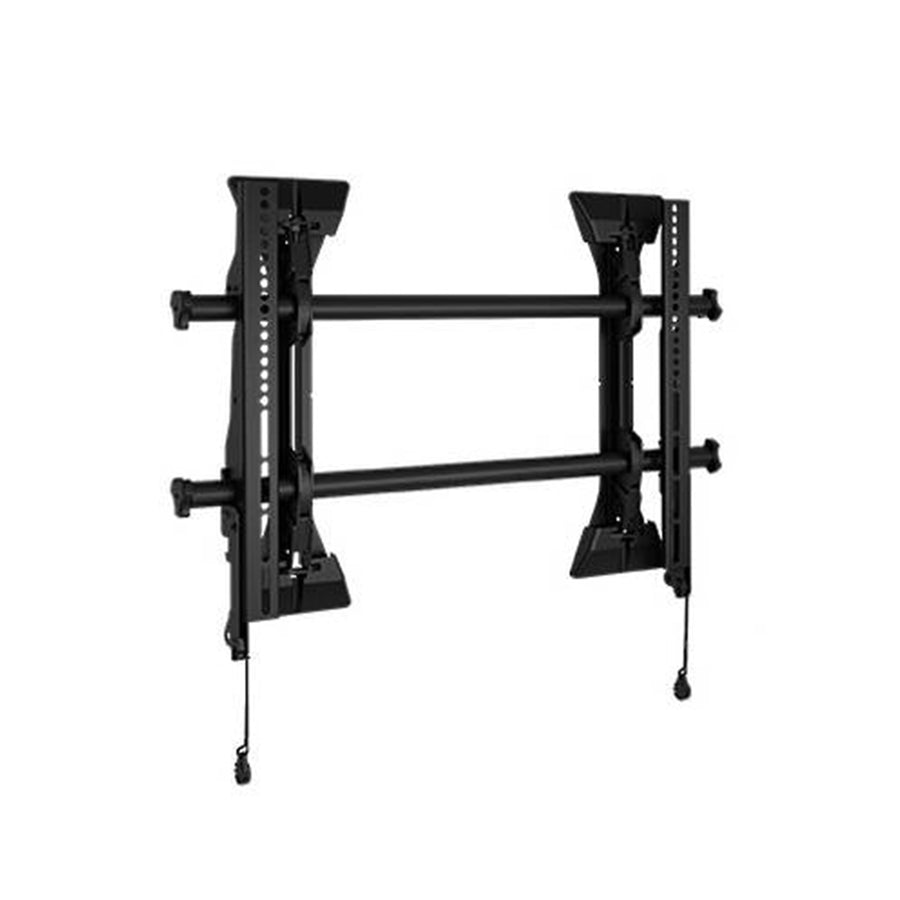

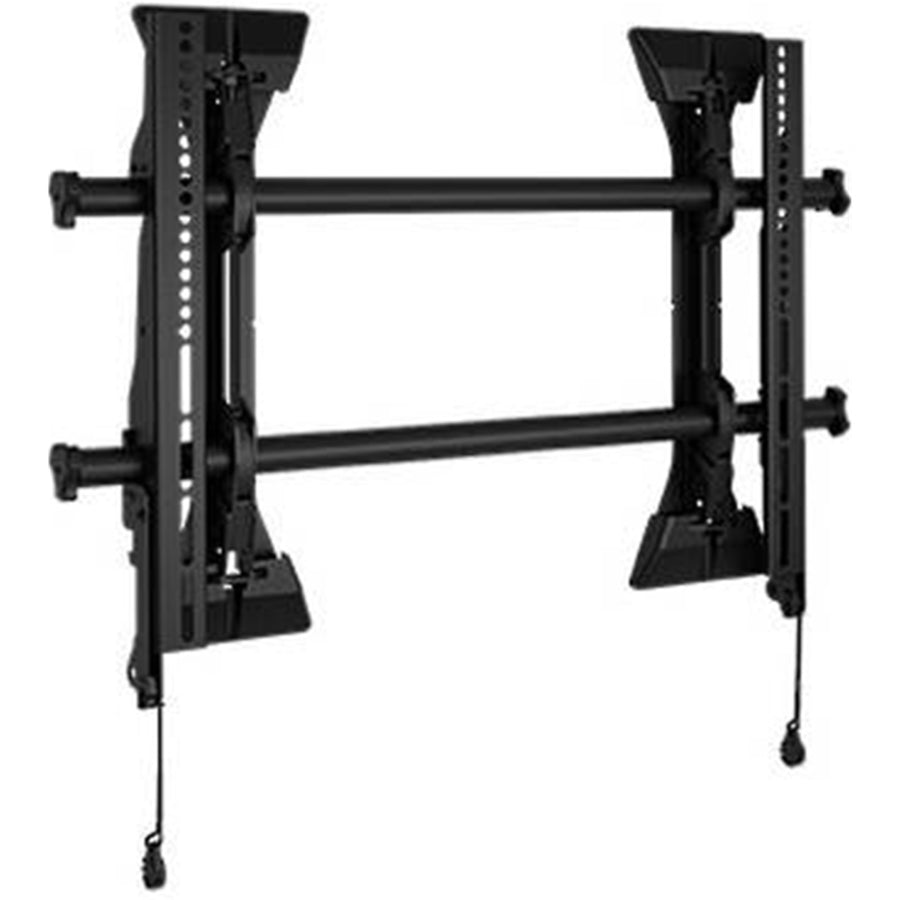

Chief MSM1U Medium Micro-Adjustable Fixed TV Mounts
Chief

Chief MSM1U Medium Micro-Adjustable Fixed TV Mounts

SKU: MSM1U ● In Stock
$4.38 $4.87
Free shipping over $299 Genuine product 7-day returns

Features

https://www.legrandav.com/Products/Mounts/Display-TV-Mounts/Fusion-Wall-Fixed-Series/MSM1U

Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.



Features:

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away


Product Specifications:

  • Certifications: TUV, UL Listed, OSHPD Approved
  • Colour: Black
  • Lateral Shift: 12.9" (328 mm)
  • Mounting Pattern Compatibility (Universal Versions):100 x 100 mm - 642 x 400 mm
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 18.3 x 25.8 x 2" (464 x 654 x 51 mm)
  • Shipping Weight: 3.6 kg (8 lbs)
  • Solution Type: Universal
  • Typical Screen Sizes: 32 - 65"
  • Wall Stud Compatibility In: 16" - 24" (406 mm - 610 mm)
  • Weight Capacity: 125 lbs (56.7 kg)
  • Application: Wall

Specifications

Technical Specifications

Certifications UL Listed, OSHPD Approved, TÜV Certified
Color Black
Lateral Shift 12.9" (327 mm)
Manual Height Adjustment 1" (25 mm)
Mounting Pattern Compatibility (Universal Versions) 100 x 100 mm - 642 x 400 mm
Overall Dimensions (H x W x D) 18.25 x 25.75 x 2" (464 x 654 x 51 mm)
Shipping Weight 8 kg
Solution Type Universal
Typical Screen Sizes 32 - 65"
Wall Stud Compatibility In 16" - 24" (406 mm - 610 mm)
Weight Capacity 125 lbs (56.7 kg)
Orientation Landscape
