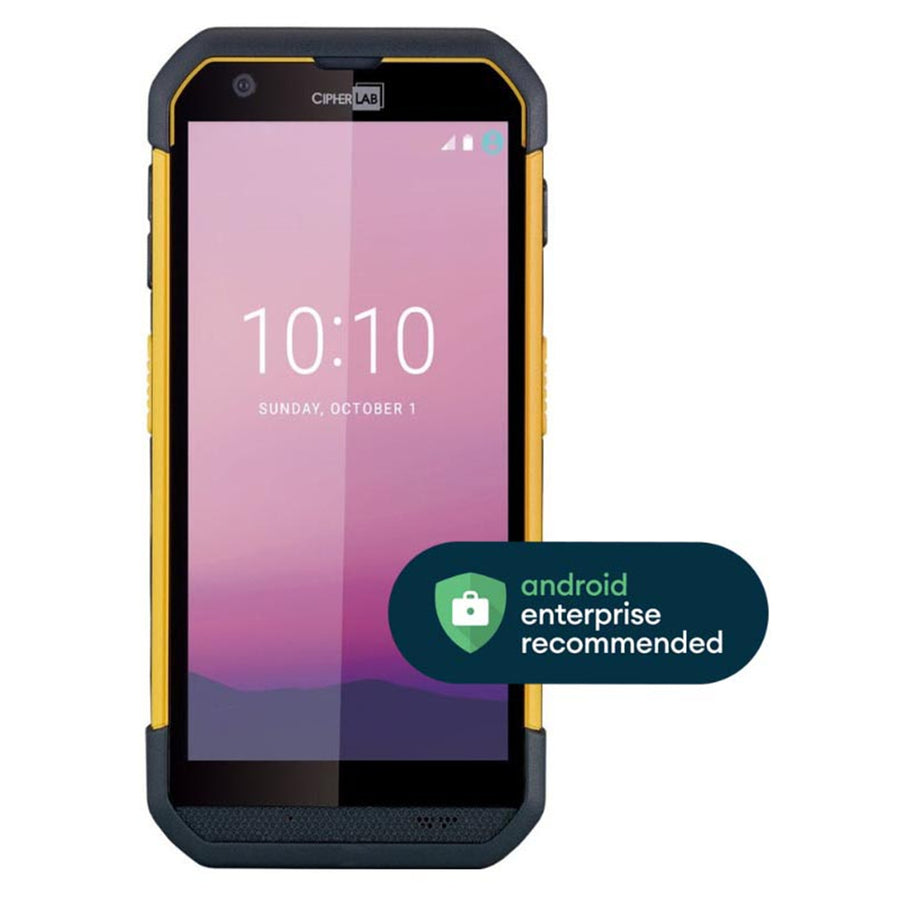

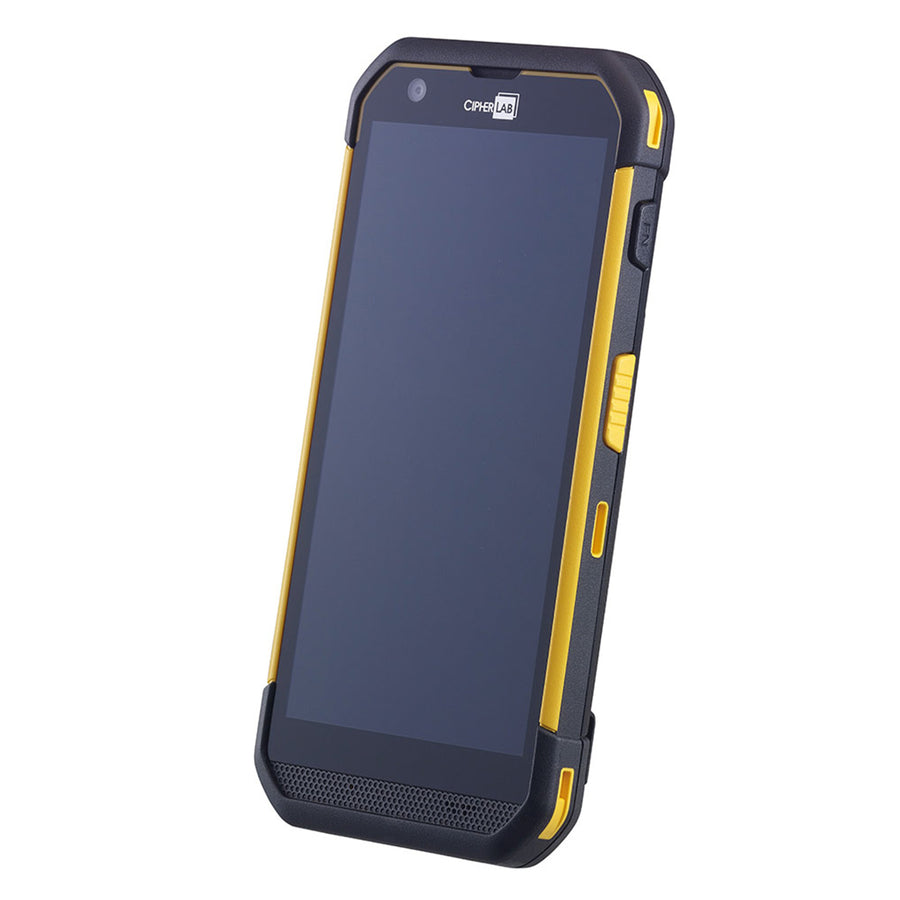

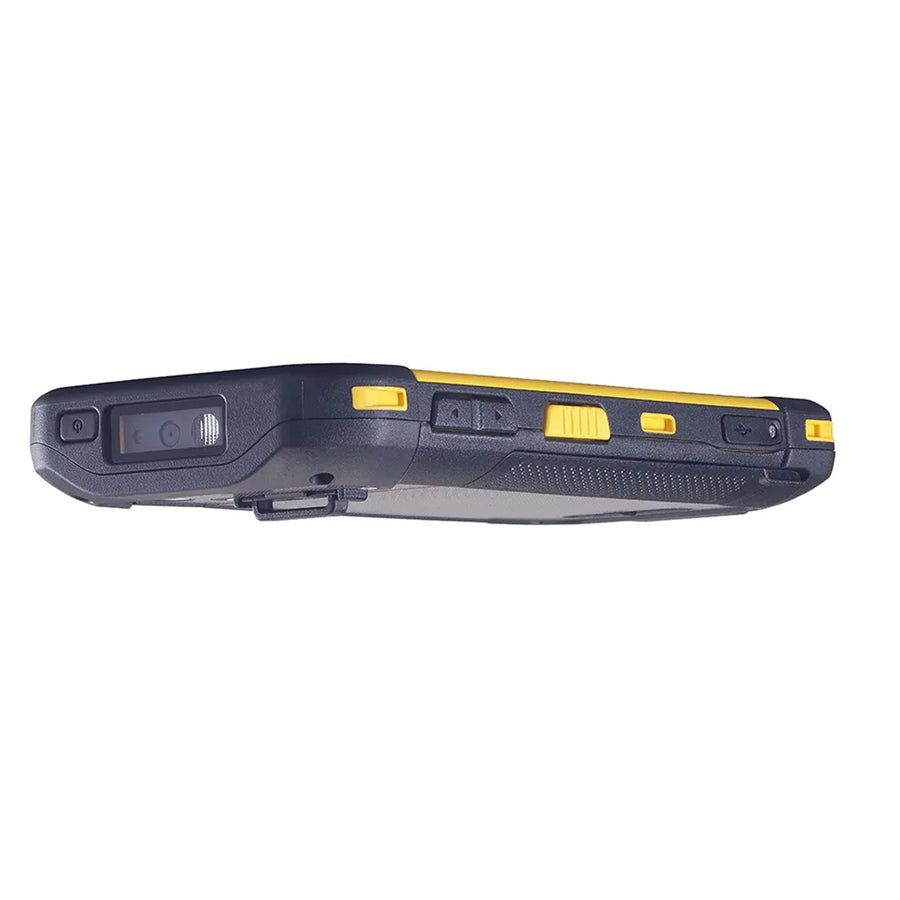

CipherLab RS36 5.5" Touchscreen Handheld Computer - 4GB RAM+64GB Android 14 - Standard Range 2D Imager (SE4770), LTE/GPS - 6000mAh Battery - USB Snap-On Kit - Screen Protector & Rubber Boot

SKU: AS36E4RF6C010 ● In Stock
$915.75$1,363.64
inc GST ▲ +GST
NZ-wide delivery, dispatched from Auckland Genuine product 7-day returns

Features

RS36 5.5" Touchscreen Handheld Computer - 4GB RAM+64GB Android 14 - Standard Range 2D Imager (SE4770), LTE/GPS - 6000mAh Battery - USB Snap-On Kit - Screen Protector & Rubber Boot *SF

RS36 Series Touch Mobile Computer

The CipherLab RS36 touch mobile computer is the upgrade to the hugely successful RS35. Built on Android 12 or Android 14, with future support to Android 14/16, the RS36 offers a familiar and user-friendly interface that shortens the learning and onboarding process. Its advanced scanning and reading capabilities, including 1D and 2D barcode scanning, HF RFID functionality and contactless NFC applications, make it ideal for retail, transportation, and logistics operations.

The RS36 features a powerful processor, high-resolution camera, Wi-Fi 6 transmission, Bluetooth 5.1 connectivity, OCR solution, sunlight-readable screen, and rugged design with IP65 and IP68 ratings. The RS36 is the perfect handheld terminal for mobile and frontline employees.

Fast Capture High-Res Photos With PDAF

The RS36's 16 MP phase-detection autofocus (PDAF) color rear camera quickly captures high-resolution images for excellent image documentation, even in moving or dim light conditions, making it ideal for proof of delivery, proof of condition, onsite technical support, and more. Moreover, the 5 MP front camera enables users to communicate in a video for improved service and productivity.

Optimize Data Capture with CipherLab's Mobile OCR Scanning Solutions

The RS36 has Optical Character Recognition (OCR) software for directly reading characters marked on products and parts, such as serial numbers and expiration dates. CipherLab's OCR technology optimizes data capture processes by streamlining various sectors, including delivery dockets data capturing, ticketing, product traceability, ID scanning, meter reading, and tire management. It reduces typing errors, simplifies processes, ensures quality control, boosts efficiency and enhances data accuracy in logistics, public transport, retail, field service and more.

Offering Flexible Data Capture Capabilities With Agile Performance

The capabilities of the RS36 versatile reader include 1D and 2D barcode scanning, HF RFID, and contactless NFC applications. With both standard and advanced range scanning, your workers can scan barcodes both near and far, thanks to the RS36's expanded working range and wide field of view.

Seamless Connection Inside and Outside Your Facilities

Mobile workers often require timely access to up-to-date information in order to maximize efficiency. The RS36 empowers them with seamless Wi-Fi connectivity, built-in Bluetooth 5.1, and Wi-Fi 6 technology for faster and more reliable network connections.

The RS36's 2×2 Multiple User Multiple Input Multiple Output (MU-MIMO) technology provides low latency and improves speed, efficiency, and security even in a dense environment with multiple connected devices. With the RS36's 4G LTE connectivity, T&L drivers and field workers can efficiently access the network outdoors or off-site, keeping mobile frontline workers connected to crucial information anytime and anywhere.

Rugged Design Protection and Sunlight Readable Display

CipherLab's RS36 is designed for maximum functionality in any environment. The interface has a large 5.5" HD+ IPS screen with a brightness of 630 nits and a panel that can be used with gloved fingers or a stylus. In addition, the device is protected from various hazards thanks to its ruggedized design. The RS36 can withstand repeated drops from a 1.5-meter height (1.8-meter with rubber boot) onto a concrete surface and remain undamaged.
The RS36 has IP65 and IP68 water/dust resistance, making it dependable in all environments. So even in rainy outdoor conditions, workers can still rely on the RS36. It also comes with Corning Gorilla Glass protection and a wide operating temperature range.

Specifications

Technical Specifications

CPU Qualcomm Octa-core 2GHz
Memory 64GB UFS Flash / 4GB LPDDR4X RAM
Operating Power Hot-swappable and rechargeable 3.85V, Li-ion 4000mAh , Extended battery: 6000mAh
Working Hours 12+ hours (standard battery), 18+ hours (extended battery)*Minimum hours under WLAN and 2D scanning per 20 seconds, LCD 50% backlight and speaker on (volume is default) at 25°C, RFID off / Bluetooth® off / IEEE 802.11 a/b/g/n/ac on. The test is based on one broadcasting packet per second.
Alert 1 tri-color LED, 1 bi-color LED, vibrator
Interface Supported 6-pin I/O & USB 3.1 Gen 1 Type-C with OTG
Display 5.5'' HD+ 720 (W) x 1440 (H), Transmissive IPS LCD, outdoor visibility (630 nit), optically bonded Touch Panel
Touch Panel Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch, allow water rejection and wet finger
Interactive Sensor Technology Light sensor, Proximity sensor, Motion sensor (Accelerometer, G-sensor), E-compass (Magnetometer), Gyroscope
Keypad 1 programmable key, volume up and down keys, left and right trigger keys, power key
Audio Speaker (80 dB at 40 cm), microphones with echo and noise cancellation
Size (LxWxH ) 165 x 76.8 x 17.9 mm
Weight 288g (with 4000mAh battery) / 319g (with 6000mAh battery)
Operating Temperature -20°C to 50°C / -4°F to 122°F*Please note: RS36 should not be used in environments with significant temperature fluctuations, such as frequent entry and exit from refrigerators or buffer zones. If used in such conditions, it is recommended to use a specialized cold storage device.
Storage Temperature -30°C to 70°C / -22°F to 158°F (without battery)
Humidity (non-condensed) Operating 10% to 90% / Storage 5% to 95%
Impact Resistance IP65 & IP68With extended battery: 1.5m multiple drops (36 times), 500 tumbles.With standard battery: 1.5m multiple drops (36 times) & MIL-810H multiple drops (26 times), 1500 tumbles.With rubber boot: 1.8m (6 ft.) multiple drops onto concrete, 6 drops on each side.
Electrostatic Discharge ± 15 kV air discharge, ± 8 kV contact discharge
