Cisco

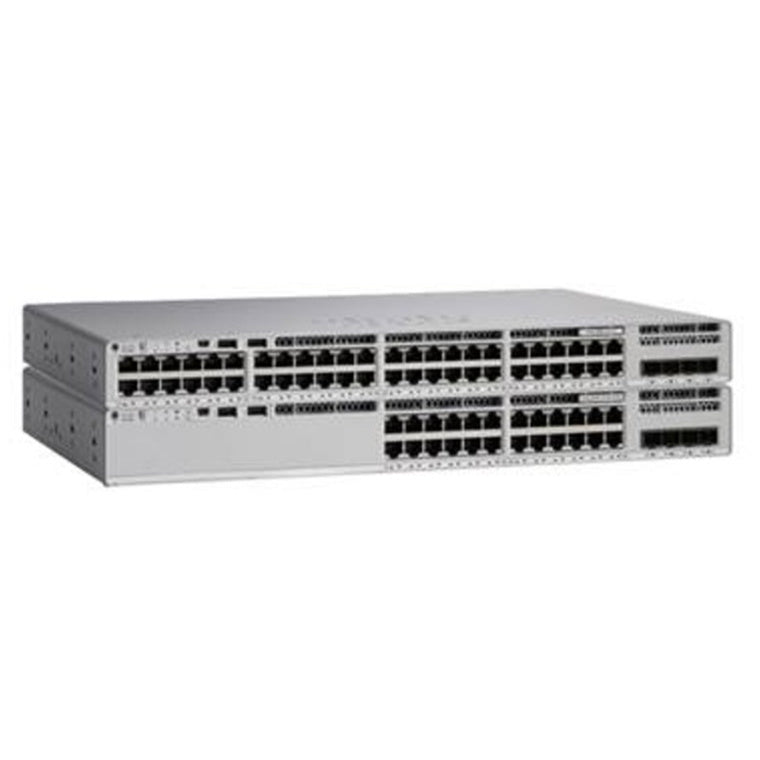

Cisco Catalyst 9200L 48 port PoE+ 4 x 10G Network Essentials

SKU: C9200L-48P-4X-E ● In Stock
$8,475.07
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

C9200L-48P-4X-E is the Catalyst 9200L 48 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

-   Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
-   Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
-   Flexible downlink options with data or PoE+
-   Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
-   UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
-   Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
-   Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
-   Advanced network monitoring using Full Flexible NetFlow
-   Cisco Software-Defined Access (SD-Access):
-   Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
-   Network assurance and improved resolution time through Cisco DNA Center™
-   Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
-   Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
-   ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Specifications

Technical Specifications

Downlinks total 10/100/1000 or PoE+ copper ports 48 ports full PoE+
Uplink configuration 4x 10G fixed uplinks
Default primary AC power supply PWR-C5-1KWAC
Fans Fixed redundant
Software Network Essentials
Stacking bandwidth 80 Gbps
DRAM 2 GB
Flash 4 GB
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Chassis Dimensions 1.73 x 17.5 x 11.3 in4.4 x 44.5 x 28.8 cm
