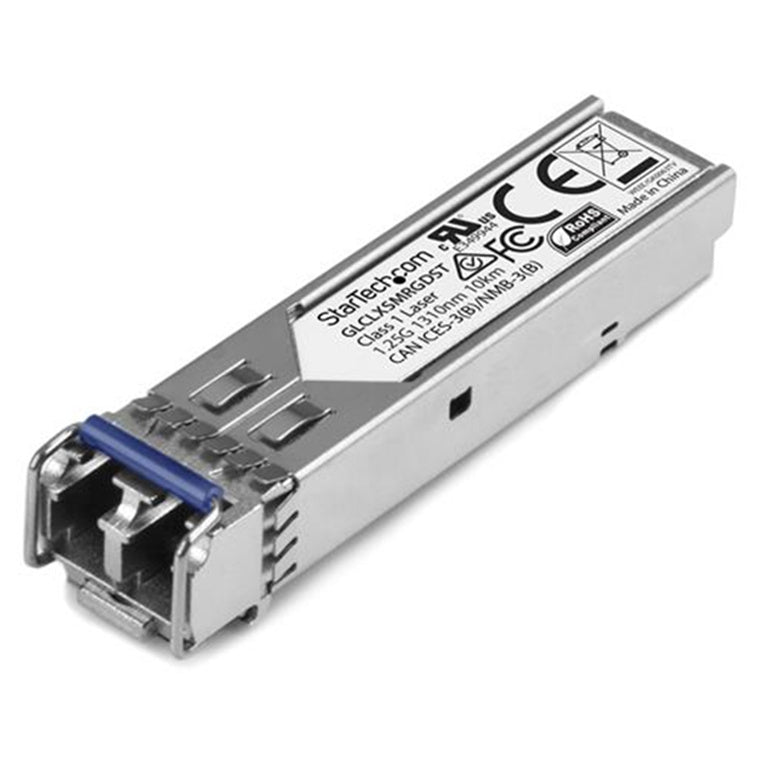

StarTech.com GLCLXSMRGDST - Cisco GLC-LX-SM-RGD 1000Base-LX SFP - SM
Features
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) |
- 100% CISCO GLC-LX-SM-RGD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- TECHNICAL SPECS: 1000BASE-LX | 1 Gbps | Single Mode (SMF) | LC Connector | 1310nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The GLCLXSMRGDST is a Cisco GLC-LX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications
- Replacing defective or damaged SFP modules in Cisco switches and routers
- Expand your network to remote segments
Specifications
Technical Specifications
| Package Quantity | 1 |
|---|---|
| Industry Standards | IEEE 802.3z 1000BASE-LX |
| Material | Aluminum |
| System and Cable Requirements | MSA or Cisco compliant SFP portFor use in Gigabit fiber networking equipment and media converters |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5~95% RH |
| Compatible Brand | Cisco |
| Shipping (Package) Weight | 1.6 oz [46.0 g] |
| Package Length | 4.4 in [11.3 cm] |
| Package Width | 3.6 in [9.2 cm] |
| Package Height | 1.3 in [3.3 cm] |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 10 km (6.2 mi) |
| Type | Single Mode |
| Wavelength | 1310nm |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| MTBF | 3,092,408 hours |
| Power Consumption (In Watts) | < 1 W |
| Color | Silver |
| Product Length | 2.2 in [56.6 mm] |
| Product Width | 0.5 in [1.4 cm] |
| Product Height | 0.5 in [1.2 cm] |
| Weight of Product | 0.6 oz [16.0 g] |
| Included in Package | 1 - SFP transceiver |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.02 kg |
