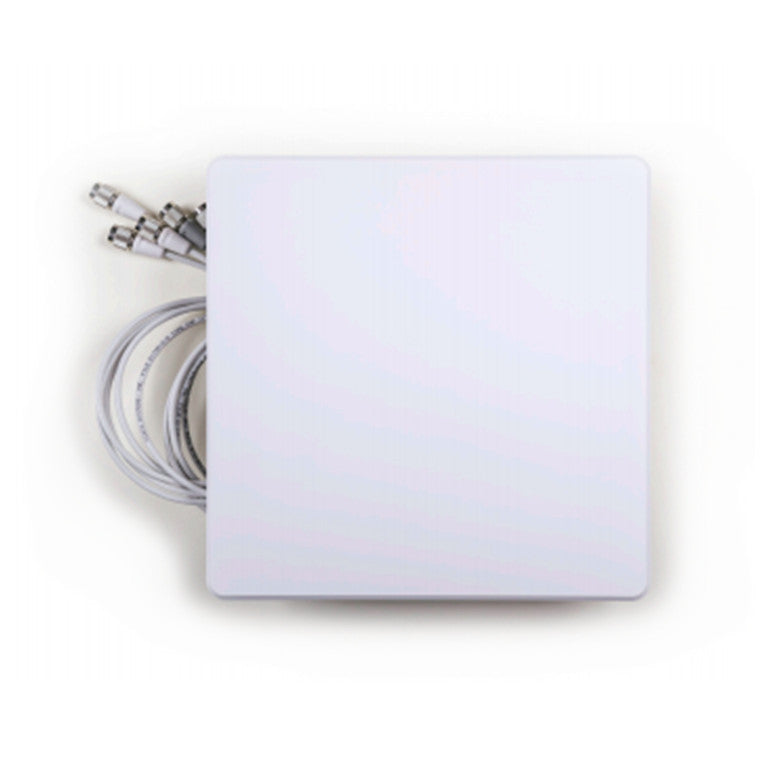

Cisco MA-ANT-3-E5
Cisco MA-ANT-3-E5
Cisco

Cisco Meraki MA-ANT-3-E5 Meraki Indoor Dual-band Wide Patch Antenna/ 5-port

SKU: MA-ANT-3-E5 ● In Stock
$713.91
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Cisco

Cisco MGBSX1 Gigabit SX Mini-GBIC SFP Transceiver

$159.13
inc GST ▲ +GST
CISCO

CISCO DBS-210-3PC-AU-K9 Cisco IP DECT Base Station 210 Series 3PCC AU and NZ

$918.26
inc GST ▲ +GST
CISCO

CISCO IW-ANT-OMV-2567-N 2.4/5/6 GHz 7dBi Omni Vertical Polarized Antenna N Conn

$688.70
inc GST ▲ +GST
CISCO

CISCO C9K-ADPT-BRKT-12T Power adaptor bracket for 12T compact switches spare

$41.74
inc GST ▲ +GST
CISCO

CISCO CAB-L240-10-SM-TM 10-ft3M Ultra Low Loss LMR240 Cable with SMA/TNC Connector

$280.00
inc GST ▲ +GST

Features

Cisco Meraki MA-ANT-3-E5 Meraki Indoor Dual-band Wide Patch Antenna/ 5-port

Specifications

Technical Specifications

Manufacturer part number MA-ANT-3-E5
Antenna type Wide Patch
Frequency range 2.400-2.500, 5.150-5.875 GHz
Gain (per antenna element) 7 dBi (2.4) / 6.3 dBi (5)
Polarization Linear, +/- 45°
Half power beamwidth / horizontal 60° / 60°
Half power beamwidth / vertical 60° / 60°
Cables AA-9303, 1M
Mounting Surface mount nut included; compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts Mounts to walls and poles
Dimensions 10.83" x 10.83" 0.93" (275 mm x 275 mm x 23.5 mm)
Weight 1.1Kg
Material PC-ABS
Temperature 32 °F to 104 °F (0 °C to 40 °C)
Humidity 5% - 93%
Connector RP-TNC
Product type Network Accessories
Weight 0.5 kg
Warranty 12 months
