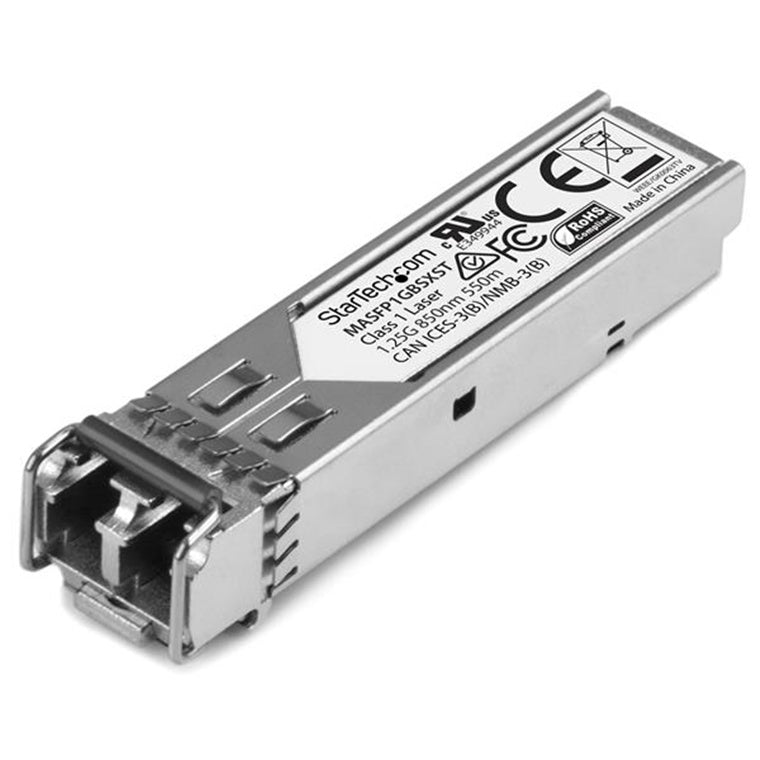

MASFP1GBSXST - Cisco Meraki MA-SFP-1GB-SX 1000Base-SX
Features
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) |
- 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 1000BASE-SX | 1 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550m (1804 ft)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications
- Replacing defective or damaged SFP modules in Cisco Meraki switches and routers
- Expand your network to remote segments
Specifications
Technical Specifications
| Package Quantity | 1 |
|---|---|
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| Material | Aluminum |
| System and Cable Requirements | MSA or Cisco Meraki compliant SFP port |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5~95% RH |
| Compatible Brand | Cisco Meraki |
| Package Height | 1.3 in [3.3 cm] |
| Package Length | 4.4 in [11.3 cm] |
| Shipping (Package) Weight | 1.5 oz [42.0 g] |
| Package Width | 3.6 in [9.2 cm] |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 550m [1804ft] |
| Type | Multi Mode |
| Wavelength | 850nm |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| MTBF | 3,381,761 hours |
| Power Consumption (In Watts) | < 1 W |
| Weight of Product | 0.5 oz [14.0 g] |
| Color | Silver |
| Product Length | 2.2 in [56.6 mm] |
| Product Width | 0.5 in [1.4 cm] |
| Product Height | 0.5 in [1.2 cm] |
| Note | For use in Gigabit fiber networking equipment and media converters |
| Included in Package | 1 - SFP transceiver |
| Brand | Cisco |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.019 kg |
| Warranty |
|---|
