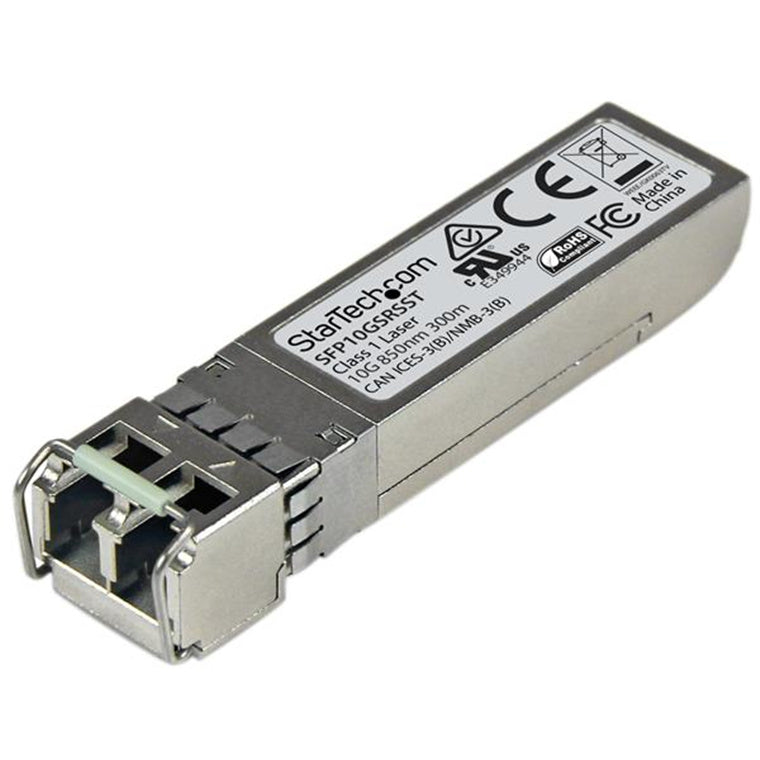

StarTech.com SFP10GSRSST - Cisco SFP-10G-SR-S Comp. SFP+ 10GbE DDM
Features
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) |
- 100% CISCO SFP-10G-SR-S COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, C9300, C3850, C9500 and others
- TECHNICAL SPECS: 10GBASE-SR | 10 Gbps | Multi Mode (MMF) | LC Connector | 850nm | Digital Diagnostic Monitoring (DDM) | Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
The SFP10GSRSST is a Cisco SFP-10G-SR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 10Gbps
- Type: Multimode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 300 m (984 ft.)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Applications
- Replacing defective or damaged SFP+ modules in Cisco switches and routers
- Expand your network to remote segments
Specifications
Technical Specifications
| Package Quantity | 1 |
|---|---|
| Industry Standards | IEEE 802.3ae 10GBASE-SR |
| Material | Aluminum |
| System and Cable Requirements | MSA or Cisco compliant SFP+ port |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5~95% RH |
| Compatible Brand | Cisco |
| WDM | No |
| Package Height | 1.3 in [3.3 cm] |
| Package Length | 4.5 in [11.4 cm] |
| Shipping (Package) Weight | 1.8 oz [50.0 g] |
| Package Width | 3.6 in [9.1 cm] |
| Maximum Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 300m [984ft] |
| Type | Multi Mode |
| Wavelength | 850nm |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 10 Gbps |
| MTBF | 1,967,709 hours |
| Power Consumption (In Watts) | < 1.3 W |
| Weight of Product | 0.7 oz [19.0 g] |
| Color | Silver |
| Product Length | 2.3 in [58.4 mm] |
| Product Width | 0.5 in [1.4 cm] |
| Product Height | 0.5 in [1.3 cm] |
| Output Voltage | 3.3V DC |
| Note | For use in 10 Gigabit fiber networking equipment and media converters |
| Included in Package | 1 - SFP+ transceiver |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.021 kg |
