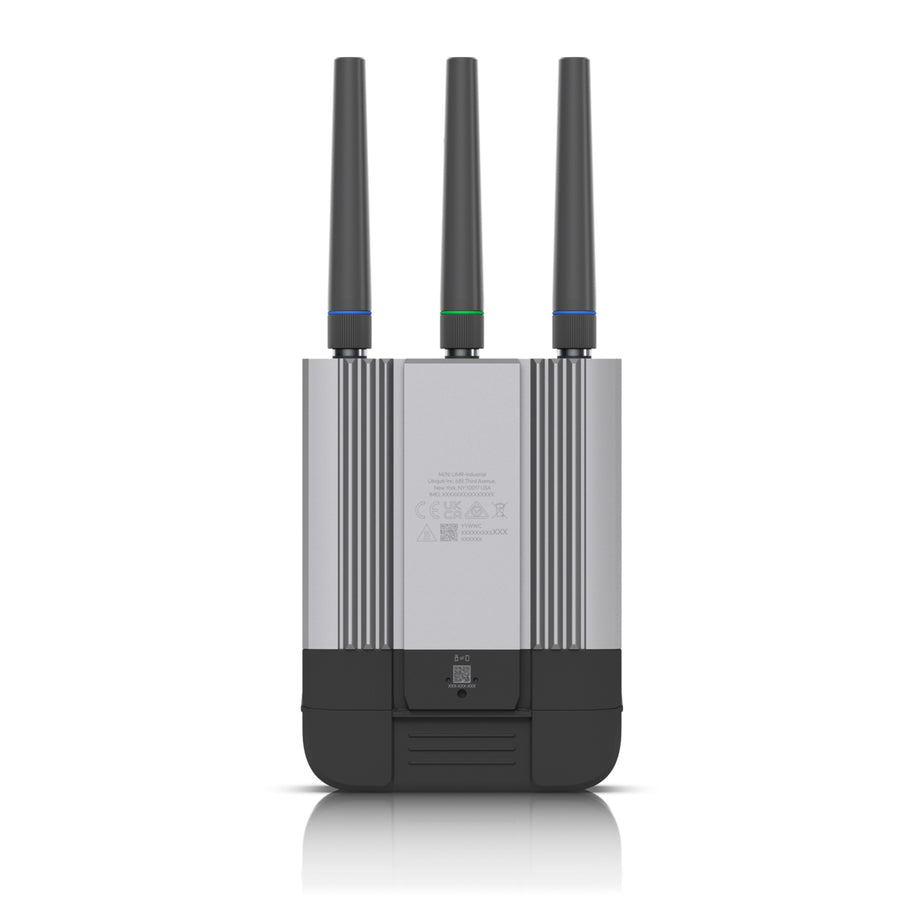

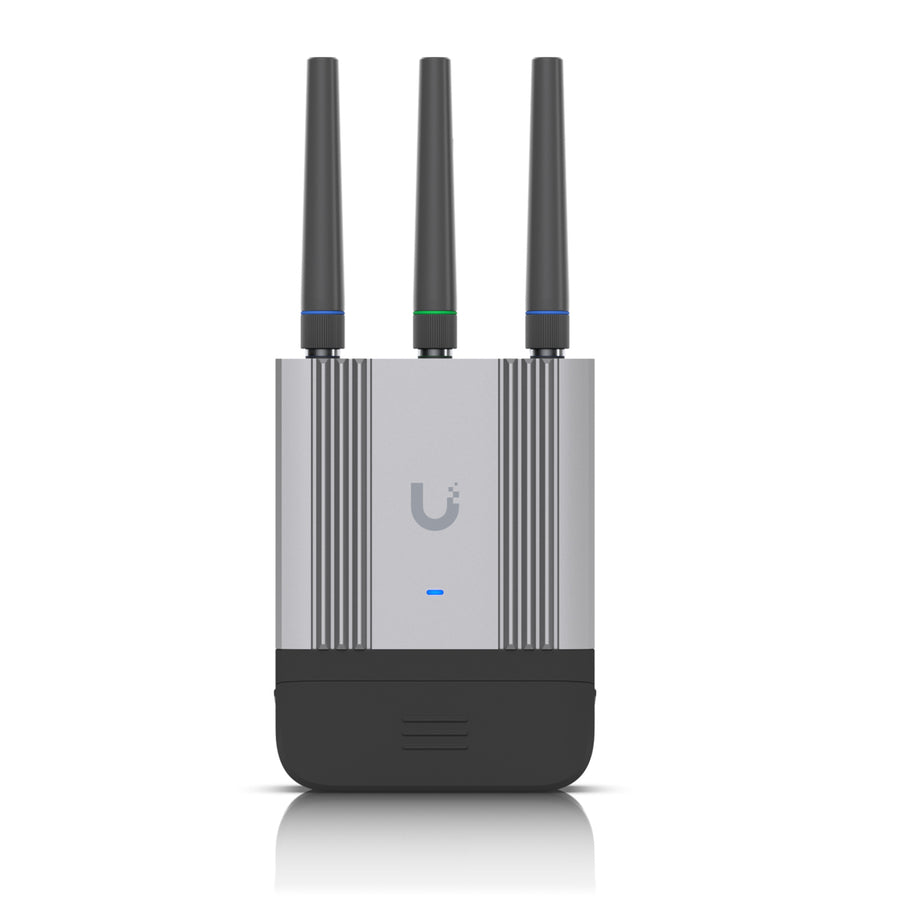

Ubiquiti UMR-INDUSTRIAL - Compact industrial LTE Cat 4 WiFi router
Ubiquiti UMR-INDUSTRIAL - Compact industrial LTE Cat 4 WiFi router
Ubiquiti UMR-INDUSTRIAL - Compact industrial LTE Cat 4 WiFi router
Ubiquiti

Ubiquiti UMR-INDUSTRIAL - Compact industrial LTE Cat 4 WiFi router

SKU: UMR-INDUSTRIAL ● In Stock
$451.15
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

- Site-to-site VPN and VPN client routing

- (2) GbE ports with (1) PoE output*

- Powered using PoE, USB Type-C, or 4-pin DC power socket

- Outdoor GPS location tracking

- Flexible wall, pole, and DIN rail mounting

- Weatherproof (outdoor exposed) with the included cover

- Optional Mobility Cloud subscription**

Specifications

Technical Specifications

Dimensions Without outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")With outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Weight Device: 360 g (12.7 oz)Device with outdoor cover: 395 g (13.9 oz)DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure material Polycarbonate, aluminum
Mount material Wall/pole mount: polycarbonateDIN rail mount: polycarbonate
Pole mount diameter 1-2" on pipe outer diameter
Wind loading 38.8 N at 200 km/h (8.7 lbf at 125 mph)
Weatherproofing Device with outdoor cover: IP66
Management interface EthernetWiFi
Networking interface (2) GbE RJ45 portsLTE Category 4 radioWiFi 4
PoE interface (1) PoE input(1) PoE output* (Max. 10W)*Requires a PoE+ switch.
Power supply UniFi PoE switch (48-54V DC)USB Type-C (5V DC)4-pin* ATX DC power socket (9-30V DC)*Pin 1 for Power + and Pin 2 for Ground -. Please refer to the Installation Guide for detailed power socket pinout.
Max. power consumption 12.5W
SIM nano-SIM (4FF)
LTE bands B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE throughput speed* Download 150 Mbps / Upload 50 Mbps*Speed depends on network coverage and performance at the device location.
WiFi standards 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
Max. WiFi TX power 22 dBm
WiFi MIMO 2 x 2
GPS Yes
Antenna SMA ports (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx(1) Mobile 2: SMA female connector, supports 1Rx only(1) GPS: SMA female connector(2) WiFi: RP-SMA female connectorsNote: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
External antennas (2) Mobile/LTE antennas with SMA male connectors(1) GPS antenna with SMA male connector(2) WiFi antennas with RP-SMA male connectors
LED Status: blue/white
Button Factory reset
Mounting DIN rail/wall/pole mount (Included)
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)

You May Also Like

TP-Link

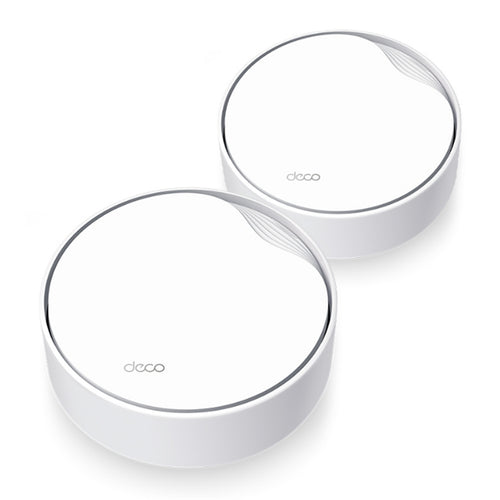

TP-Link TP LINK Deco X50-POE AX3000 Whole Home Mesh WiFi 6 System with PoE - 2-Pack
