CP-OS-00000507 - DJI OM 8 Series Tracking Kit
CP-OS-00000507 - DJI OM 8 Series Tracking Kit
Features
Includes the DJI OM Multifunctional Module and other accessories. When paired with the gimbal, this module enables subject and pet tracking, audio capture, and fill light functions[1]. Its magnetic design makes it easy to attach and detach, ensuring hassle-free use. The module also supports gesture control[2], making solo content creation more efficient.
1. These accessories contain magnets. Keep them away from magnetic cards, IC cards, pacemakers, hard disks, RAM chips, and other objects that are subject to interference.
2. If your phone uses a Lightning port, you will need to purchase the Phone Charging/Audio Recording Cable (USB-C to Lightning) separately.

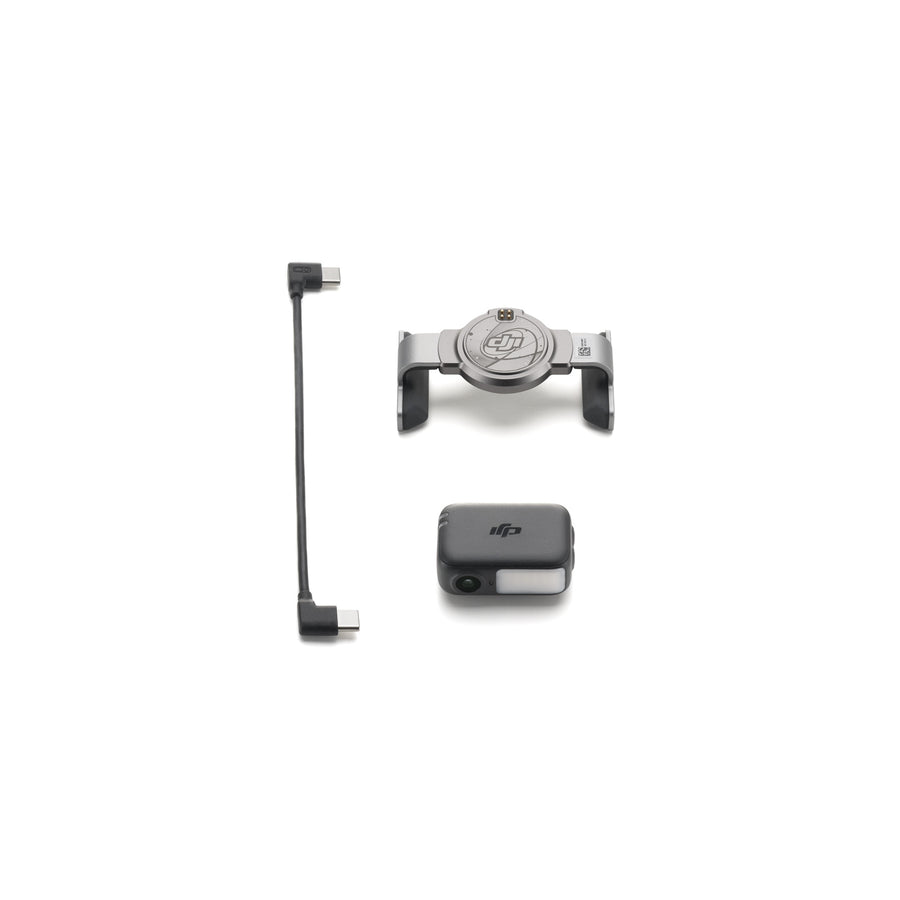

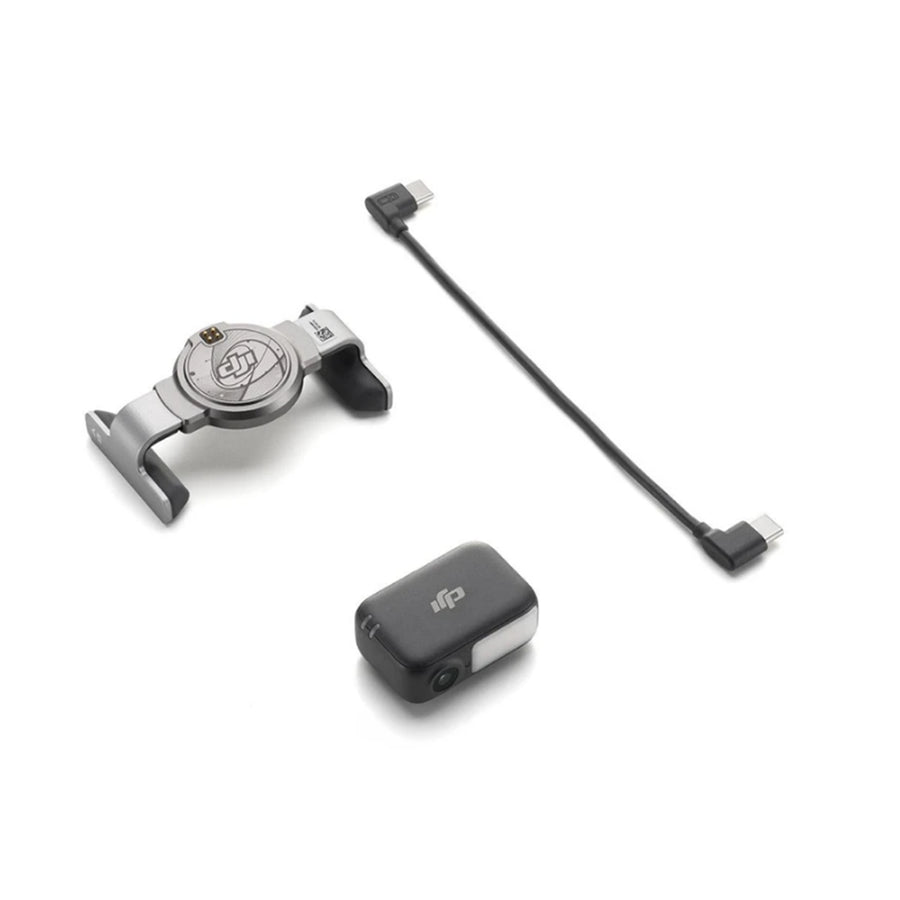

DJI OM Multifunctional Module × 1
Magnetic Phone Clamp × 1
Phone Charging/Audio Recording Cable (USB-C to USB-C, 15 cm) × 1
DJI OM Multifunctional Module
Weight: Approx. 19 g
GFSK: 2 Mbps
GFSK Transmitter Power (EIRP): <16 dBm
GFSK Operating Frequency: 2.4000-2.4835 GHz
Bluetooth Protocol: Bluetooth 5.3
Bluetooth Transmitter Power (EIRP): <16 dBm
Bluetooth Operating Frequency: 2.4000-2.4835 GHz
Fill Light Illuminance: 40 lux*
* This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.
Fill Light Color Temperature: 2500-6000 K
Magnetic Phone Clamp
Weight: Approx. 28 g
Compatible Phone Width: 67-84 mm
Compatible Phone Thickness: 6.9-10 mm
Compatible Phone Weight: 170-300 g
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Technical Specifications
| Dimensions | Unfolded: 288×107×96 mm (L×W×H)Folded: 190×95×46 mm (L×W×H) |
|---|---|
| Weight | Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module: Approx. 370 gData was collected in a controlled environment. Actual experience may vary. |
| Extension Rod | Built-in Extension RodMax Extension Length: 215 mm |
| Compatible Phone Weight | 170-300 g |
| Compatible Phone Thickness | 6.9-10 mm |
| Compatible Phone Width | 67-84 mm |
| Bottom Port | 1/4"-20 UNC port |
| Type | Li-Po 1S |
| Capacity | 3350 mAh |
| Energy | 12.06 Wh |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Operating Time | Approx. 10 hours(Measured with the gimbal balanced in a level and stationary state without additional accessories)With the Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours. Using the gimbal to charge your smartphone will shorten the gimbal's operating time. |
| Charging Time | Approx. 2.5 hours(Measured with a 10W USB-C charger) |
| Gimbal Charging Port | USB-C |
| Phone Charging | Supported |
| Controllable Range | Pan: 360° (unlimited rotation)Roll: -67° to 245°Tilt: -20° to 40° |
| Mechanical Range | Pan: 360° (unlimited rotation)Roll: -77° to 255°Tilt: -224° to 100° |
| Max Control Speed | 120°/s |
| Model | Bluetooth 5.3 |
| App | DJI Mimo |
| Dimensions | Built-in TripodLength: 67 mm |
| GFSK | 2 Mbps |
| GFSK Transmitter Power (EIRP) | <16 dBm |
| GFSK Operating Frequency | 2.4000-2.4835 GHz |
| Bluetooth Protocol | Bluetooth 5.3 |
| Bluetooth Transmitter Power (EIRP) | <16 dBm |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| Fill Light Illuminance | 40 lux |
| Fill Light Color Temperature | 2500-6000 K |
